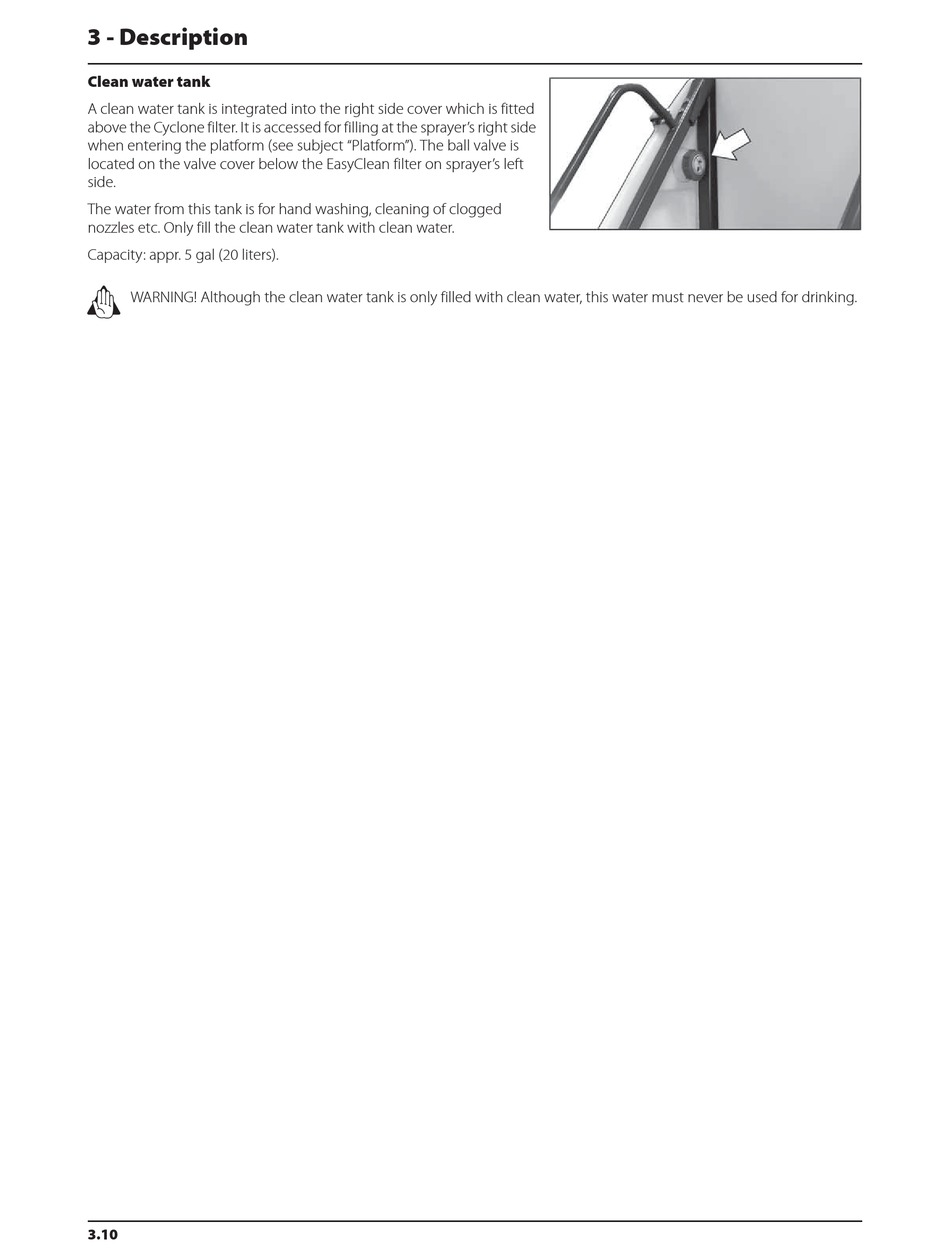

3 - Description
Clean water tank
A clean water tank is integrated into the right side cover which is fitted
above the Cyclone filter. It is accessed for filling at the sprayer's right side
when entering the platform (see subject "Platform"). The ball valve is
located on the valve cover below the EasyClean filter on sprayer's left
side.
The water from this tank is for hand washing, cleaning of clogged
nozzles etc. Only fill the clean water tank with clean water.
Capacity: appr. 5 gal (20 liters).
±
WARNING! Although the clean water tank is only filled with clean water, this water must never be used for drinking.
3.10
