8 - Technical specifications

Electrical connections

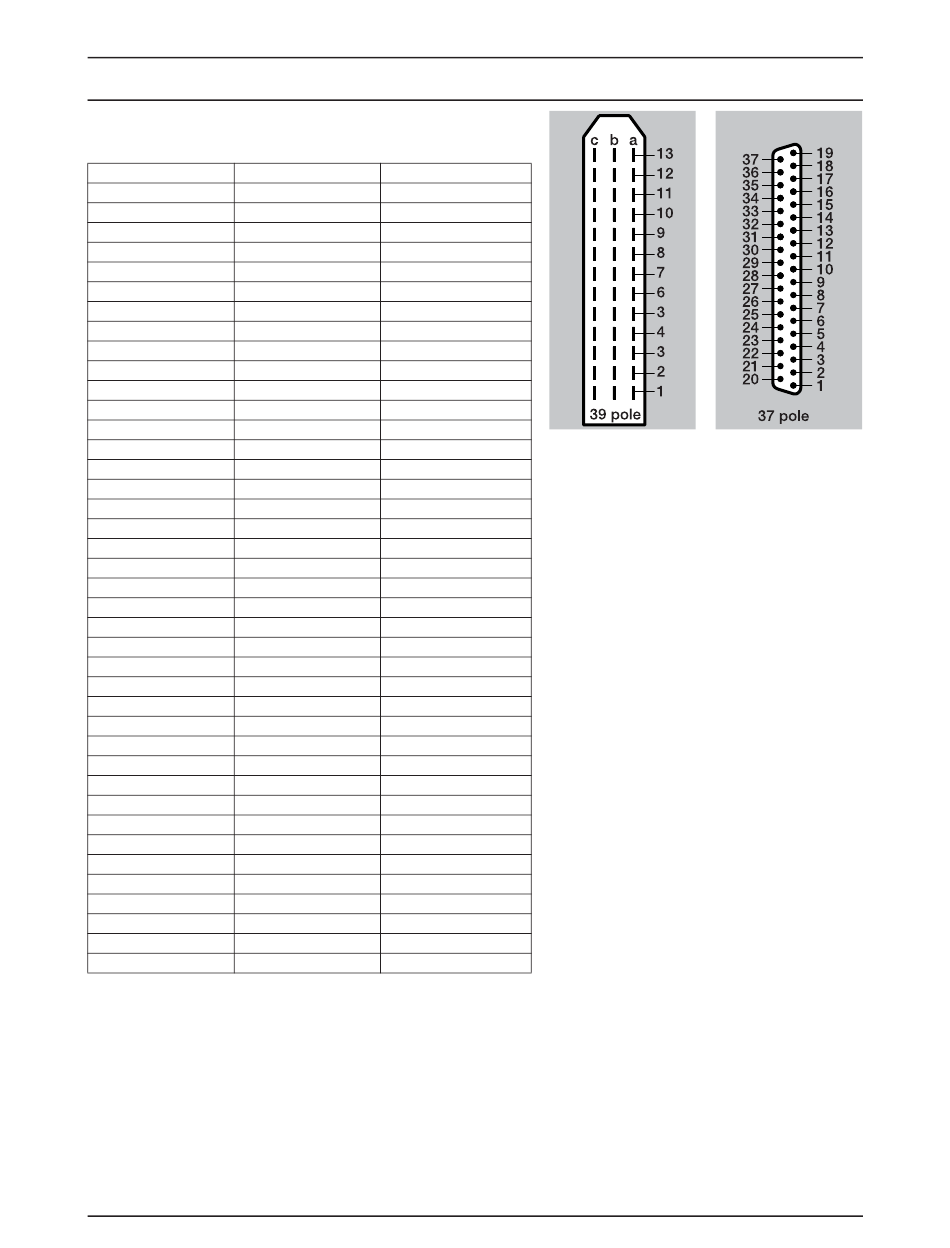

Electrical connections for SPRAY II

39 or 37 poled plug with cable.
39-pole 37-pole
1a 5
1b 6
1c 26
2a 7
2b 8
2c 25
3a 9
3b 10
3c 29
4a 11
4b 12
4c 4
5a 14
5b 15
5c 27
6a 16
6b 17
6c 13
feedback
7a 18
7b 19
7c 33
8a 37
8b 36
8c 32
9a 35
9b 34
9c not connected
10a 21
10b 22
10c not connected
11a 23
11b 24
11c 28
12a 20
12b 1
12c 31
13a 3
13b 2
13c 30
8.6
SPRAY II
S1+
S1-
End nozzle L
S2+
S2-
End nozzle R
S3+
S3-
+12V sensor
S4+
34-
PWM 1TX
S5+
S5-
GND
S6+
S6-
Optional 5 Reg.
S7+
S7-
Option 1 4-20mA
S8+
S8-
Option 2 Frq
S9+/Air angle 0-5V
S9-/Fan speed 0-5V
Option 3/Tank gauge
On/off+
On/off-
PWM Output option
Pressure+
Pressure-
Flow
Foam blop 0-5V
option 4 Rx
Speed
FM L
FM R
Gnd sensor
