User Guide
EVALUATION BOARD SOFTWARE
SOFTWARE INSTALLATION PROCEDURES
Download the
ACE
evaluation software from the EVAL-
ADAQ4001FMCZ or EVAL-ADAQ4003FMCZ evaluation kit
page. Install the software on a PC before using the
EVAL-ADAQ4001FMCZ or EVAL-ADAQ4003FMCZ kit. Download
the
ADAQ4001
or
ADAQ4003
ADAQ4001FMCZ or EVAL-ADAQ4003FMCZ page or from the plu-
gin manager in ACE.
Perform the following steps to complete the installation process:
1. Install the ACE evaluation software.
2. Install the
SDP-H1
drivers.
3. Install the ADAQ4001 or ADAQ4003 plugin. The
start
page shows the plugin installation guide.
Warning
Install the ACE software and SDP-H1 drivers before connecting
the EVAL-ADAQ4001FMCZ or EVAL-ADAQ4003FMCZ and the
SDP-H1 to the USB port of the PC to ensure that the evaluation
system is properly recognized when it is connected to the PC.
Installing the ACE Evaluation Software
To install the
ACE
evaluation software, take the following steps:
1. Download the ACE software to a Windows-based PC.
2. Double click the ACEInstall.exe file to begin the installation.
By default, the ACE software is saved to the following location:
C:\Program Files (x86)\Analog Devices\ACE.
3. A dialog box opens asking for permission to allow the program
to make changes to the PC. Click Yes to start the installation
process.
4. In the ACE Setup window, click Next > to continue the installa-
tion (see
Figure
8).

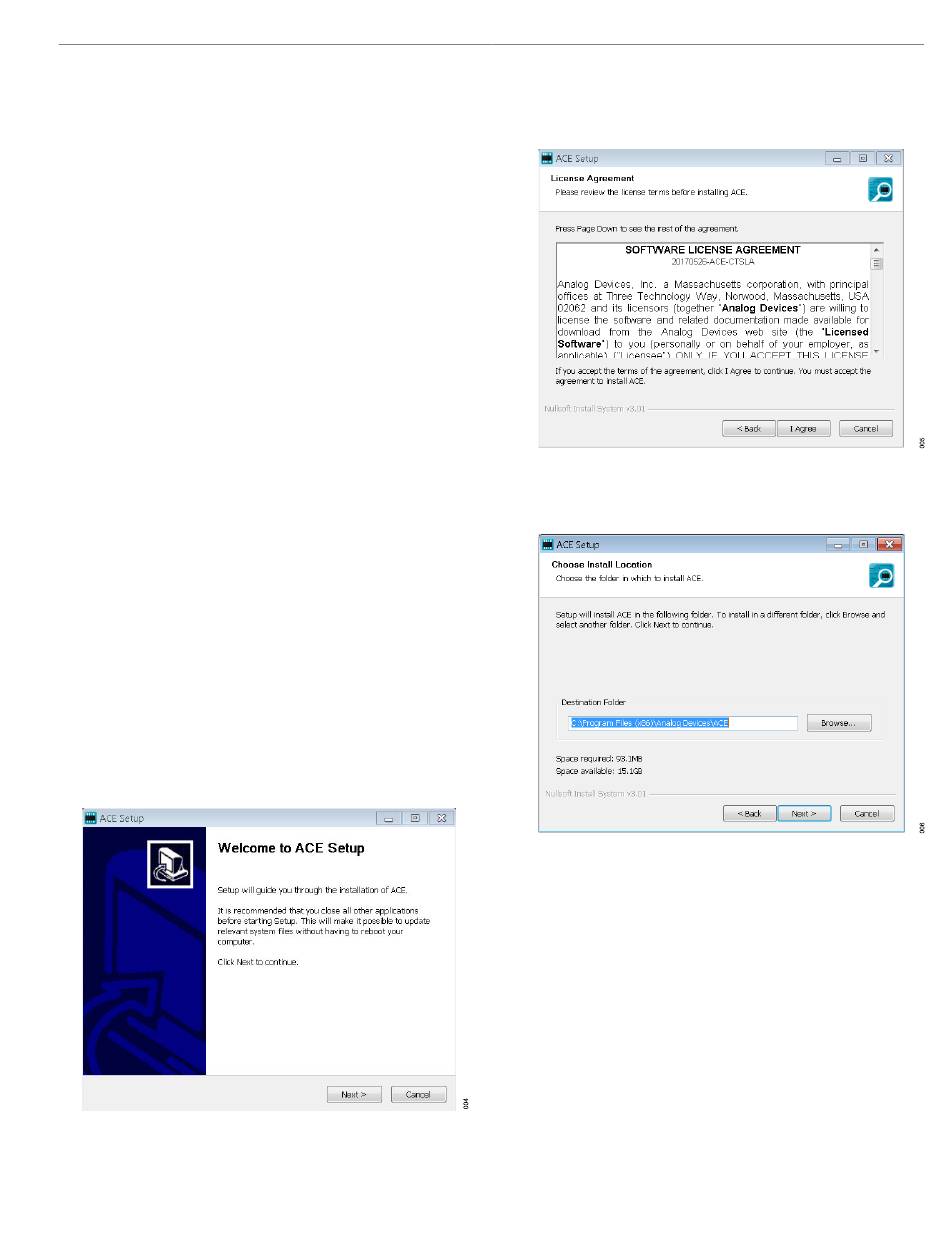

Figure 8. ACE Software Install Confirmation
analog.com
ACE plugin from the EVAL-
ACE Quick-
5. Read the software license agreement and click I Agree (see-
Figure
9).
Figure 9. License Agreement
6. Click Browse... to choose the install location and then click
Next > (see
Figure
10).
Figure 10. Choose Install Location
7. The ACE software components to install are preselected. Click
Install (see
Figure
11).
UG-1533
Rev. A | 8 of 30
