EVALUATION BOARD HARDWARE
LINK CONFIGURATION FOR DIFFERENT GAIN
OPTIONS
Multiple link options must be set correctly for the appropriate gain
configuration of the ADAQ4001
different gain positions for the links of the
and EVAL-ADAQ4003PMDZ.

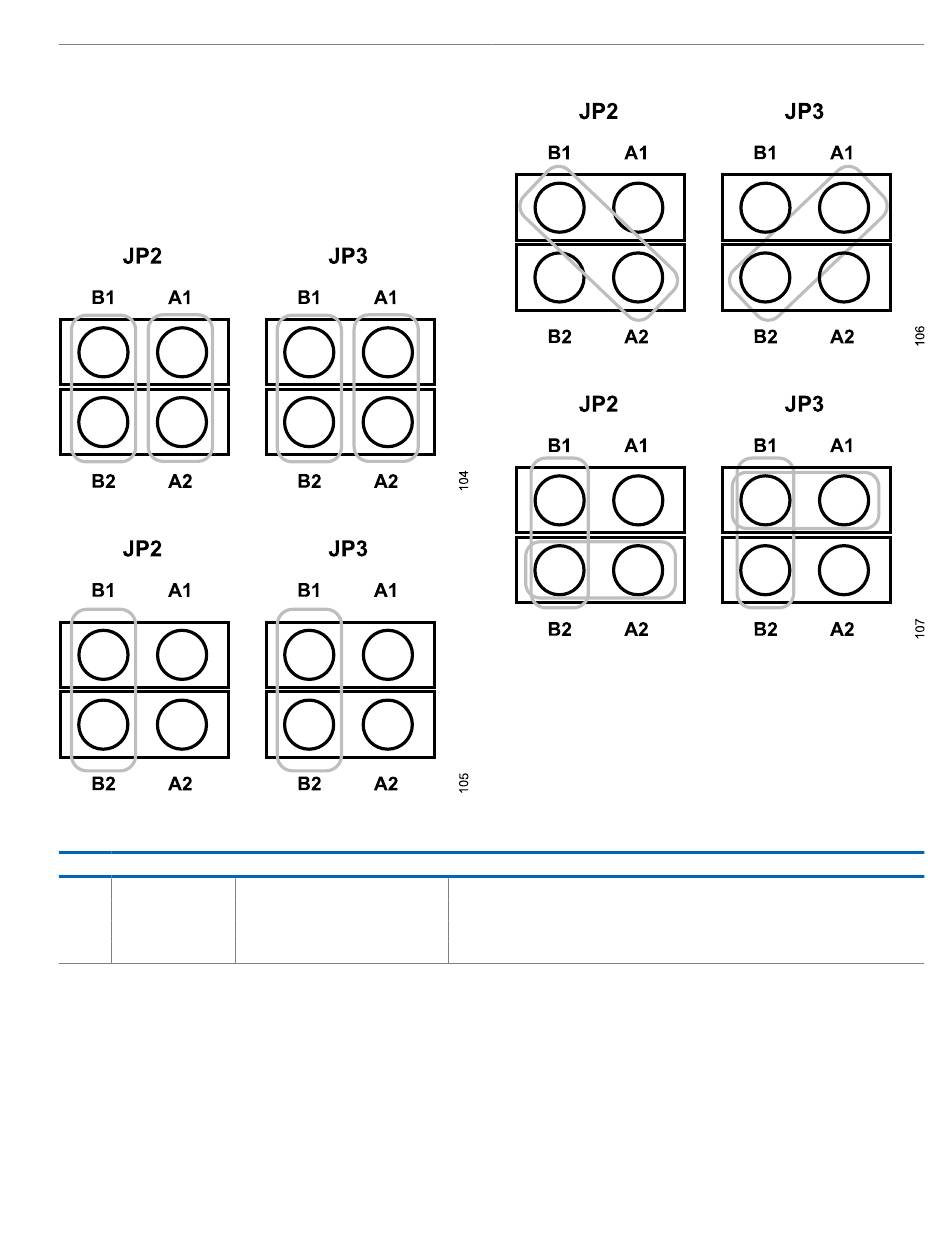

Figure 4. Gain = 0.454
Figure 5. Gain = 0.9
Table 3. The Different Gain Positions Available for the Links of the EVAL-ADAQ4001PMDZ or EVAL-ADAQ4003PMDZ
Gain Input Range (V)
0.454 ±11
0.9 ±5.5
1 ±5
1.9 ±2.6
analog.com
or ADAQ4003. Table 3 details the
EVAL-ADAQ4001PMDZ
Input Signal on Pins
R1K1− and R1K1+
R1K1− and R1K1+
R1K− and R1K+
R1K1−, R1K−, R1K1+, and R1K+
Test Conditions
For JP2, tie A1 to A2 and tie B1 to B2, and for JP3, tie A1 to A2 and tie B1 to B2 (see
For JP2, tie B1 to B2, and for JP3, tie B1 to B2 (see
For JP2, tie A2 to B1, and for JP3, tie A1 to B2 (see
For JP2, tie B1 to A2 and B2, and for JP3, tie B2 to A1 and B1 (see
UG-1533
Figure 6. Gain = 1
Figure 7. Gain = 1.9
Figure 5).
Figure 6).
Figure 7).
Rev. A | 7 of 30
Figure 4).
