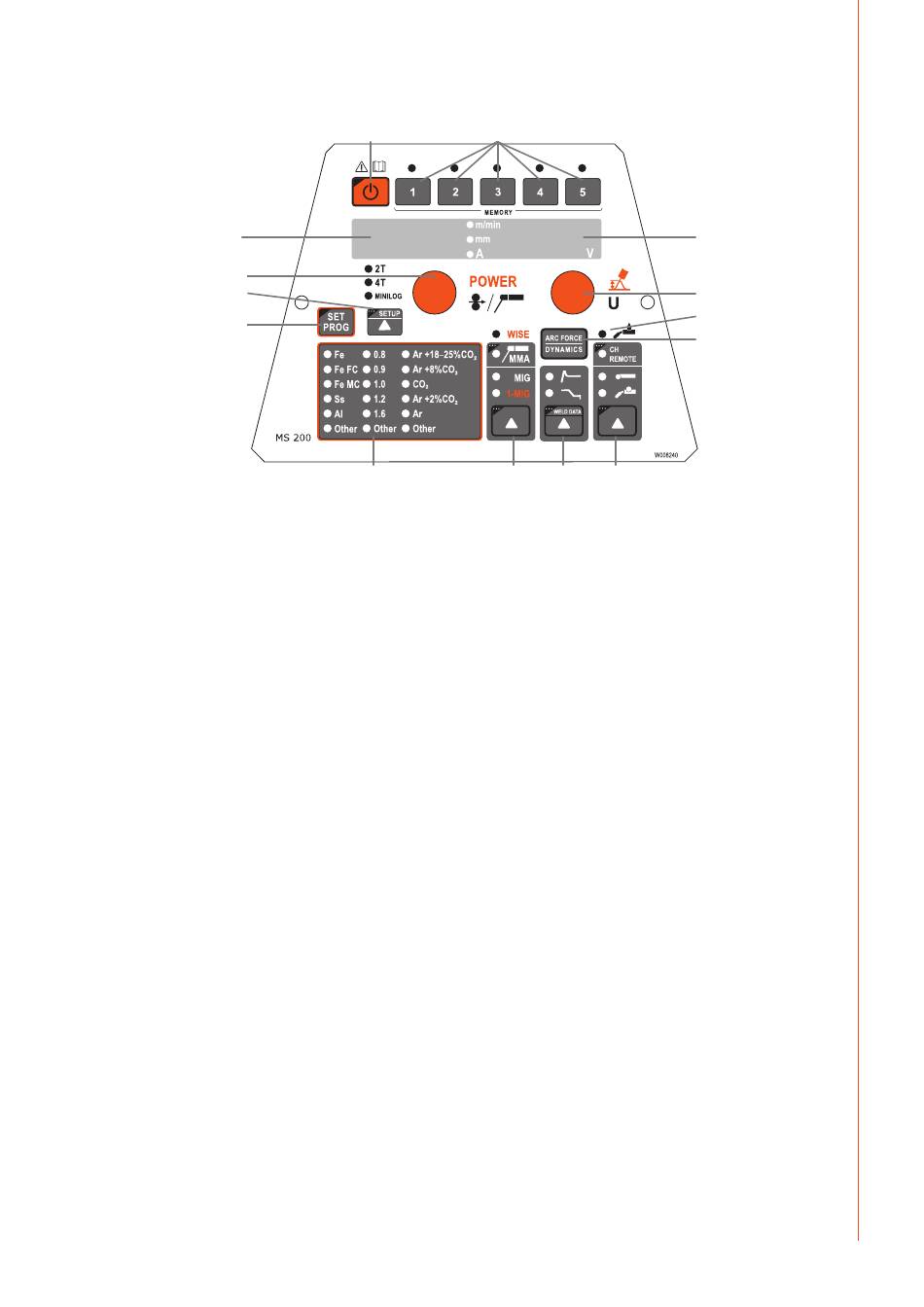

Functions of MS 200 and MS 300 panels

3.
4.
5.
6.
1. ON/OFF button
2. Memory channels for welding parameters (short press selects, long press saves)
3. a) Wire feed speed/welding current/sheet thickness display
b) Selected SETUP entry display
4. a) Adjustment of wire feed speed
b) Adjustment of welding power setting 1-MIG/WiseRoot/WiseThin **
c) Adjustment of MMA current
d) Selection of SETUP parameter
e) Selection of 1-MIG/WiseRoot/WiseThin welding program (material group) **
5. a) Selection of switching logic: 2T/4T/4T Minilog *
b) Long press: Setting the basic parameters (SETUP)
6. a) 1-MIG/WISE synergic welding program check **
b) 1-MIG/WISE synergic welding program selection (long press) **
7. a) Welding voltage display
b) Adjustable parameters display
8. a) Welding voltage adjustment
b) Adjustment of length of welding arc (1-MIG)
c) Adjustment of MIG dynamics
d) Adjustment of SETUP parameter
e) Selection of 1-MIG/WiseRoot/WiseThin welding program (program number) **
f ) WiseRoot and WiseThin base current adjustment **
9. Selection LED indicators for synergic welding program – indicators for material, wire
thickness and gas type
10. Selection of MIG/1-MIG/MMA welding process
11. a) Selection of additional MIG functions
b) Weld data: Show last used welding parameters in displays (long press)
12. Manual control/remote control unit selection (long press for channel remote usage)
13. MIG dynamics/MMA Arc Force/Wise Forming Pulse selection **
14. Display of air/liquid cooled MIG gun (selection from setup)
*) Minilog is not included in standard delivery.
**) Wise products are available as optional welding process solutions. Not included in the
standard delivery. Please visit www.kemppi.com or Kemppi Datastore.
With MS 200 and MS 300 panels 'Wire Inch' and 'Gas Test' buttons should be used from the
NOTE!
inside of the wire feed unit.
