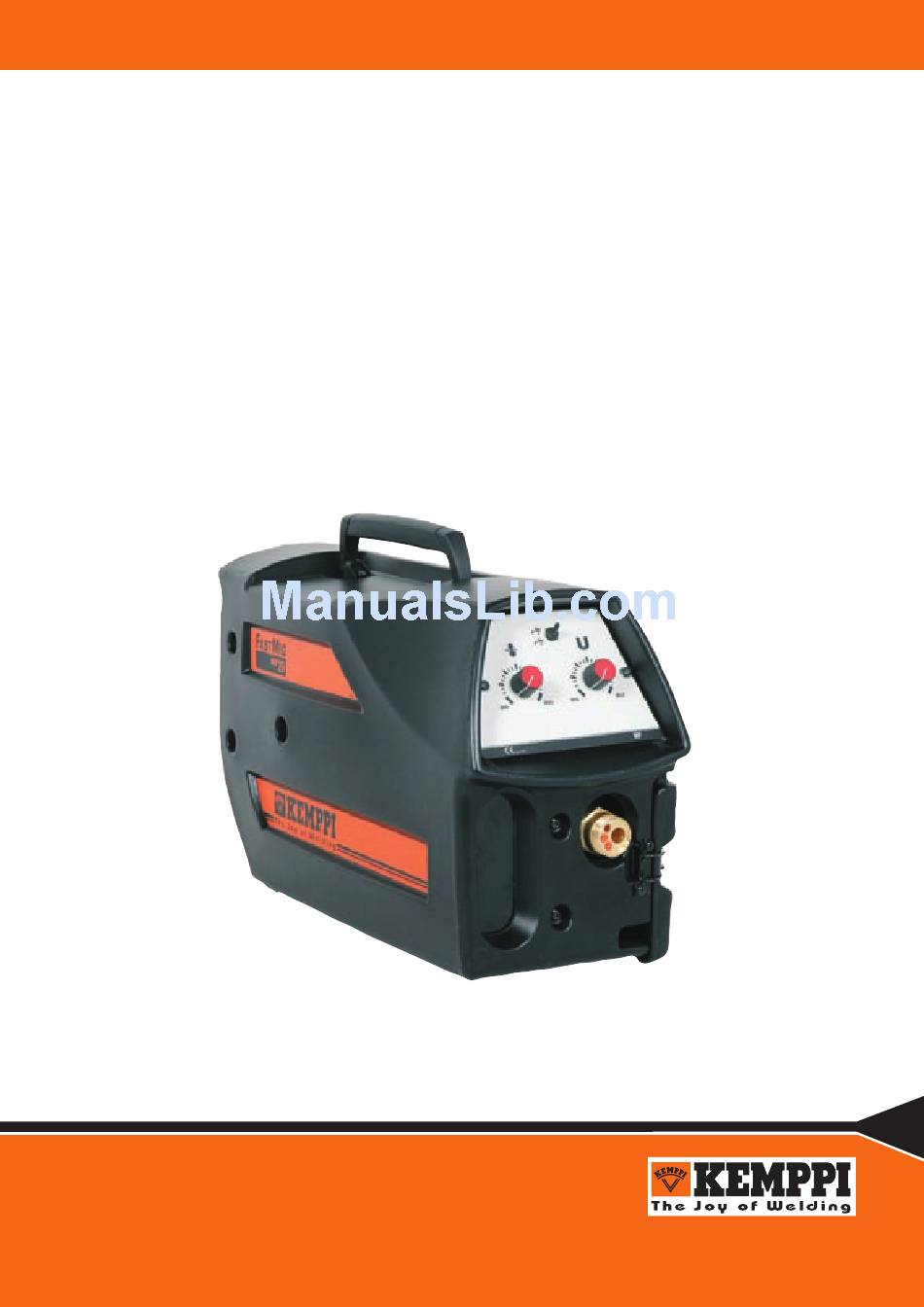

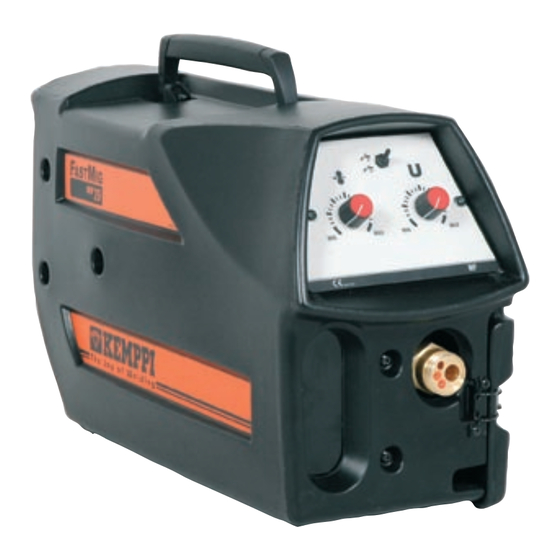

  • Page 1 1906320E Operation instructions • english 0603 Gebrauchsanweisung • deutsch Gebruiksaanwijzing • nederlands Manuel d’utilisation • français FASTMIG™ MF 29...
  • Page 2: Table Of Contents

    2.12. HANGING .........................11 3. SERVICE, OPERATION DISTURBANCES ..............11 4. DISPOSAL OF THE MACHINE ................... 12 5. ORDERING NUMBERS ....................12 6. TECHNICAL DATA ...................... 13 7. TERMS OF GUARANTEE ................... 14 2 – FASTMIG™ MF 29 / 0603 © KEMPPI OY...
  • Page 3: Preface

    1. PREFACE 1.1. INTRODUCTION Congratulations on having purchased this product. Properly installed Kemppi products should prove to be productive machines requiring maintenance at only regular intervals. This manual is arranged to give you a good understanding of the equipment and its safe operation. It also contains maintenance information and technical specifications.
  • Page 4: Operation Control And Connectors

    Connection for control cable Shielding gas connection Welding current cable connector Lead-in of cooling liquid hoses Selection of gun switch function Adjustment of welding voltage Adjustment of wire feed speed 4 – FASTMIG™ MF 29 / 0603 © KEMPPI OY...
  • Page 5: Connection Of System

    1.2.2. Connection of system © KEMPPI OY FASTMIG™ MF 29 / 0603 – 5...
  • Page 6: Parts Of Wire Feed Mechanism, Mf 29

    1.2.3. Parts of wire feed mechanism, MF 29 6 – FASTMIG™ MF 29 / 0603 © KEMPPI OY...
  • Page 7: Operation Safety

    Do not press MIG-gun switch, if the gun is not directed towards a work piece. Welding fumes Take care that there is sufficient ventilation during welding. Take special safety precautions when welding metals, which contain lead, cadmium, zinc, mercury or beryllium. © KEMPPI OY FASTMIG™ MF 29 / 0603 – 7...
  • Page 8: Installation

    Check that in filler wire reel there are no parts sticking out, which could e.g. chafe against chassis or door of wire feed unit. Dragging parts might expose chassis of wire feed unit under voltage. 8 – FASTMIG™ MF 29 / 0603 © KEMPPI OY...
  • Page 9: Automatic Wire Feed To Gun

    Electronics of feed unit controls stopping of welding automatically so that the wire end doesn’t melt fastened to the contact tip or the work piece. Automatics work regardless of the wire feed speed. Can be adjusted also from power source SETUP-menu ('PoC'). © KEMPPI OY FASTMIG™ MF 29 / 0603 – 9...
  • Page 10: Ground Cable

    The flow rate is set according to the welding power used in the job. A suitable flow rate is normally 8 – 10 l/min. If the gas flow is not suitable, the welded joint will be sporous. Contact your local Kemppi-dealer for choosing gas and equipment. 2.9.1. Installing gas bottle Always fasten gas bottle properly in vertical position in a special holder on the wall or on a carriage.
  • Page 11: Main Switch I/O

    * Loose couplings must be tightened Clean dust and dirt from the equipment. When using compressed air, always protect your eyes with proper eye protection. In case of problems contact your KEMPPI dealer. © KEMPPI OY FASTMIG™ MF 29 / 0603 – 11...
  • Page 12: Disposal Of The Machine

    MMT 42W 6254203MMT MMT 42W 4,5 m 6254204MMT MMT 52W 6255203MMT MMT 52W 4,5 m 6255204MMT Interconnecting cables KM 70-1.8-WH 6260411 KM 70-15-WH 6260412 KM 70-1.8-GH 6260413 KM 70-15-GH 6260414 12 – FASTMIG™ MF 29 / 0603 © KEMPPI OY...
  • Page 13: Technical Data

    Storage temperature range -40...+60 °C Degree of protection IP 23 C Dimensions length 510 mm width 200 mm height 310 mm Weight 9.4 kg The products meet conformity requirements for CE marking. © KEMPPI OY FASTMIG™ MF 29 / 0603 – 13...
  • Page 14: Terms Of Guarantee

    Guarantee repairs must be carried out only by an Authorised Kemppi Service Agent. Packing, freight and insurance costs to be paid by orderer. The guarantee is effected on the date of purchase. Verbal promises which do not comply with the terms of guarantee are not binding on guarantor.
