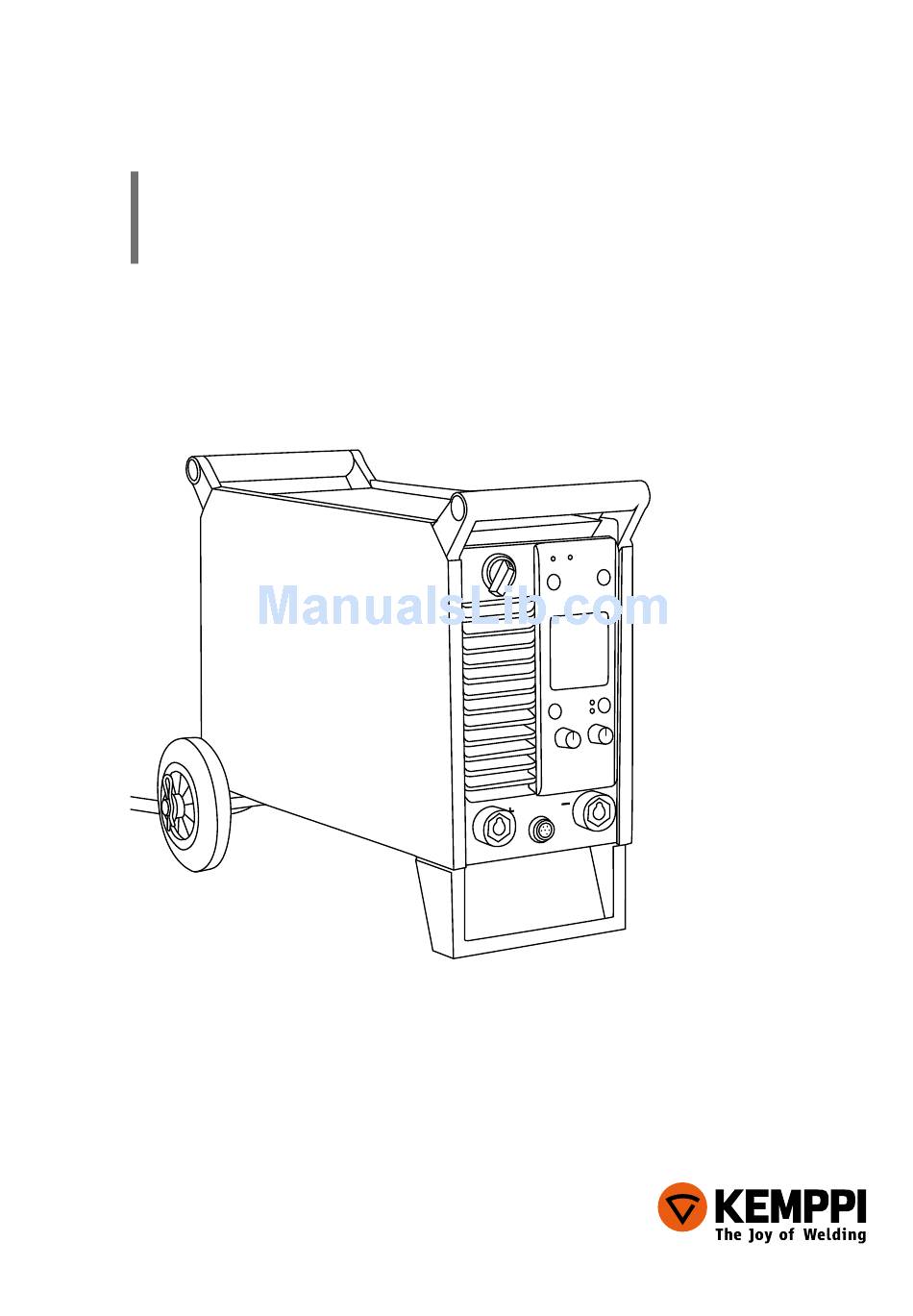

- Page 1 HiArc M 400R, M 500R Operating manual Manual de instrucciones Manuel d’utilisation Manual de utilização Инструкции по эксплуатации...
- Page 3 Operating manual english...
-
Page 4: Table Of Contents
....................... . . HiArc M 400R, M 500R... -
Page 5: Introduction
This operating manual contains important information on the use, maintenance and safety of your Kemppi product. The technical specifications of the device can be found at the end of the manual. Please read the manual carefully before using the equipment for the first time. For your own safety and that of your working environment, pay particular attention to the safety instructions in the manual. -
Page 6: Installation
Power source fuse, 8A Fan grill Shielding gas heater fuse, 2 A Wire feeder cable connector ( + ) 10. Connector for shielding gas heater Control cable connection Earth return cable connector ( – ) HiArc M 400R, M 500R... -
Page 7: Positioning Of The Machine
On the front side of the machine, there are connectors for the interconnection cable and the control cable for connecting the power source to the wire feeder. On the back side of the machine, there is a terminal strip connector, where you connect the mains cable leads. © Kemppi Oy / 1308... -
Page 8: Mains Connection
Check also that the mains cable complies with the local electrical regulations, and replace the cable if necessary. See ’Technical data’ . The mains cable or wall plug may be installed or replaced only by an electrical contractor or NOTE! installer authorised to perform such operations. HiArc M 400R, M 500R... -
Page 9: Wire Feeder Connection
Please read carefully the wire feeder installation and operation instructions in the NOTE! Kemppi HiArc F operating manual. Normally the wire feeder should be connected to the plus pole. However, with some filler NOTE! wires and shielding gases, you should connect the feeder to the minus pole, and the earth return cable to the plus pole. -
Page 10: Earth Return Cable Connection
Castor wheel kit replaces the static front support leg of the machine and allows the machine to be free wheeled. Fastening plate can be used to fasten the wire feeder on the top of the power source. HiArc M 400R, M 500R... -
Page 11: Using The Machine
Press to select the Crater Fill mode ON or OFF. Wire feed speed adjustment knob Turn to set the wire feed speed value for the Crater Fill mode. Voltage adjustment knob Turn to set the welding voltage value for the Crater Fill mode. © Kemppi Oy / 1308... -
Page 12: Starting The Machine
If the heat indicator led is on, the machine has exceeded its normal maximum operating temperature. Stop welding and wait until the led turns off. The machine is then ready for welding to continue. GAS TEST Ar + CO HiArc M 400R, M 500R (MAG) -
Page 13: Selecting Shielding Gas
To interrupt the gas test, press the button again. trigger logic and Crater Fill function The HiArc M 400R power source is equipped with a crater fill function, which makes your welding more efficient and helps you avoid welding defects at the end of the weld sequence. - Page 14 • Trigger released – welding starts. • Trigger pushed down – welding values change to crater fill level. • Trigger released – welding ends. Post-gas time flows for preset time. Pre-gas time Crater fill time Post-gas time HiArc M 400R, M 500R...
-
Page 15: Calibrating Wire Feed Speed
Press Wire Inch button at the wire feeder. • Wire feed starts and continues for 12 seconds When wire feed stops, cut the wire at the contact tip and measure the length of the fed wire in mm. © Kemppi Oy / 1308... - Page 16 • If the device is left idle for 5 minutes, it automatically exits the calibration mode. • If the device is turned off before the step 10, it automatically exits the calibration mode, and the old calibration values remain. HiArc M 400R, M 500R...
-
Page 17: Troubleshooting
The machine has no mains voltage switch on • Check the mains fuses • Check the mains cable and the wall plug * Contact Kemppi service in case of Err 2 and Err 3 without mains voltage cause. © Kemppi Oy / 1308... -
Page 18: Maintenance
The owner of the equipment is obliged to deliver a decommissioned unit to a regional collection centre, per the instructions of local authorities or a Kemppi representative. By applying this you will improve the environment and human health. -
Page 19: Ordering Codes
Ordering COdes HiArc M 400R power source 63104002 HiArc M 500R power source 63105002 HiArc F 10 wire feeder 6310010 HiArc F 30 wire feeder 6310030 Welding guns FE 42 3.5 m 6604203 FE 42 5.0 m 6604204 Interconnection cables HiArc F30 50-5-GH 50 mm², 5 m... - Page 20 78681 EPONE CEDEX myynti.fi@kemppi.com info.ru@kemppi.com FRANCE Tel +33 1 30 90 04 40 KEMPPI SVERIGE AB KEMPPI, TRADING (BEIJING) COMPANY, Telefax +33 1 30 90 04 45 LIMITED Box 717 sales.fr@kemppi.com Room 420, 3 Zone, Building B, S-194 27 UPPLANDS VÄSBY No.12 Hongda North Street,...
