Summary of Contents for Kemppi MXF 63

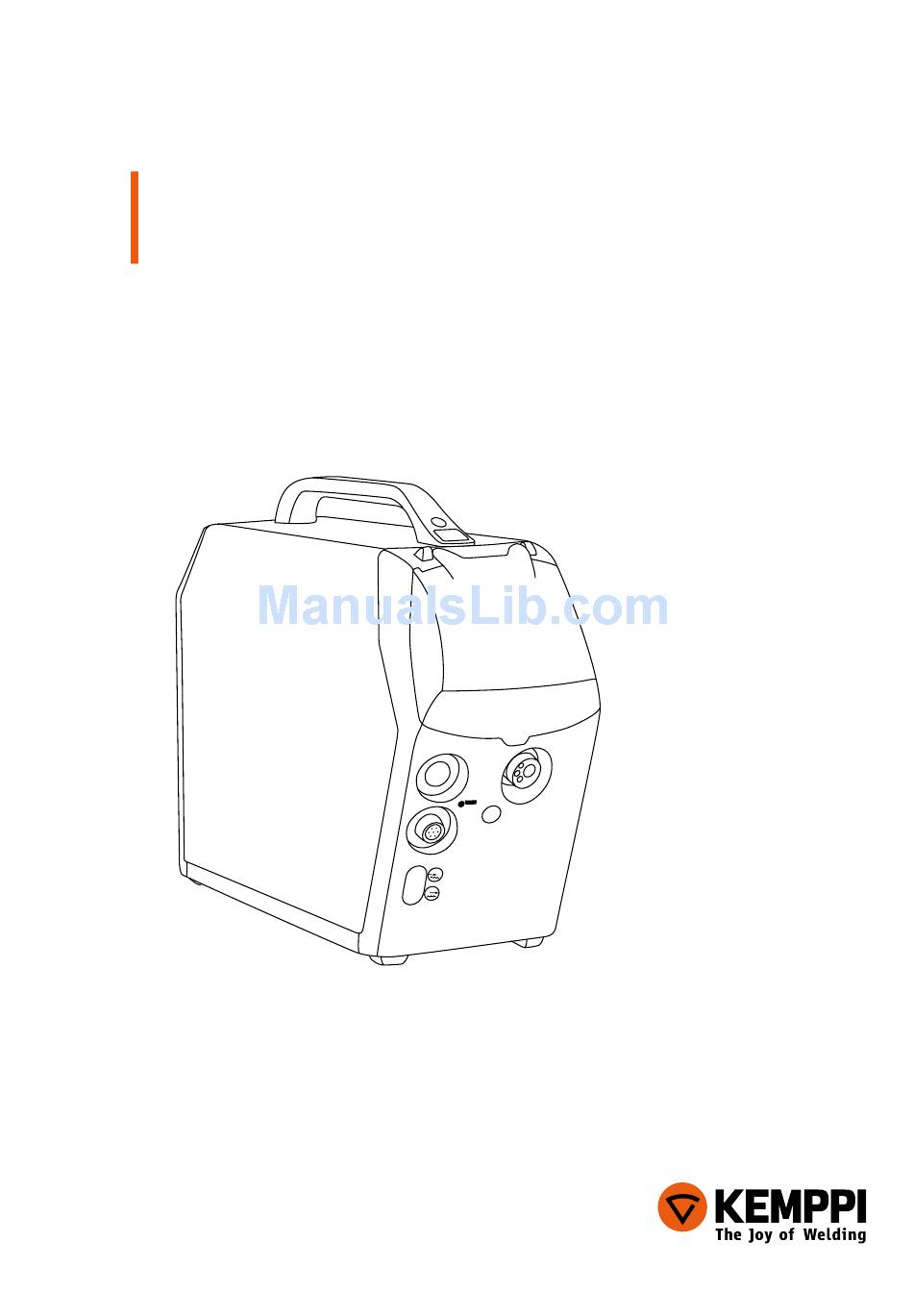

- Page 1 FastMig MXF 63, 65, 67 Operating manual Bruksanvisning Gebrauchsanweisung Manual de instrucciones Käyttöohje Manuel d’utilisation Manuale d’uso Gebruiksaanwijzing Brugsanvisning Instrukcja obsługi Manual de utilização Инструкции по эксплуатации Bruksanvisning 操作手册...
- Page 3 Operating manual english...
-
Page 4: Table Of Contents
....................Machine introduction, MXF 65, 67 and MXF 63 .. -
Page 5: Preface
Kemppi FastMig™ MXF 63, MXF 65 and MXF 67 are wire feeders designed for demanding professional use. MXF 63 is intended for 200-mm wire spool, MXF 65 and MXF 67 for 300 mm wire spool. Wire feeders can be used with both FastMig Pulse and FastMig KMS power sources. -
Page 6: Installation
65, 67 and mXf 63 WF # Control control panel Remote control connector Sub feeder Sync connector (kit optional) Gun water connections (cooling optional) Euro gun connector Shielding gas connection Connection for control cable Welding current cable connector... -
Page 7: Connection Of System
2.2.1 Water cooled system: fastmig power source + mXf + fastCool 10 MXF wire feed unit FastMig power source FastCool water cooler and power connection Gas supply MMA electrode holder Remote control device Liquid cooled welding Gun Power cable Earth return lead and clamp © Kemppi Oy / 1336... -
Page 8: Assembly Of Mig/Mag System
5. mounting fastmig wire feed units to boom and swing arms When mounting wire feed units to boom and swing arms, the unit must be electrically isolated from both. Suspension angle of wire feed unit can be changed by moving the fixing point in handle. FastMig MXF 63, 65, 67... -
Page 9: Accessories Corresponding To Wire Diameter
Distance wire feeding is accommodated with WeldSnake and SuperSnake products in either Gas or Water cooled models. Thermal and load protection is also designed to some Kemppi Gun models and feed units, so carefully consider your requirements and consult your local Kemppi sales team to ensure you choose the correct alternative for your needs. -
Page 10: Loading The Filler Wire And Automatic Feed
W007435 W007299 W007444 W007436 W007300 Fe, Mc, Fc 0.8 – 0.9 W007454 W007465 W007536 metal W007455 W007466 W007537 W007456 W007467 W007538 1.4 – 1.6 W007458 W007469 W007539 W007459 W007470 W007540 W007460 W007471 W007541 24.8.2005 12:55 FastMig MXF 63, 65, 67... - Page 11 W006086 W006087 Al, (Fc, Mc, Ss, Fe) W006088 W006089 U-groove W006090 W006091 W006092 W006093 Mount the lower feed roll, ensuring that the pin on the shaft fits in the cut on the feed roll. NOTE! © Kemppi Oy / 1336...
-
Page 12: Wire Liners
Steel spiral liners carry the same colour coding as Kemppi machine feed rolls and drive rolls, making wire size, liner and drive roll matching easier if the gun is connected to Kemppi equipment. Steel spiral liners are suitable for welding solid and cored filler wires of corresponding wire diameter. -
Page 13: Adjustment Of Pressure Arms
Always use a good quality, 70 mm 2 heavy copper cable, and if possible a screw type 600 A clamp. Ensure that the surface contact to the work piece is clean of metal oxide and or paint. Make sure the clamp is firmly secured. © Kemppi Oy / 1336... -
Page 14: Shielding Gas
The flow rate should be measured at the welding gun nozzle before welding via a rotameter, and normally measure's between 10 – 20 litres per minute for many welding applications. FastMig MXF 63, 65, 67... -
Page 15: Main Switch I/O
Always start and switch off the machine with the main switch, never use the mains plug as a switch. © Kemppi Oy / 1336... -
Page 16: Operation Of Cooling Unit, Fastcool
FastCool 10 unit. 2.17 mXf hanging kit The MXF 63, 65 and 67 wire feed units can be hanged from a special hanging kit available as an accessory. This allows the wire feed unit to be suspended above the work area. -
Page 17: Control Panel Operations
Finally secure the panel into place with the additional black plastic security clip provided (MXF 65 only). Ensure that the clip is positioned correctly. You will notice that the clip does not seat snuggly if its positioned upside down. © Kemppi Oy / 1336... -
Page 18: Welding Software Delivery Profile
If you have a specific need beyond your standard equipment profile, check Kemppi DataStore for new welding software options or discuss with your supplier. FastMig Pulse is designed to allow customer specified welding software choice. Following delivery and installation your machine will include welding software specified at the point of order. - Page 19 Pulse 1-MIG Wire diam. Material Ar+18%CO₂ Ar+18%CO₂ Ar+18%CO₂ Ar+18%CO₂ CO₂ CO₂ CO₂ CO₂ FeMC Ar+18%CO₂ FeMC CO₂ FeFC_Rut Ar+18%CO₂ FeFC_Rut CO₂ WORK PACK Group Pulse/Double Pulse 1-MIG Wire ø mm Material AlMg5/AlMgMn AlSi5/AlSi12 Ar+18–25%CO₂ Ar+18–25%CO₂ © Kemppi Oy / 1336...
-
Page 20: Pf 63 And Pf 65 Panel Button Functions
MMA. Forming Pulse setting if welding process is Wise-Root/WiseThin. Long Press: Wire Feeder number selection (WF#). If more than one wire feeder is connected to system WF number selection must be made. Every wire feeder must be different WF number. FastMig MXF 63, 65, 67... -
Page 21: Gas Test Button
Long Press: Selected memory channel is locked / unlocked. No panel parameter changes allowed to that memory channel (panel lock). 2t/4t Button Gun trigger logic selection. Short Press: 2T / 4T selection. Long Press: MatchLog ON/OFF selection if licence found. © Kemppi Oy / 1336... -
Page 22: Extra Functions Button
Adjustments can be made before or during the arc process. This control also adjusts additional parameter values when selected. 5.11 arc length/voltage/adjustment control knob Arc length, voltage and parameter adjustments can be made using this knob. Adjustments can be made before or during welding. FastMig MXF 63, 65, 67... -
Page 23: Pf 63 And Pf 65 Control Panel
13. Panel control/remote control unit selection, channel remote control (long press) *) Not included on standard delivery, see chapter Ordering numbers automatic Weld Data display: Last recorded welding values are displayed post welding. See power source panel P65. Select MENU and then Weld Data. © Kemppi Oy / 1336... -
Page 24: Sf 51 And 54 Control Panel For Fastmig Kms
Changing of basic parameters of the unit, SETUP (long pressing) 11. a) Adjustment of wire feed speed b) Adjustment of MMA current 12. a) Adjustment of welding voltage b) Adjustment of MIG dynamics c) Adjustment of SETUP parameters 13. Manual control/remote control unit selection FastMig MXF 63, 65, 67... -
Page 25: Sf 52W And 53W Control Panel For Fastmig Kms
17. Manual control/remote control unit selection *) Minilog is not included in standard delivery **) Not included in the standard delivery. Wise products are available as optional welding process solutions. Please visit www.kemppi.com or Kemppi Datastore. © Kemppi Oy / 1336... -
Page 26: Basic Troubleshooting
• Check power supply – 3 x phase present? Many of these checks may be carried out by the operator. However certain checks relating to NOTE! mains power must be completed by an authorised trained electrician. FastMig MXF 63, 65, 67... -
Page 27: Maintenance
The owner of the equipment is obliged to deliver a decommissioned unit to a regional collection centre, per the instructions of local authorities or a Kemppi representative. By applying this European Directive you will improve the environment and human health. -
Page 28: Ordering Numbers
SuperSnake GT02S W sub feeder 6154150 SuperSnake GT02S W sub feeder 6154200 SuperSnake GT02S W sub feeder 6154250 Transport unit PM500 6185291 Transport unit P 501 6185269 Transport unit PM 501 6185292 Transport unit PM 502 6185293 FastMig MXF 63, 65, 67... - Page 29 WS 30 W Ss 1.2 mm 6253048S12 WS 42 W Ss 1.0 mm 6254206S10 WS 42 W Ss 1.2 mm 6254206S12 WS 42 W Ss 1.0 mm 6254208S10 WS 42 W Ss 1.2 mm 6254208S12 © Kemppi Oy / 1336...
- Page 30 Aluminium Pack 99904231 Steel Pack 99904232 Stainless Steel Pack 99904233 Work Pack + Wise Fusion 99904234 Aluminium Pack + Wise Fusion 99904235 Steel Pack + Wise Fusion 99904236 Stainless Steel Pack + Wise Fusion 99904237 FastMig MXF 63, 65, 67...
-
Page 31: Technical Data
IP23S IP23S IP23S External dimensions L x W x H 510 x 200 x 310 mm 620 x 210 x 445 mm 625 x 243 x 247 mm Weight 9.4 kg 11.1 kg 12.5 kg © Kemppi Oy / 1336... - Page 32 78681 EPONE CEDEX myynti.fi@kemppi.com info.ru@kemppi.com FRANCE Tel +33 1 30 90 04 40 KEMPPI SVERIGE AB KEMPPI, TRADING (BEIJING) COMPANY, Telefax +33 1 30 90 04 45 LIMITED Box 717 sales.fr@kemppi.com Room 420, 3 Zone, Building B, S-194 27 UPPLANDS VÄSBY No.12 Hongda North Street,...
