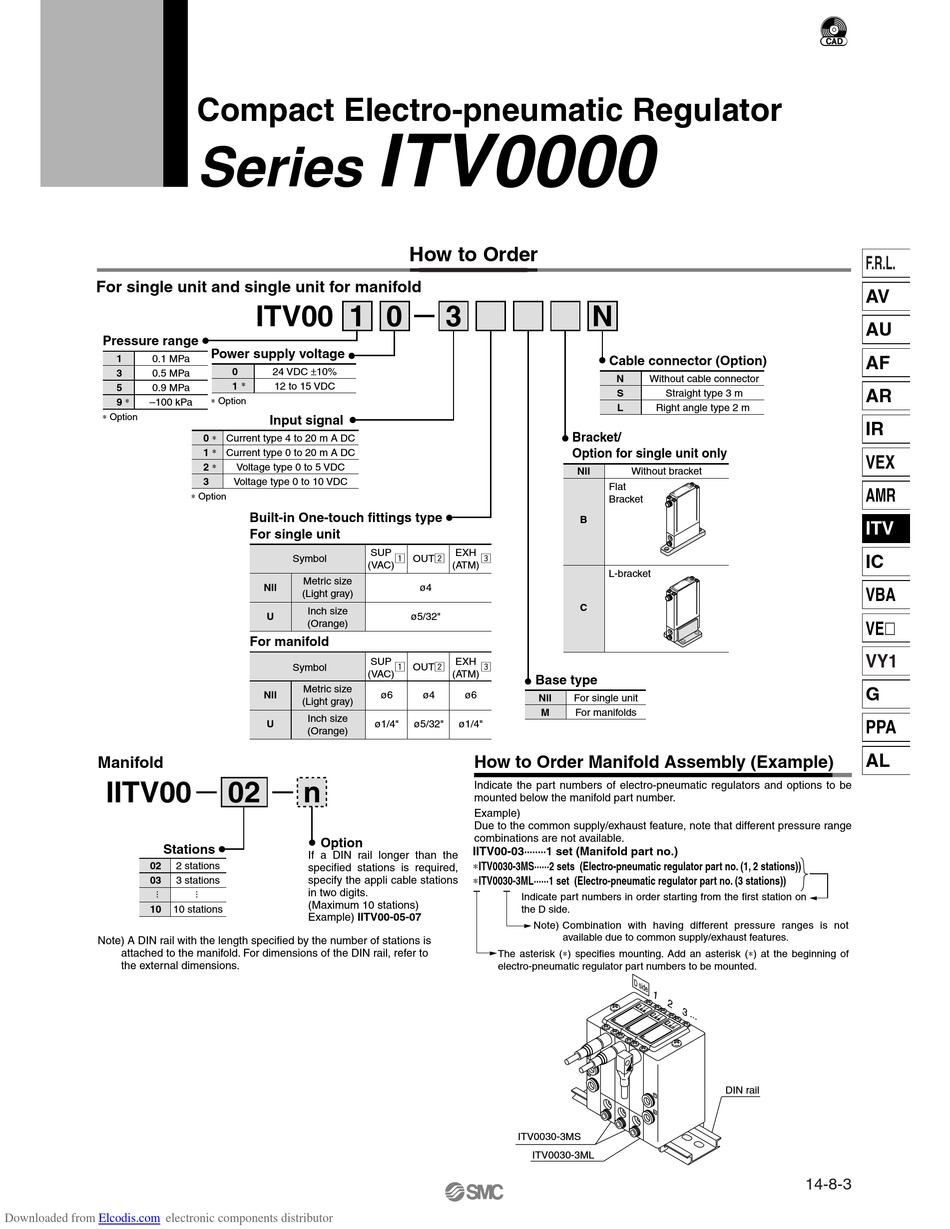

How To Order - SMC Networks ITV Series Manual

For single unit and single unit for manifold
Pressure range
1 0.1 MPa
3 0.5 MPa
5 0.9 MPa
∗
9 –100 kPa
∗ Option
Manifold
IITV00
Stations
02 2 stations
03 3 stations
10 10 stations
Note) A DIN rail with the length specified by the number of stations is
attached to the manifold. For dimensions of the DIN rail, refer to
the external dimensions.
Downloaded from Elcodis.com electronic components distributor
Compact Electro-pneumatic Regulator
Series
ITV00 1 0
Power supply voltage
24 VDC ±10%
0
∗
1 12 to 15 VDC
∗ Option
Input signal
∗
0 Current type 4 to 20 m A DC
∗
1 Current type 0 to 20 m A DC
∗
2 Voltage type 0 to 5 VDC
3 Voltage type 0 to 10 VDC
∗ Option
Built-in One-touch fittings type
For single unit
Symbol
(VAC)
Metric size
Nil
(Light gray)
Inch size
U
(Orange)
For manifold
Symbol
(VAC)
Metric size
Nil
(Light gray)
Inch size
U
(Orange)
02 n
Option
If a DIN rail longer than the
specified stations is required,
specify the appli cable stations
in two digits.
(Maximum 10 stations)
Example) IITV00-05-07
ITV0000

How to Order

3
SUP EXH
z c
OUTx
(ATM)
ø4
ø5/32"
EXH
SUP
z c
OUTx
(ATM)
Base type
ø6 ø4 ø6
Nil
M
ø1/4" ø5/32" ø1/4"
How to Order Manifold Assembly (Example)
Indicate the part numbers of electro-pneumatic regulators and options to be
mounted below the manifold part number.
Example)
Due to the common supply/exhaust feature, note that different pressure range
combinations are not available.
IITV00-03········1 set (Manifold part no.)
∗ITV0030-3MS······2 sets (Electro-pneumatic regulator part no. (1, 2 stations))
∗ITV0030-3ML······1 set (Electro-pneumatic regulator part no. (3 stations))
Indicate part numbers in order starting from the first station on
the D side.
Note) Combination with having different pressure ranges is not
The asterisk (∗) specifies mounting. Add an asterisk (∗) at the beginning of
electro-pneumatic regulator part numbers to be mounted.
ITV0030-3MS
ITV0030-3ML
N
Cable connector (Option)
N Without cable connector
S Straight type 3 m
L Right angle type 2 m
Bracket/
Option for single unit only
Nil Without bracket
Flat
Bracket
B
L-bracket
C
For single unit
For manifolds
available due to common supply/exhaust features.
DIN rail
F.R.L.
AV
AU
AF
AR
IR
