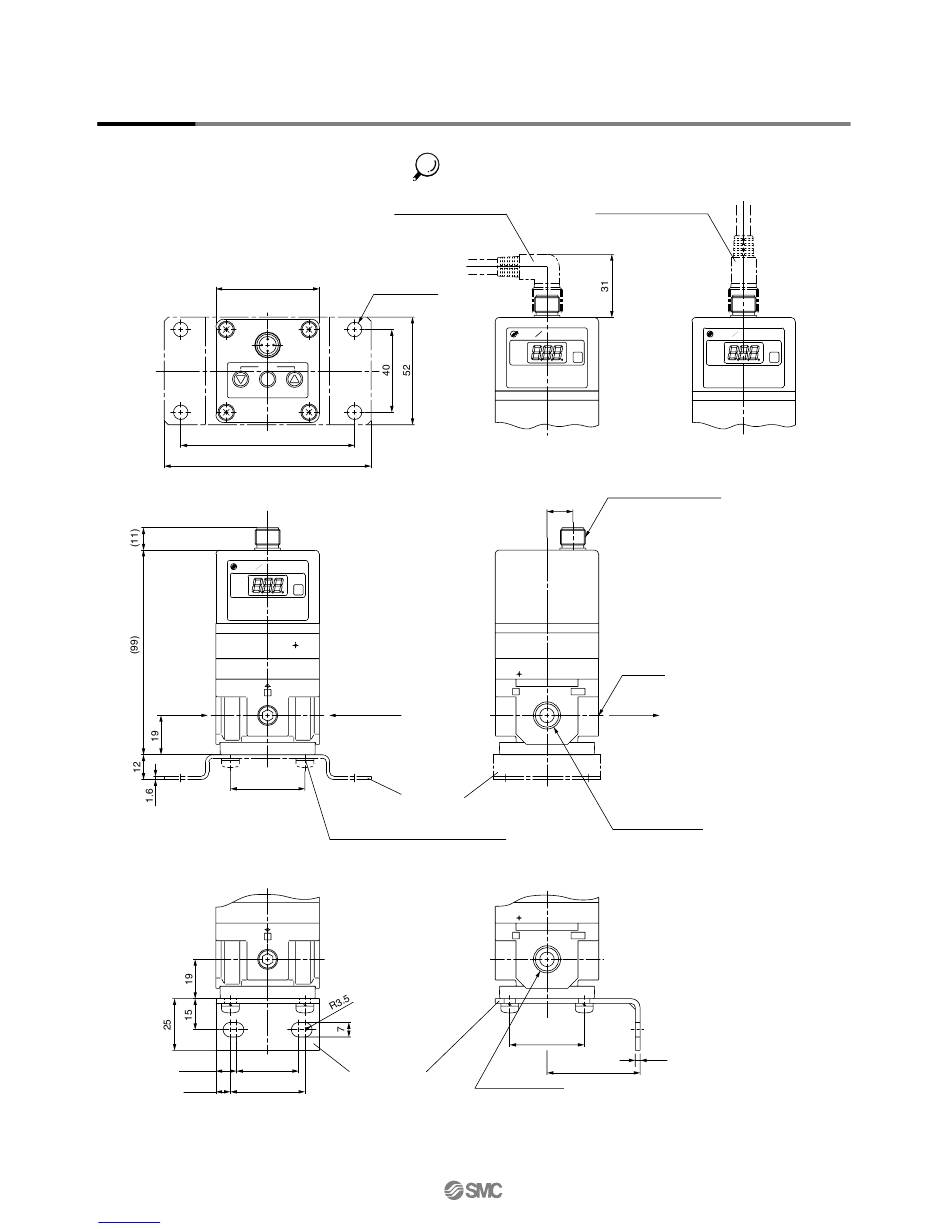

Dimensions
ITV2090
ATM
(Atmospheric
pressure)
(10)
14-8-32
Downloaded from Elcodis.com electronic components distributor
„50
RESET
SET
UNLOCK LOCK
84
100
E
SMC P REGULATOR
ITV2090
G
(Set pressure)
„36
4-M5 x 0.8 thread depth 6 mm through
G
30
(7)
36
INI-398-0-6
Note) Do not attempt to rotate the cable connector, as it does not turn.
Cable connector (4-wire)
Right angle type
4-ø7
Mounting hole
E
SMC P REGULATOR
ITV2090
2
OUT
Flat bracket
P3020114
(Option)
Mounting hole
2
„36
L-bracket
2-Rc 1/4
ATM port, OUT port
(Option)
Cable connector (4-wire)
Straight type
SMC
ITV2090
M12 x 1
12.5
Cable connection thread
Rc 1/4
VAC port
OUT
VAC
(Vacuum
pressure)
2-Rc 1/4
ATM port, OUT port
OUT
2.3
45
E
P REGULATOR
