ITV0000
Series

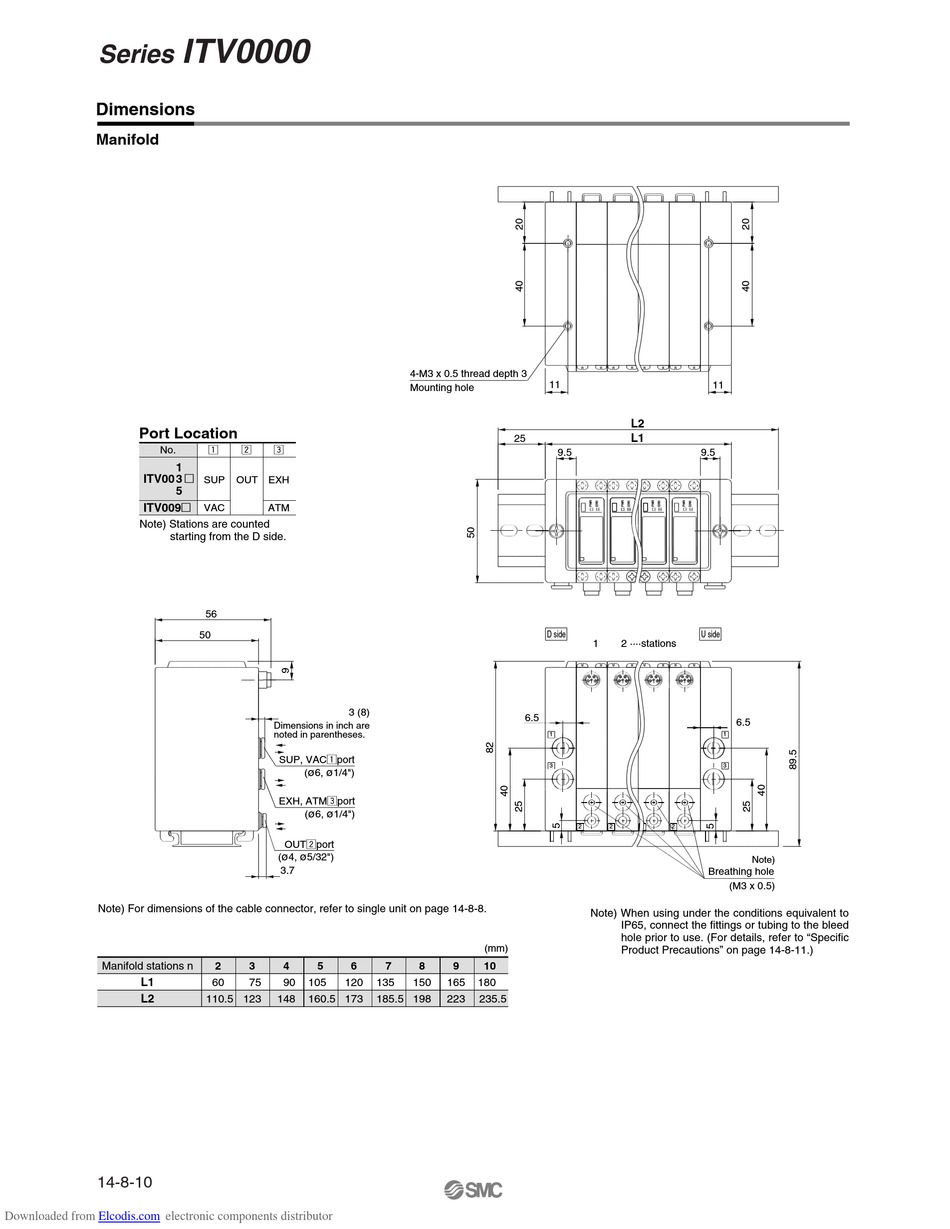

Dimensions
Manifold
Port Location
No.
1
3
ITV00
5
ITV009
Note) Stations are counted
starting from the D side.
Note) For dimensions of the cable connector, refer to single unit on page 14-8-8.
Manifold stations n
L1
L2
14-8-10
Downloaded from Elcodis.com electronic components distributor
z x c
SUP OUT EXH
VAC ATM
56
50
3 (8)
Dimensions in inch are
noted in parentheses.
SUP, VACzport
ø ø
( 6, 1/4")
EXH, ATMcport
ø ø
( 6, 1/4")
OUTxport
ø ø
( 4, 5/32")
3.7
2 3 4 5 6
60 75 90 105 120 135
110.5 123 148 160.5 173 185.5
4-M3 x 0.5 thread depth 3
11
Mounting hole
25
9.5
D side
6.5
1
3
(mm)
7 8 9 10
150 165 180
198 223 235.5
11
L2
L1
9.5
U side
1 2 ····stations
6.5
1
3
2 2 2
Note)
Breathing hole
(M3 x 0.5)
Note) When using under the conditions equivalent to
IP65, connect the fittings or tubing to the bleed
hole prior to use. (For details, refer to "Specific
Product Precautions" on page 14-8-11.)
