SMC Networks ITV Series Manual page 9

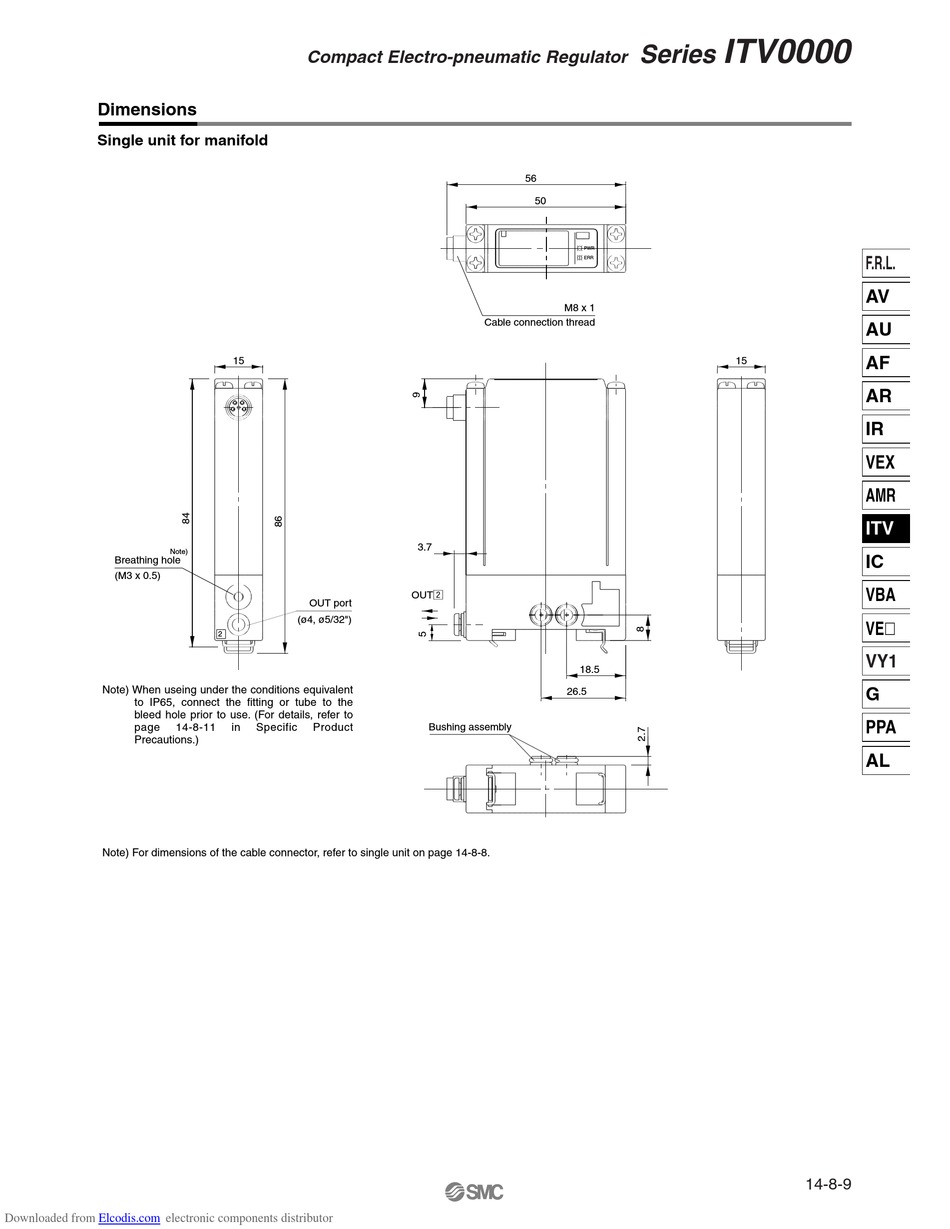

Dimensions
Single unit for manifold
Note)
Breathing hole
(M3 x 0.5)
Note) When useing under the conditions equivalent
to IP65, connect the fitting or tube to the
bleed hole prior to use. (For details, refer to
page 14-8-11
Precautions.)
Note) For dimensions of the cable connector, refer to single unit on page 14-8-8.
Downloaded from Elcodis.com electronic components distributor
Compact Electro-pneumatic Regulator
15
OUT port
(ø4, ø5/32")
2
in Specific Product
56
50
PWR
ERR
M8 x 1
Cable connection thread
3.7
OUTx
18.5
26.5
Bushing assembly
ITV0000
Series
15
14-8-9
