-Note: After naming your Virtual Control in the box provided, check the 'Enabled' checkbox to
access the Control Group and Script fields.
-Order of execution:
Control 1 LATCHED > DELAY (5 SECONDS) > Control 1 RELEASED > DELAY (1
Second) >
Control 12 LATCHED > DELAY (5 SECONDS) > Control 12 RELEASED > DELAY (1
Second) >
Control 4 LATCHED > DELAY (5 SECONDS) > Control 4 RELEASED > DELAY (1
Second) >
Control 18 LATCHED > DELAY (5 SECONDS) > Control 18 RELEASED > DELAY (1
Second)
11.11

Analogs

The NetGuardian can have up to 6 analog channels. The 5th and 6th channels are dedicated to
monitoring the power input (channel is not used if build option was not selected). These channels
support the entire range of power inputs that the NetGuardian can support. Channels 1-4 are user-
definable. Each channel must be individually configured to monitor data.
Note: Only analogs supported by the units hardware will appear in the NetGuardian web browser
interface.

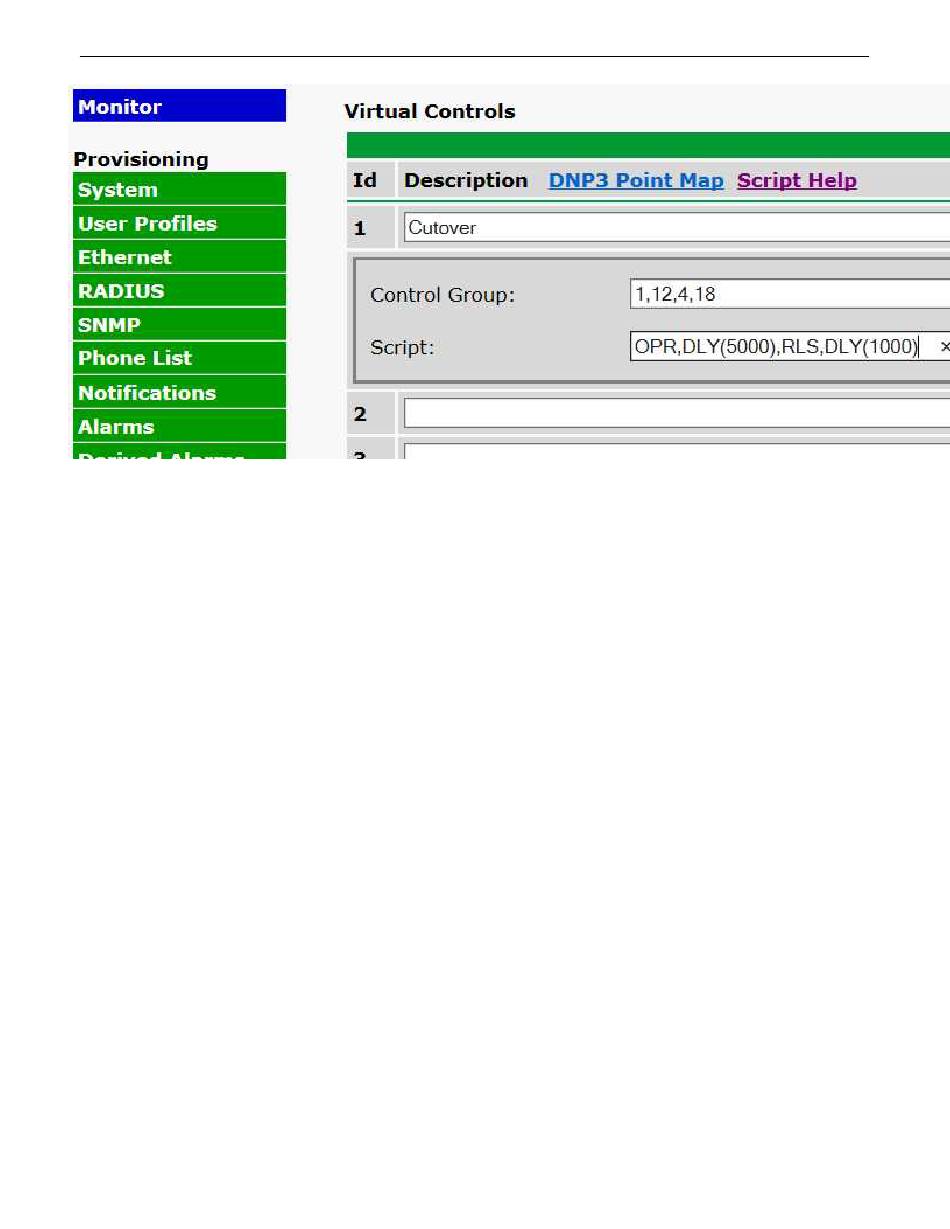

Fig. 11.19 Provisioning > Virtual Controls
