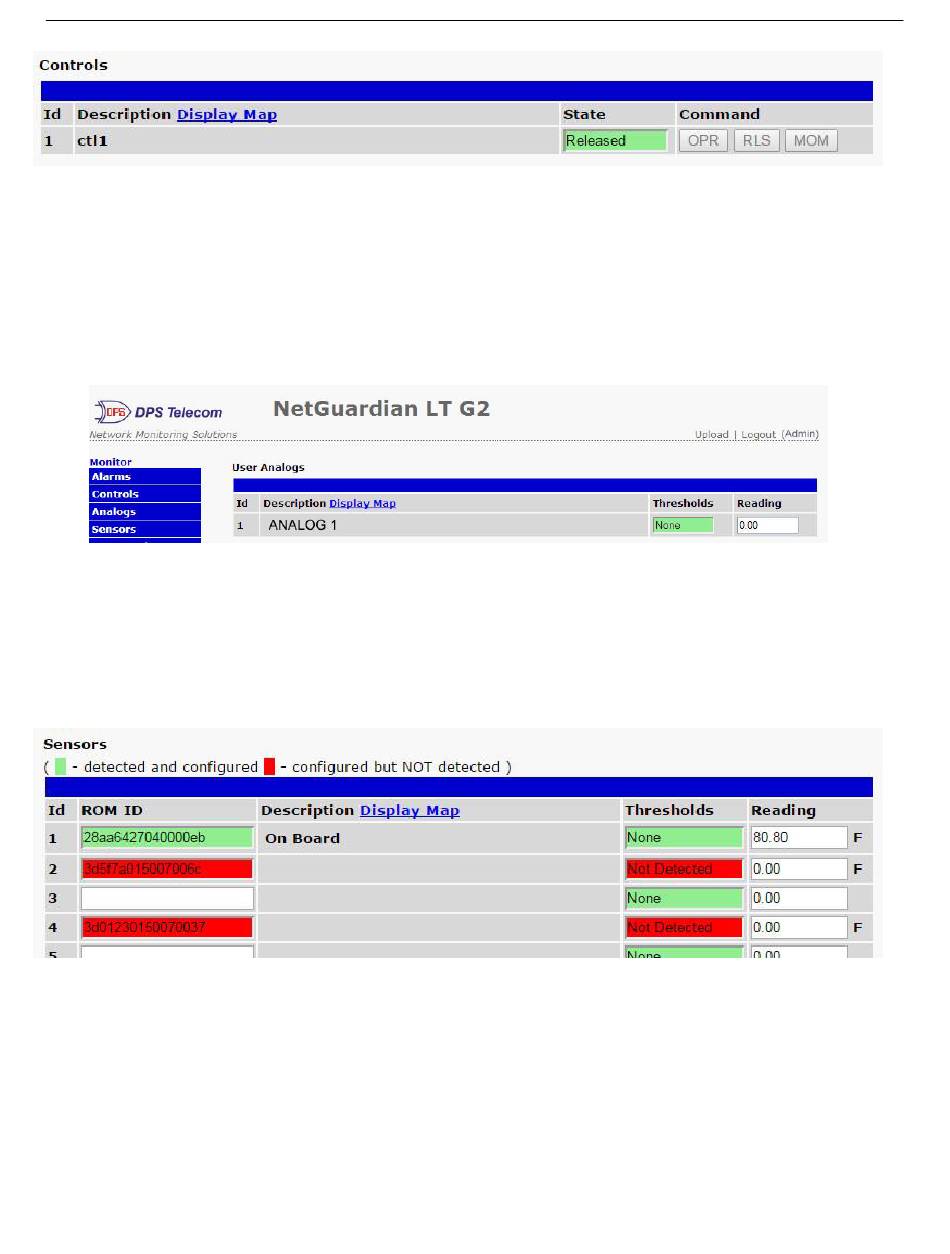

Fig. 11.3.1 Operate the control relay by clicking on one of the actions in the Commands field.

Note: If the control is configured as a derived control, the command buttons will be disabled.

11.4

Monitor Analogs

The Monitor menu > Analogs screen provides a description of each analog channel, the current reading, the

units being read, and alarm conditions (major under, minor under, major over, minor over) according to your

temperature settings.

Fig. 11.4.1 Click on Analogs in the Monitor menu to view the current channel readings.

11.5

In the Monitor > Sensors menu, you can monitor all configured digital "D-wire" sensors (including the Internal

Temperature sensor if your NetGuardian has this option). The most recent sensor measurement will be shown,

and any alarm thresholds crossed will be shown in either orange for minor alarms, red for major alarms or red

for not detected.

Fig. 11.5.1 View the current status of all attached sensors in the Monitor>Sensors menu.
