NetGuardian V16/M16 G2 Overview

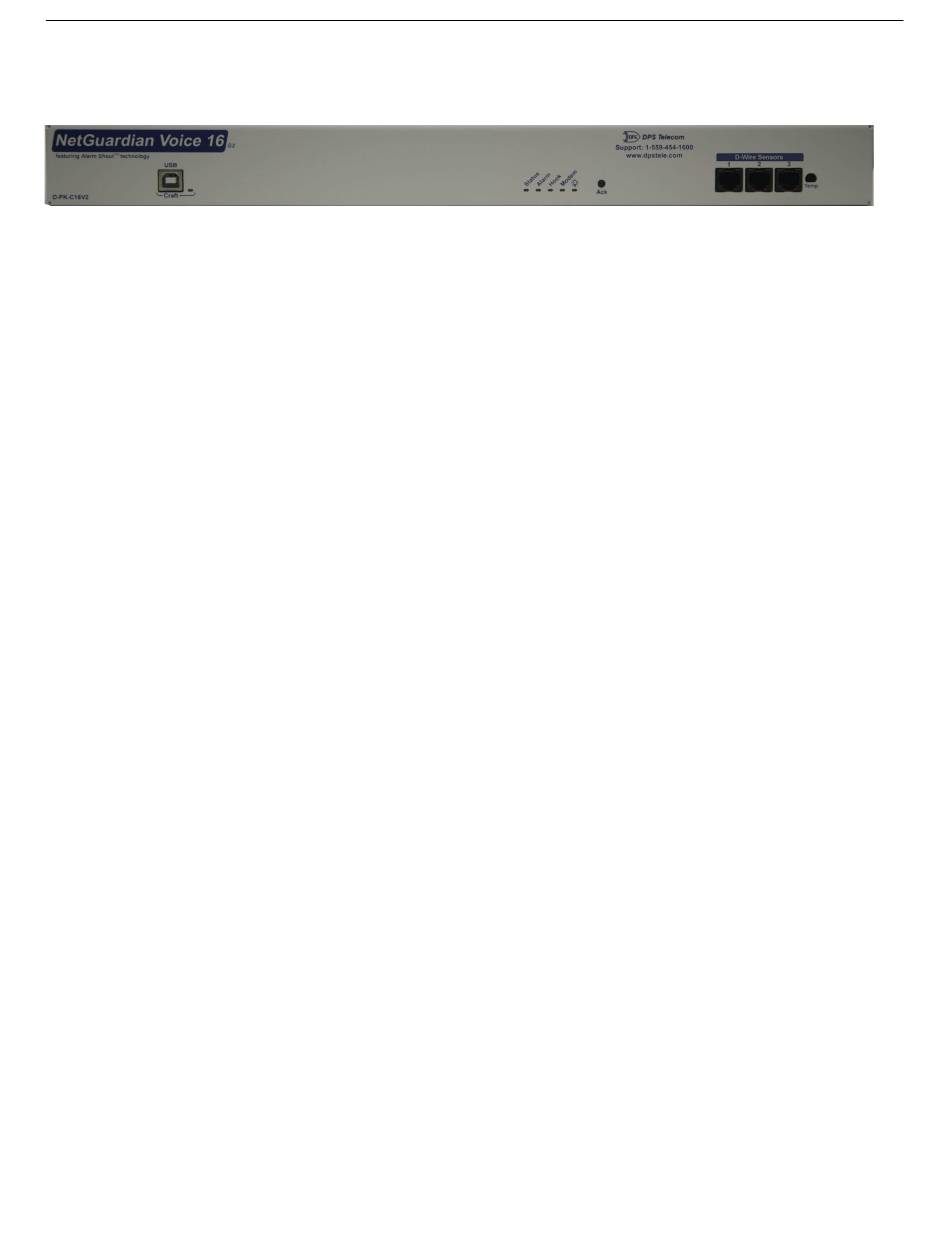

Fig. 1.1 Compact, easy-to-install, right-size capacity - this device offers a low-cost way of effectively
Note: This manual describes both the NetGuardian V16 G2 and the NetGuardian M16 G2. There is only
one difference between these RTUs. The V16 has a voice modem for dial-out voice alerts, while the
M16 has an optional serial/202 port instead.
The NetGuardian V16 G2 is predominately shown throughout this user manual. Configuration and setup
processes are identical for both the NetGuardian M16 G2 and NetGuardian V16 G2, except where
specifically noted.
Effective, easy-to-install, light-capacity alarm monitoring
The NetGuardian V16 G2 is a compact, LAN-based, light-capacity remote telemetry unit. This unit is
designed for easy installation at small and medium remote sites, making it cost-effective to deploy alarm
monitoring throughout your entire telecom network. The NetGuardian V16 G2 features the monitoring
capacity plus voice dialing capabilities for flexible notifications.
Powerful monitoring for smaller sites
This telco-grade remote is housed in a durable aluminum case that can be rack-mounted. This SNMP
remote is scaled to the needs of small sites, such as remote huts, collocation racks, and enclosed
cabinets - perfect for any site where a large capacity RTU would be more than you need.
· 16 Discrete Alarm Inputs
32 Ping Targets
·
· 6 Analog Alarm Inputs
2/18 Control Relay Outputs (Build option)
·
· 1 Reach-through serial port (M16 G2 only)
16/32 D-Wire temperature or humidity sensors (Build option)
·
· Dial-in and out with DTMF acknowledge (V16 G2 only)
SNMP or T/Mon
The device can report alarms to any SNMP manager or to the DPS Telecom T/Mon Remote Alarm
Monitoring System. This NetGuardian can also report via SNMP and DCPx concurrently to T/Mon.
Easy Alerts via Email or SNMP
Email notification reports alarm events to the e-mail addresses of specified personnel and creates a
supplemental record of alarm events in addition to your master via SNMP traps.
Upgraded Web Browser
The overhauled web interface that boasts several new monitoring tools, including new analog gauges.
You'll also notice the impressive speed boost. Menus load very quickly, and the alarm status updates
automatically without requiring a page refresh.
monitoring smaller sites.
