NetGuardian Back Panel

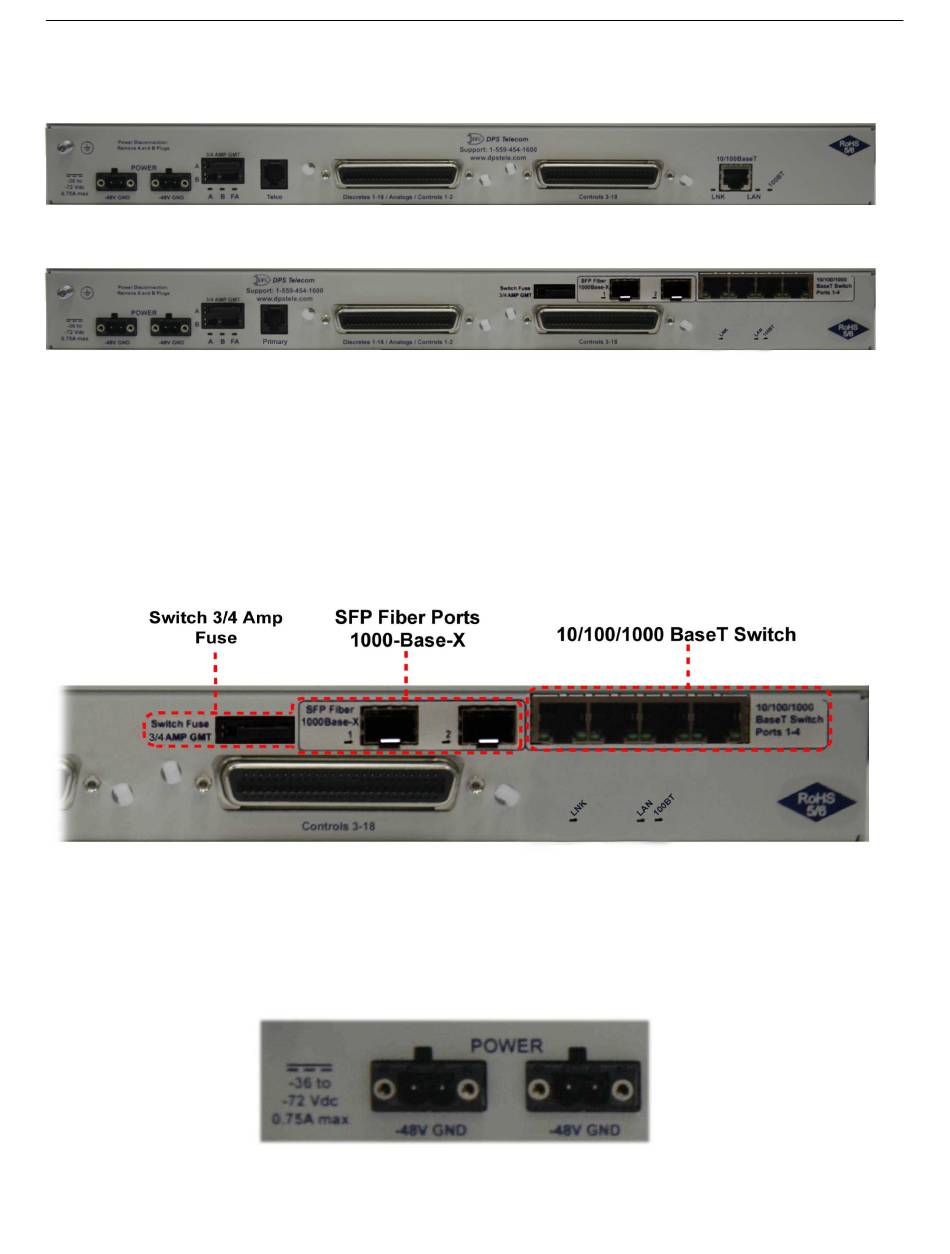

Fig. 5.1 NetGuardian M16 G2 / V16 G2 back panel connections
Fig. 5.2 NetGuardian M16 G2 / V16 G2 back panel (with Fiber Option)
5.1
Fiber Option
Build Option: NetGuardian V16/M16 with GigE Fiber Top Board
If your NetGuardian V16/M16 was ordered with the GigE Fiber top board, 1000Base SFP interface must
be used. The SFP ports are internally connected to the 4 port switch and device LAN interface.
5.2
Power Connection
The NetGuardian is powered by two barrier plug power connectors.
Fig. 5.3 Back panel of NetGuardian V16/M16 G2 with fiber
Fig. 5.4 Locking RIA power inputs
