User Analogs

The TempDefender G2's sixteen multi-purpose analog inputs measure continuous ranges of voltage or current.
Analog alarms are typically used to monitor battery voltage, charging current, temperature, humidity, wind speed, or
other continuously changing conditions. To configure a user analog, simply fill in your description, thresholds, and
other fields listed in the table below, then click Save.
Note: Analog channels 7 and 8 are for internal voltage monitoring (On a single power input build, channel 7 is
unused.)
Default monitoring to
gauge view
Enab (Enable)
Description
Rev
Notifications
Record Freq
Deadband
Units
Low ref and High Ref The low and high values for scaling voltage to your display units.
MjU (Major Under)
MnU (Minor Under)
MnO (Minor Over)
MjO (Major Over)
Post On

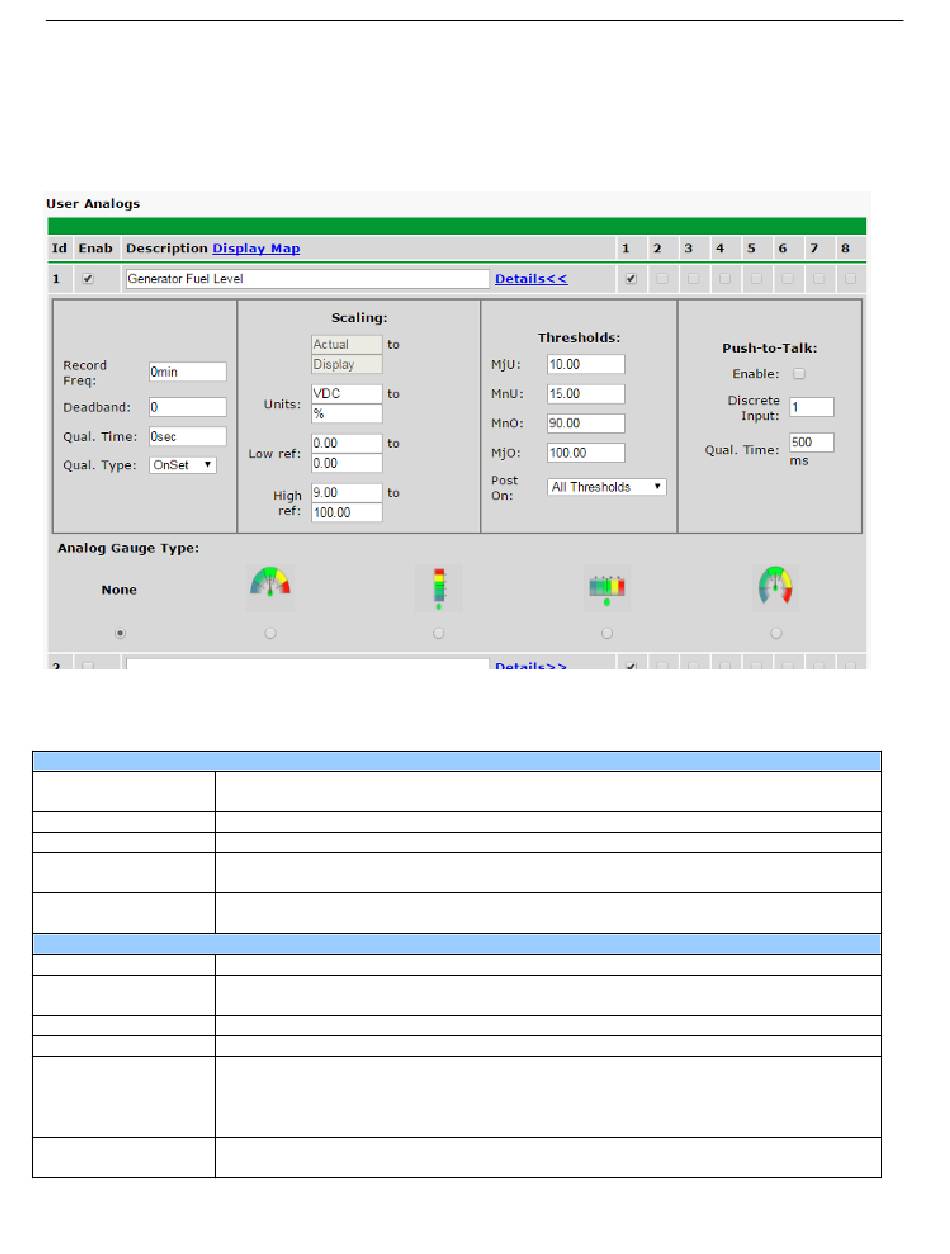

The Provisioning > User Analogs menu
Checking this box sets the default view in the Monitor>User Analogs menu to the gauge
view.
Checking the box in the Enab column enables monitoring of the analog channel.
User-definable description for the analog channel
Checking the reverse button changes negative values to positive, and positive values to
negative.
Check which notification device(s), 1 through 8, you want to send alarm notifications for
this analog input.
The frequency with which the TempDefender G2 will record the analog reading
The additional qualifying value the TempDefender G2 requires above/below your alarm
thresholds in order to set an alarm.
The unit(s) of measurement reported by a connected analog input.
Threshold settings that, when crossed, will prompt the TempDefender G2 to set an alarm.
Recorded values less than an under value or greater than an over value will cause alarms.
Select the threshold alarms to post. All thresholds, Major Only, Minor Only, Major Over
Only, Major Under Only.
