Controls

Use the following rules to operate the NetGuardian's control:
1. Select Controls from the Monitor menu.
2. Under the State field, you can see the current condition of the control.
3. To issue the control, click on a command (OPR - operate, RLS - release, or MOM - momentary)

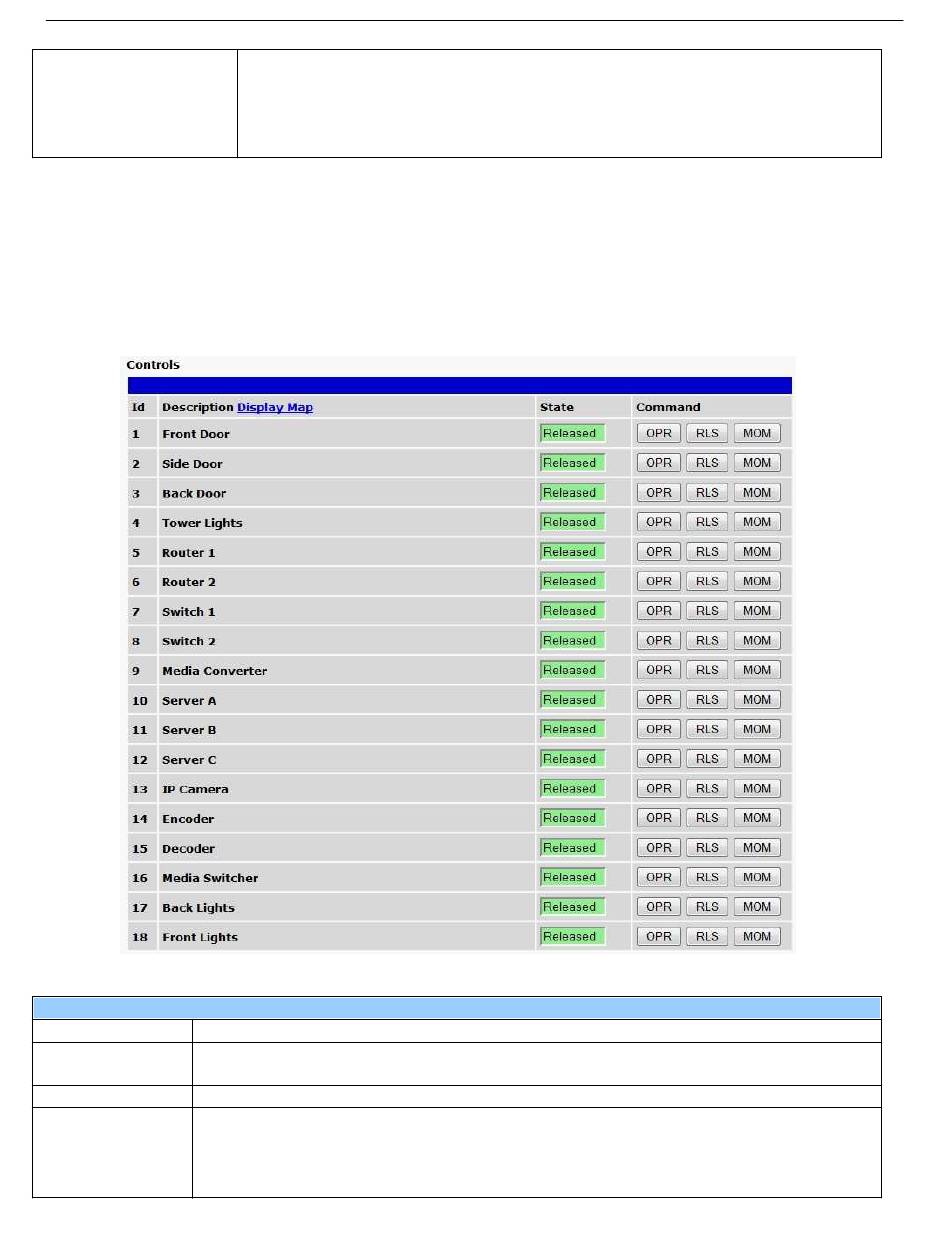

Fig. 12.2 View and operate control relays from the Monitor > Controls menu
ID ID number for the control relay.
Description for the NetGuardian's control relay defined in the Provisioning >
Description
Controls menu.
State Status of the control relay. Can either be Released or Latched.
OPR - Latch the relay.
RLS - Release the relay.
Command
MOM - Momentarily latch the relay, then automatically release the relay. The
2) The maximum time value is 18 hours. Once 18 hours is reached, the
timer will stop counting.
3) The timer will survive a soft reboot (a reboot from the web interface).
4) The timer will not survive a hard reboot (losing power, disconnection, etc).
The timer will be restored to its previously saved value.
Control Relay Operation
