DPS Telecom NetGuardian 216 User Manual

Snmp remote site monitoring unit
Hide thumbs Also See for NetGuardian 216:
Table of Contents

Advertisement

Quick Links

NetGuardian 216
USER MANUAL
Visit our website at www.dpstelecom.com for the latest PDF manual and FAQs.
D-OC-UM052.18100
February 18, 2005
Firmware 1.0H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetGuardian 216 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DPS Telecom NetGuardian 216

Summary of Contents for DPS Telecom NetGuardian 216

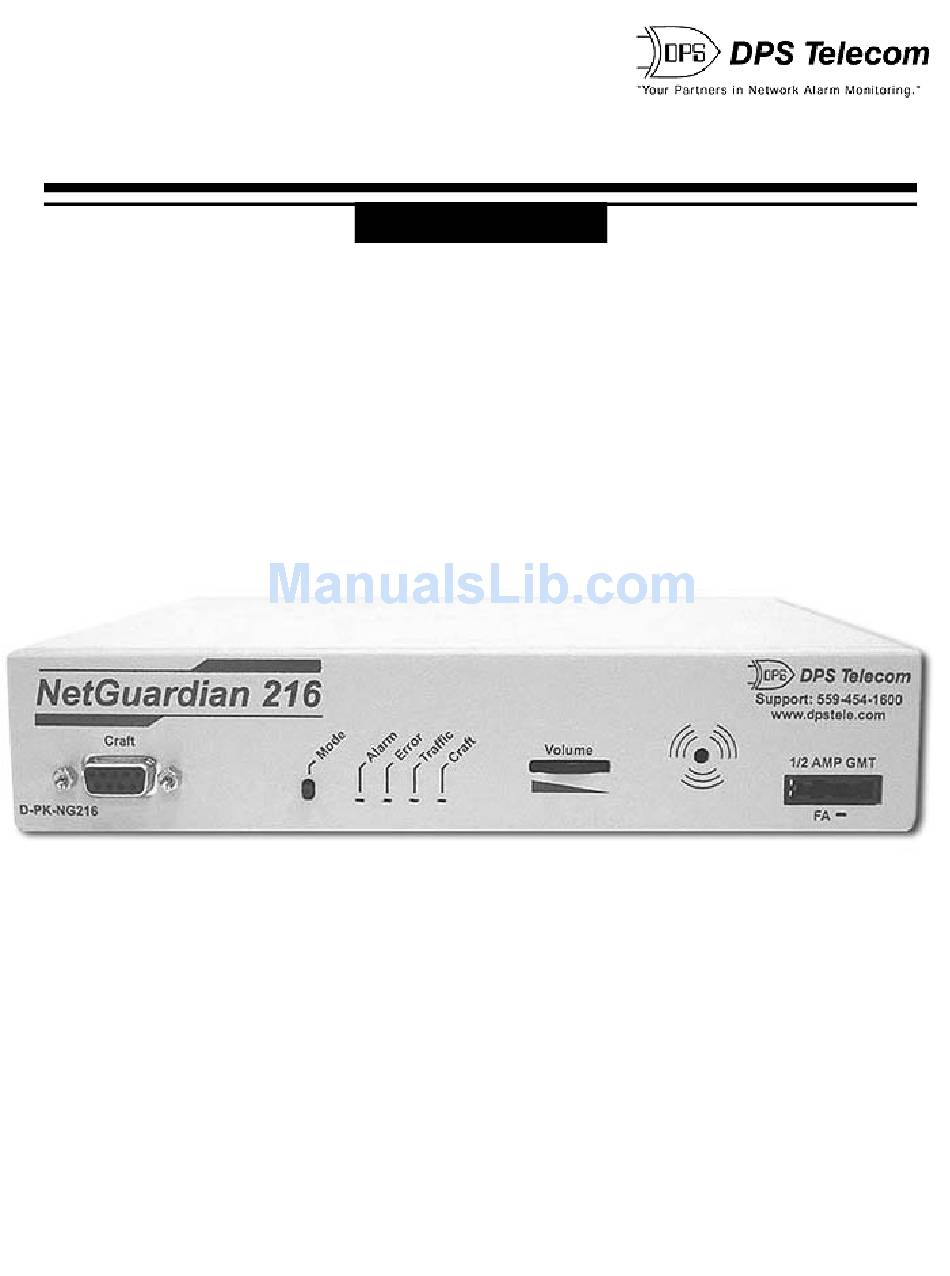

  • Page 1 NetGuardian 216 USER MANUAL Visit our website at www.dpstelecom.com for the latest PDF manual and FAQs. D-OC-UM052.18100 February 18, 2005 Firmware 1.0H...

  • Page 2: Revision History

    Notice The material in this manual is for information purposes and is subject to change without notice. DPS Telecom shall not be liable for errors contained herein or consequential damages in connection with the furnishing, performance, or use of this...

  • Page 3: Table Of Contents

    Visit our website at www.dpstelecom.com for the latest PDF manual and FAQs Introduction Shipping List Specifications Hardware Installation Tools Needed Mounting NetGuardian 216 Connections Power Connection LAN Connection 4.5.1 Preliminary Network Configuration Reach-through Serial Port Alarm and Control Relay Connections 4.7.1...
  • Page 4 Updating Firmware Updating Firmware with T/NG216 LED Display Reference Information NetGuardian 216 Alarm Map NetGuardian 216 Analog Map NetGuardian 216 System Alarms Map SNMP Manager Functions SNMP Granular Trap Packets Color Code and Pinout for Standard Amphenol Wire FAQ's Technical Support...

  • Page 5: Introduction

    System. Easy installation and configuration The NetGuardian 216 mounts in any 19" or 23" rack and occupies only one rack unit of space. The standard NetGuardian 216 has rear-panel connectors for alarms, LAN connections, and serial ports. Configuration settings and provisioning information can be entered through T/NG216; provisioning can be done on site through the craft port or remotely via LAN.

  • Page 6: Shipping List

    While unpacking the NetGuardian, please make sure that all of the following items are included. If some parts are missing, or if you ever need to order new parts, please refer to the part numbers listed and call DPS Telecom at (800) 622-3314.

  • Page 7: Specifications

    Two ½-Amp GMT Fuses Power Screw Lug Barrier Plug (Two for dual power feed units) One 4-Pin Barrier Specifications Dimensions: 1¾"H x 8"W x 6"D (4.45 cm x 20.32 cm x 15.24 cm) Mounting: 19" or 23" rack Power Input: –48VDC (–40 to –70 VDC) (Optional) 9 VDC from 110 VAC wall transformer Current Draw:...

  • Page 8: Hardware Installation

    Fig. 4.1 The NetGuardian 216 can be flush or rear-mounted The NetGuardian 216 can be mounted in a 19" rack or a 23" rack by using the provided rack ear for each size. Two rack ear locations are provided, the unit can be mounted either on the right or left. Attach the appropriate rack ear in the flush-mount or rear-mount locations shown in Figure 4.1.

  • Page 9: Netguardian 216 Connections

    NetGuardian 216 Connections Fig. 4.2 NetGuardian connection panels...

  • Page 10: Power Connection

    Power Connection Fig. 4.3 Power screw lug barrier plug. Optional 9 Volt power input option shown NOTE: Do not apply –48V Power to the NetGuardian 216 until all power connections in Step 1 through Step 8 have been completed. NOTE: Use proper lug terminations on all power and frame ground connections to the NetGuardian 216 Dialup power input terminal strips.

  • Page 11: Lan Connection

    Fig. 4.4 10BaseT port The NetGuardian 216 connects to your LAN or WAN for reporting alarms to T/MonXM or your SNMP manager. Connect a standard RJ45 Ethernet cable from your LAN to the 10BaseT jack located on the NetGuardian 216 back panel as shown in Figure 4.4.

  • Page 12: Reach-Through Serial Port

    3. Temporarily change your computer's Subnet Mask to 255.255.0.0. Note: You will be prompted to automatically reboot your computer to initiate the changes. 4. You can now access the NetGuardian through T/NG216, using the NetGuardian's factory default IP address, 192.168.1.100. Assign the NetGuardian an IP address and subnet mask on your network. 5.

  • Page 13: Alarm And Control Relay Connections

    Fig. 4.8 Pinouts for back-panel data ports and front-panel craft port Alarm and Control Relay Connections Fig. 4.9 Alarm and control relay connectors Discrete alarms, analog alarms, and control relays are connected to the NetGuardian using the 50-pin connector and the 4-pin connector on the back panel, shown in Figure 4.9.

  • Page 14: Discrete Alarms

    Fig. 4.10 Discrete alarm points can connect as a dry contact or a contact to ground The NetGuardian 216 supports up to 16 discrete alarm inputs. Discrete alarms are typically used to monitor door alarms, power outages, equipment failures, and other on/off conditions.
  • Page 15 each alarm point is internally wired to ground, so either a single wire bringing a contact to ground or a dry closure with the second lead connected to the B side will be sensed as an alarm signal. (See Figure 4.10 for an alarm connection diagram.) To reverse the alarm point polarity so an open contact triggers an alarm point see section 5.8.

  • Page 16: Analog Alarms

    4.7.2.1 Jumper Options Fig. 4.12 Adjustable jumpers on the NetGuardian 216 circuit board You can change the settings for analog alarm inputs by resetting the jumpers on the NetGuardian's circuit board. To open the unit and expose the circuit board, remove the screws on the bottom and the screws on the sides of the NetGuardian.

  • Page 17: Front And Back Panel Leds

    See Table 4.B for default jumper settings and descriptions. (Default settings may be different if you ordered a special configuration NetGuardian). Jumper Description Open Closed Analog 1 Voltage* Current Analog 2 Voltage* Current Factory use only N/O* — Factory use only N/O* —...

  • Page 18: Audible Notification And Mode Button

    Fig. 4.15 Back panel LEDs STATUS DESCRIPTION Blink Green LAN data transmit (on back panel) Solid Green Ethernet link OK (on back panel) Ethernet link failure Solid Green Power Polarity correct Solid Red Polarity is backwards Table 4.D LED status messages Audible Notification and Mode Button The NetGuardian features audible notification with adjustable volume control on the front panel —...

  • Page 19: Configuration

    Note: T/NG216 may not work properly on slower machines if the display is set for 256 colors. 5.1.1 Installing T/NG216 The T/NG216 software is on the CD-ROM included with your NetGuardian 216. The CD-ROM includes a standard Windows setup program for easy installation.

  • Page 20: Starting A T/Ng216 Session

    Starting a T/NG216 Session Fig. 5.1 Choose a mode of operation To start a T/NG216 session, follow these steps: 1. Using an Ethernet cable connect to the NetGuardian for network connectivity, or using the provided download cable connect the NetGuardian's front panel craft port to your PC's COM port. Note : T/NG216 will try to read from COM 1 by default.

  • Page 21: Connecting Via Craft Port

    5.2.1 Connecting via Craft Port Fig. 5.2 Select a different port or TCP/IP connection To read from the NetGuardian via the craft port, follow these steps: 1. Click the Exit button 2. Select the Settings Menu 3. Select COM Port — see Figure 5.2. 4.

  • Page 22: T/Ng216 Help

    You can use the Editor toolbar to start a new session, open saved configurations, save configurations, save configurations as, delete saved configurations, write to the NetGuardian 216, read from the NetGuardian 216, or exit a session — see Figure 5.7 for icon definitions.

  • Page 23: Editor Device Tab

    IP address of the NetGuardian 216. Subnet Mask : A road sign to the NetGuardian 216 telling it whether your packets should stay on your local network or be forwarded somewhere else on a wide area network. Default Gateway : An important parameter if you are on a network that is connected to a wide area network.

  • Page 24: Editor Channel Tab

    Figure 5.9. Fig. 5.9 The information prompt will appear if you have typed in the wrong password Fig. 5.10 Enter your user defined password to read from and write to the NetGuardian 216 Speaker Enabled : Enables audible notification of alarms when box is checked. Speaker enabled checked on is default settings.

  • Page 25: Configure Dcp Channel

    5.6.1 Configure DCP Channel To set DCP configurations use the following steps: 1. Use the drop-down menus to select the protocol (DCP, DCP(x), DCP(f), DCP1) Select the port type (serial, TCP, or UDP). Enter your DCP address. Select your desired baud rate. Enter your RTS Lead and RTS Tail.

  • Page 26: Configure Alarm Channel

    Fig. 5.14 Configure the Reach-through port in the Channel tab Note: If you select Off in either the DCP or Alarm Channel, T/NG216 will not show the fields in the corresponding panels. 5.6.3 Configure Alarm Channel To set SNMP configurations use the following instructions: 1.

  • Page 27: Editor Relays Tab

    Field Description Get Community name for SNMP GET requests. Set Community name for SNMP SET requests. Trap Community name for SNMP Traps. Table 5.A SNMP system submenu field descriptions 4. Finally, set the Primary and Secondary Trap Destinations. Set the Trap Address and Trap Port to designate where you would like traps to be sent.

  • Page 28: Editor Alarms Tab

    Editor Alarms Tab All 16 discrete alarms are configured from Editor Mode, Alarms tab. Descriptions of the alarm point, polarity (normal or reversed), and a (YES/NO) option to use an SNMP Trap are configured in this tab — see Figure 5.17. Fig.

  • Page 29: Editor System Alarms

    Fig. 5.18 Use System Alarms tab to describe and set alarm traps Note : See section 9.1.3 (NetGuardian 216 System Alarms Map) for alarm mapping reference. To monitor your Internal System Alarms via T/NG216 you must enter a description in the System Alarms tab in the Editor Mode.

  • Page 30: Current Sequencing

    "Yes" under the Enabled column. Each of the NetGuardian 216 analog channels must be individually configured to monitor external analog data. The Analog to Digital Converters (ADCs) support a range of -90 to +90 VDC. There are four alarm trip points (thresholds) in ascending or descending order: major under, minor under, minor over, and major over.

  • Page 31: Changing Analog Channel Scaling References

    Note : The descending configuration is useful for monitoring battery voltage. In the descending configuration a 0 volt reading will alarm as a major under (MjU). The jumper inserts a 250 ohm shunt resistor across the input to convert the sensors current output to volts. Use ohms law to find the voltage drop across the 250 ohm shunt resistor (multiply the current by the resistance 250 ohms).

  • Page 32: Write To Nvram

    Fig. 5.24 Reboot button Fig. 5.25 Reboot confirmation box To reboot the NetGuardian 216 click on the red reboot button — see Figure 5.24. The reboot confirmation box will appear. Click Yes or No to confirm the reboot. Note: Use the reboot button only when you need to reboot the NetGuardian 216.

  • Page 33: Turn-Up And Test Mode

    Turn-up and Test Mode Fig. 6.1 The Turn-up and Test Mode screen — production model interface will display only 16 points Turn-up and Test Mode provides complete information about the configuration and operation of the NetGuardian 216. To go to the Turn-up and Test Mode you may click on the Turn-up and Test Mode icon on the initial prompt, click on the Turn-up and Test Mode icon on your toolbar menu, or go to the Action menu and select Turn-up and Test Mode.

  • Page 34: Alarm Tab

    Alarm Tab Fig. 6.2 The Alarm tab, displaying multiple alarm events The Alarm Tab displays and logs alarm events. The Alarm Tab consists of two elements, the Alarm Grid and the Log screen. The Alarm Grid represents each of the NetGuardian's 16 alarm points as a cell in a 64 x 3 grid. When an alarm event occurs, a red box will appear in the alarm point's cell.

  • Page 35: Real-Time Clock

    The NetGuardian also features a real-time clock. Each time an alarm occurs, a time-date stamp will be included in the SNMP trap. Also, the NetGuardian 216 clock will remember the current date and time settings if you need to reboot. You can configure the clock from the T/NG216 Turn-up and Test Mode, Date/Time screen manually or by clicking on the Sync With Local PC button.

  • Page 36: Analogs

    Fig. 7.1 Analyze Mode Analyze Mode is a powerful troubleshooting tool that enables you to monitor communication traffic between the NetGuardian 216 and its alarm collection master. Once you open the Analyze screen, T/NG216 automatically starts monitoring. Use the drop-down menu to switch...

  • Page 37: Updating Firmware

    DCP and SNMP Communication traffic will be displayed in either hexadecimal or ASCII. Data transmitted by the NetGuardian 216 is displayed in green text, and data received by the NetGuardian 216 is displayed in red text. To stop Analyze Mode monitoring, click the Stop button. To exit Analyze Mode, click the Exit button.

  • Page 38: Led Display

    While uploading, the Firmware Load screen will display the checksum, phase, the type of the task file, and the baud rate of your connection to the NetGuardian 216. The Completion bar indicates the percentage of completed update of the firmware upload.

  • Page 39: Reference Information

    * Indicates that the alarm point is defined but there is no description entered. ** "Undefined" indicates that the alarm point is not used. NetGuardian 216 Analog Map Display/Channel Analog on Display Analog 1 Analog 2 Table A.2 Analog display descriptions and Location numbers for the NetGuardian 216...

  • Page 40: Netguardian 216 System Alarms Map

    Set IP address to preventing transmission Drop 255.255.255.255 if LAN is not of a packet of data. used. Table A.3 System Alarms display descriptions and Location numbers for the NetGuardian 216 ** "Undefined" indicates that the alarm point is not used.

  • Page 41: Snmp Manager Functions

    SNMP Manager Functions The SNMP Manager allows the user to view alarm status, set date/time, issue controls, and perform a re-sync. The display and tables below outline the MIB object identifiers. Table B.1 begins with dpsRTU, however, the MIB object identifier tree has several levels above it. The full English name is as follows: root.iso.org.dod.internet.private.enterprises.dps-Inc.dpsAlarmControl.dpsRTU.
  • Page 42 8065–8128 9065–9128 Table B.2 Display descriptions and SNMP Trap numbers for the NetGuardian 216 * The Trap number ranges shown correspond to the point range of each display. For example, the SNMP Trap Set number for alarm 1 (in Display 1) is 8001, Set for alarm 2 is 8002, Set for alarm 3 is 8003, etc.

  • Page 43: Snmp Granular Trap Packets

    Table C.1 Example of SNMP headers and descriptions Table C.1 provides a list of the information contained in the SNMP Trap packets sent by the NetGuardian 216. SNMP Trap managers can use 1 of 2 methods to get alarm information: 1. - Granular traps (not necessary to define point descriptions for the NetGuardian 216) or 2.

  • Page 44: Color Code And Pinout For Standard Amphenol Wire

    Color Code and Pinout for Standard Amphenol Wire Fig. D.1 Color coding for 50-pin connector...

  • Page 45: Faq's

    A. You can send a Resync/Synch Request in your SNMP manger by setting your dpsRTUIdent mib to 1.3.6.1.4.1.2682.1.2.1. 5 and set the field to 1 — see section 8.3 (SNMP Manager Functions). Q. Which version of SNMP is supported by the SNMP agent on the NetGuardian 216? A. SNMP v1.

  • Page 46: Technical Support

    A. A point map is a single MIB leaf that presents the current status of a 64-alarm-point display in an ASCII- readable form, where a "." represents a clear and an "x" represents an alarm. Q. The NetGuardian 216 manual talks about two control relay outputs. How do I control these from my SNMP manager? A.
  • Page 47 Warranty DPS Telecom warrants, to the original purchaser only, that its products a) substantially conform to DPS' published specifications and b) are substantially free from defects in material and workmanship. This warranty expires two years from the date of product delivery with respect to hardware and ninety days from the date of product delivery with respect to software.
  • Page 48 “We protect your network like your business depends on it” www.dpstelecom.com 4955 E. Yale • Fresno, CA 93727 (559) 454-1600 • (800) 622-3314 • (559) 454-1688 fax...
