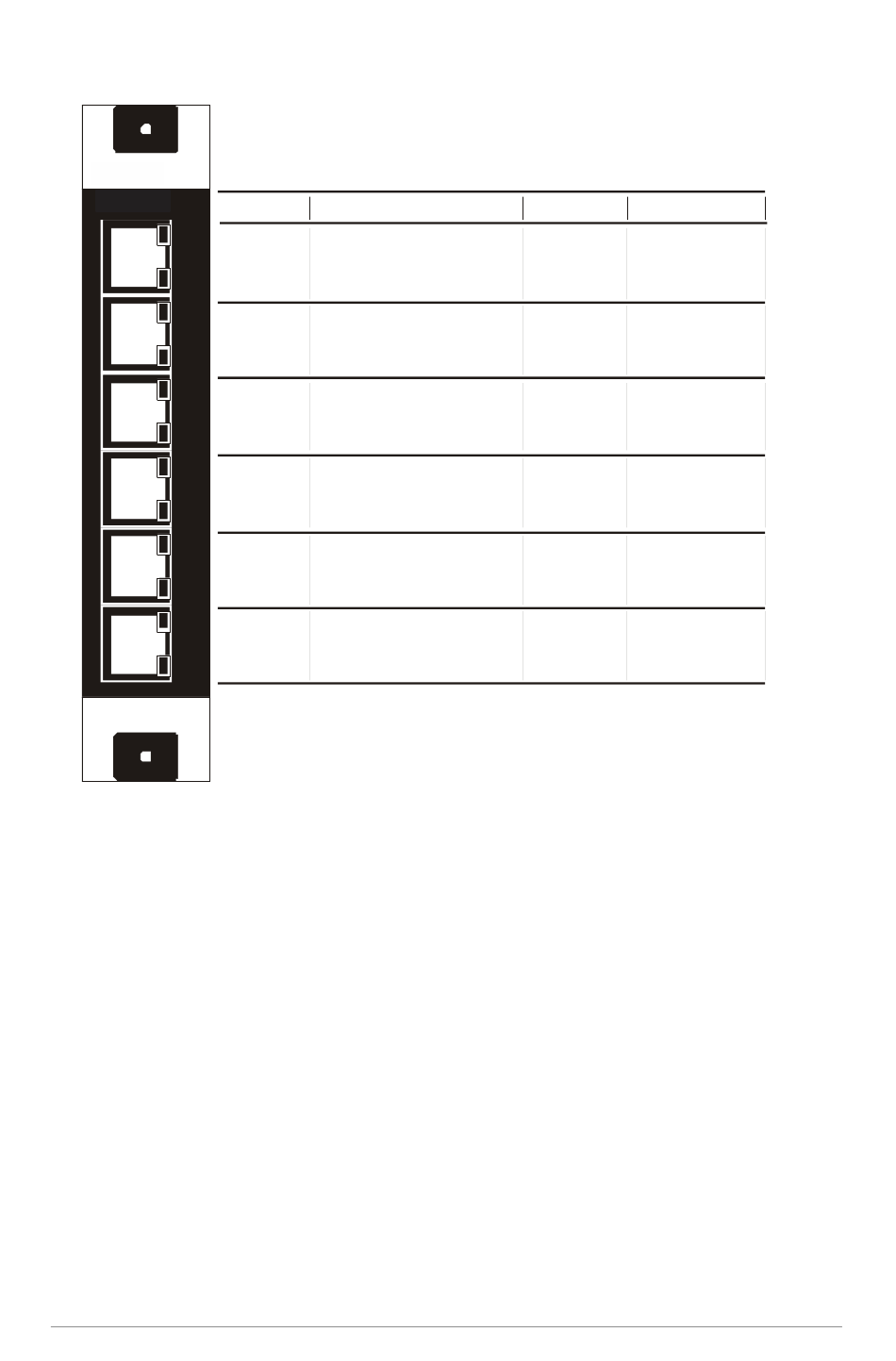

ETERNITY GE Card CO4+SLT16
L1 L2
Blue
1
2
3
4
5
6
49
Connector Color
RJ45-1 Blue - (Blue & White)
Orange - (Orange & White)
Green - (Green & White)
Brown - (Brown & White)
RJ45-2 Blue - (Blue & White)
Orange - (Orange & White)
Green - (Green & White)
Brown - (Brown & White)
RJ45-3 Blue - (Blue & White)
Orange - (Orange & White)
Green - (Green & White)
Brown - (Brown & White)
RJ45-4 Blue - (Blue & White)
Orange - (Orange & White)
Green - (Green & White)
Brown - (Brown & White)
RJ45-5 Blue - (Blue & White)
Orange - (Orange & White)
RJ45- 6 Blue - (Blue & White)
Orange - (Orange & White)
Connection H/w Port Offset
SLT 01
SLT 02
SLT 03
SLT 04
SLT 05
SLT 06
SLT 07
SLT 08
SLT 09
SLT 10
SLT 11
SLT 12
SLT 13
SLT 14
SLT 15
SLT 16
CO 01
CO 02
CO 03
CO 04
