• If the CPU Card is already installed, switch off power supply, unplug the power cord. Remove
the screws securing the card. Lift the levers on the mounting bracket to release the card. As
the card emerges from the slot, ease it out of the slot.
• Place the card carefully on a table with some packing underneath it. Avoid any physical
contact with the PCB part of the card as this could cause Electrostatic Discharge (ESD) and
may damage the hardware.
• The NX DBM VOCODER64 Module is to be mounted on the CPU board.

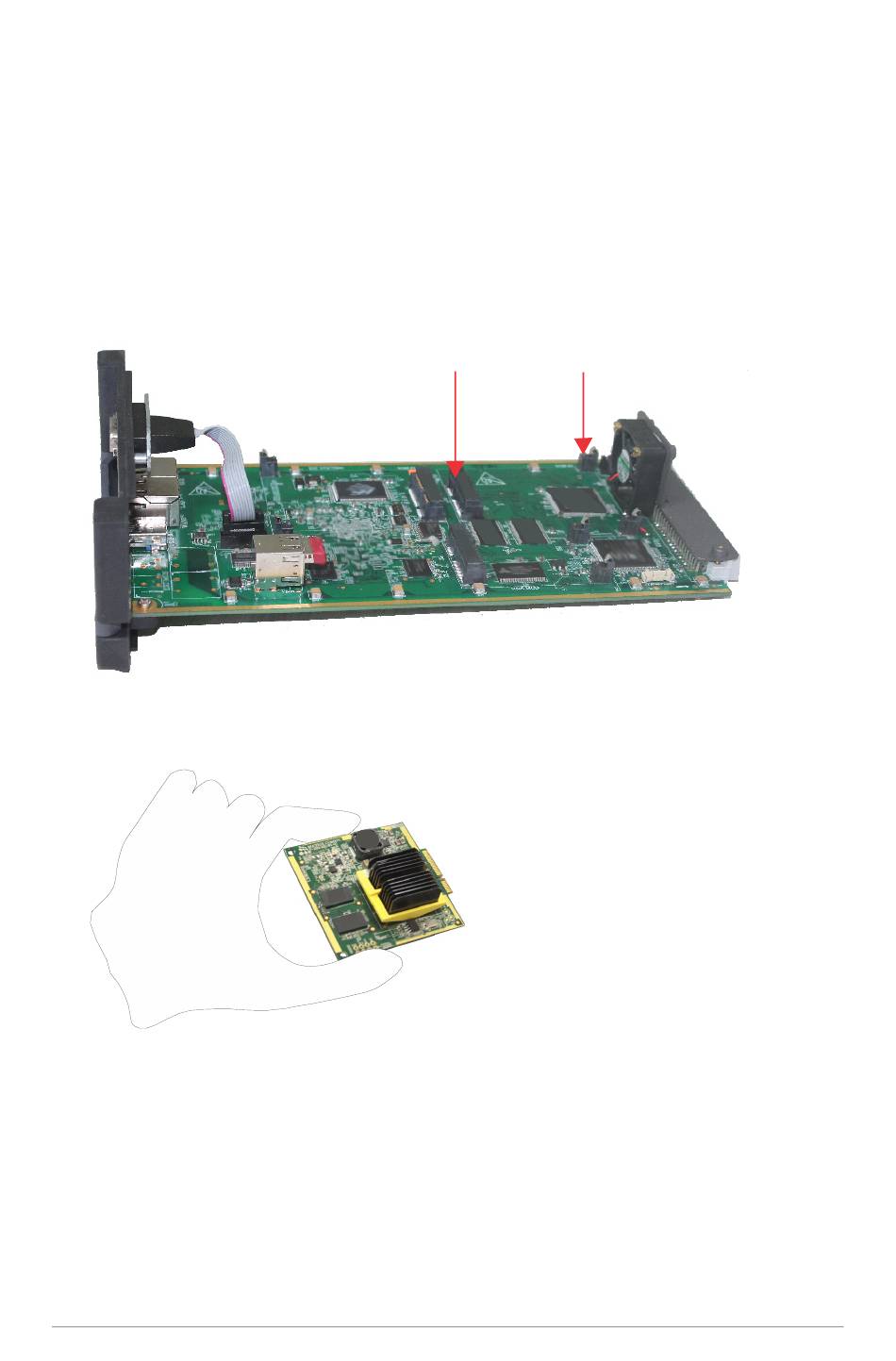

• Locate the PCI Connector and PCI Latch on the main-board.
Matrix SARVAM UMG Quick Start
PCI
PCI
Latch
Connector
