Cable Diagram for ETERNITY GENX Cards

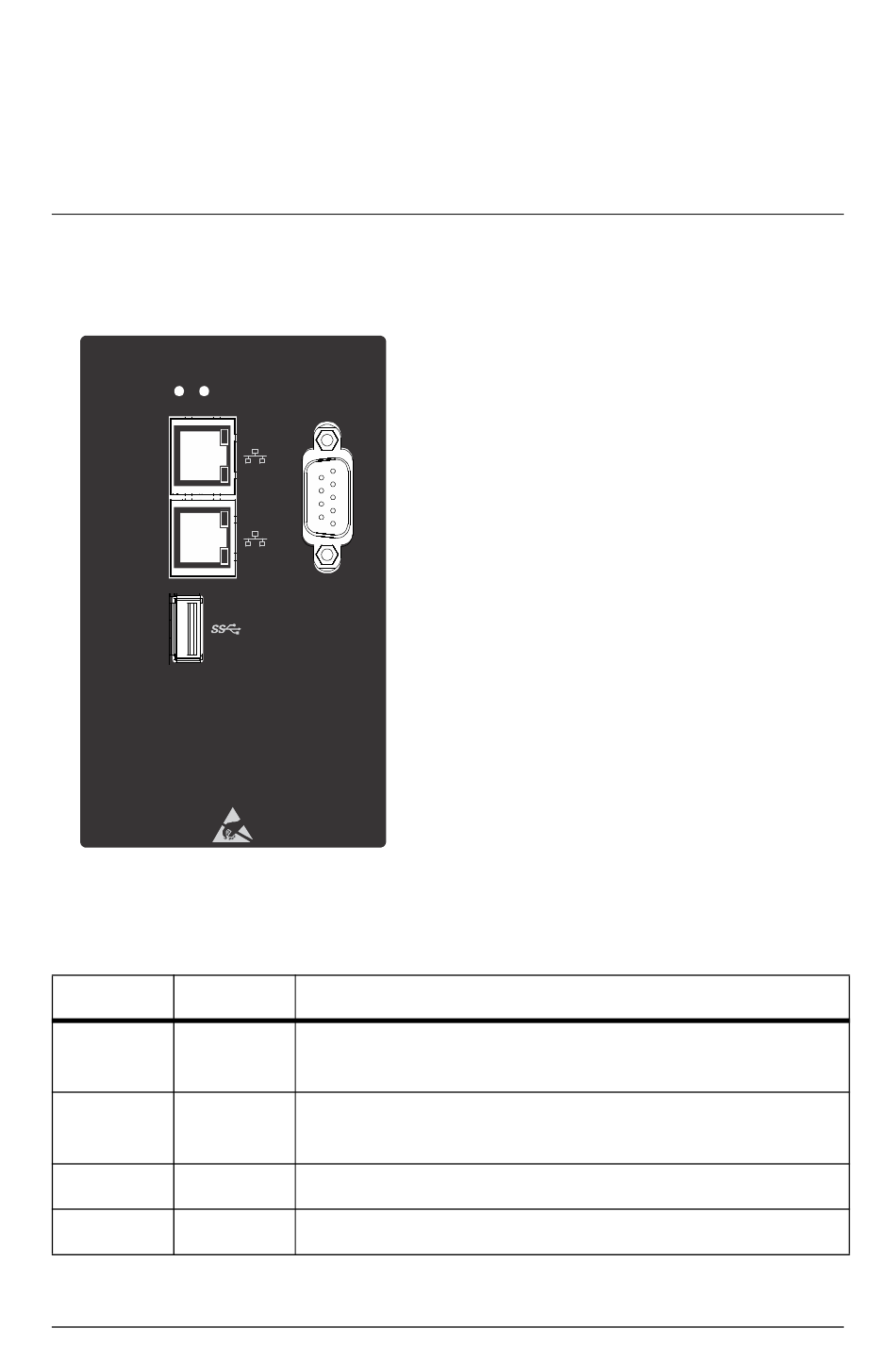

ETERNITY GENX CPU Card
L1 L2
LAN
WAN
USB
Ports and Connectors
Port Connector
LAN RJ45
WAN RJ45
USB -
COM DB-9
Matrix SARVAM UMG Quick Start

Appendix

COM 10101
Description
Used for connecting the Ethernet cable into LAN Port to connect
to a PC or a LAN Switch.
Used for connecting the Ethernet cable into WAN Port to connect
to a Broadband Router/Modem.
For future use
For future use
