• unscrew and remove the filler bracket of the slots you want to insert the cards.
• insert the cards into the Universal Slots. Make sure the connectors on the card and those
on the motherboard on the backplane make perfect contact.
• press down the levers of the card mounting brackets and secure the card in its slot with
the screws provided.
Refer "Hardware Overview"

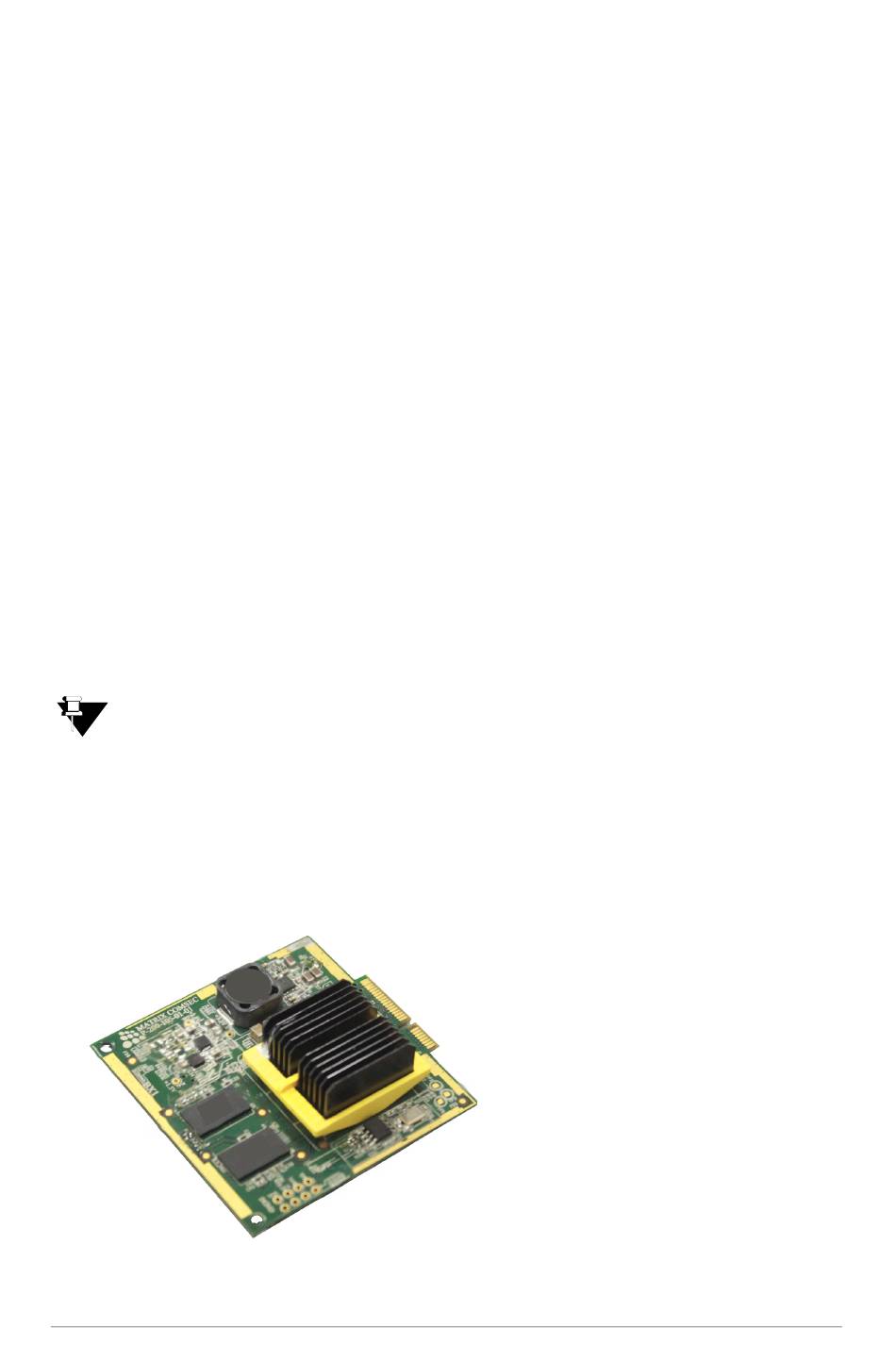

Installing the VOCODER Module

The system supports two NX DBM VOCODER64 Modules. Each module supports 64 Vocoder
Channels. You must purchase the modules separately. The system provides 4 pre-activated
Vocoder channels by default which can be used after installing NX DBM VOCODER64 module. If
you require more channels, you can purchase the licenses accordingly. Matrix provides two
licenses — SARVAM VOCODER CHNL4 and SARVAM VOCODER CHNL16.
If you require more than 64 Vocoder channels, you can install another NX DBM VOCODER64
Module.
The number of Vocoder Channels that will be supported would be as per the license you purchase.
However, during the Demo period, the number of Vocoder channels supported will be equal to the
total number of channels available in the Vocoder module/s installed in the System.
To install,
• Unpack the NX DBM VOCODER64 Module.
7
to know more about the Universal Slots.
