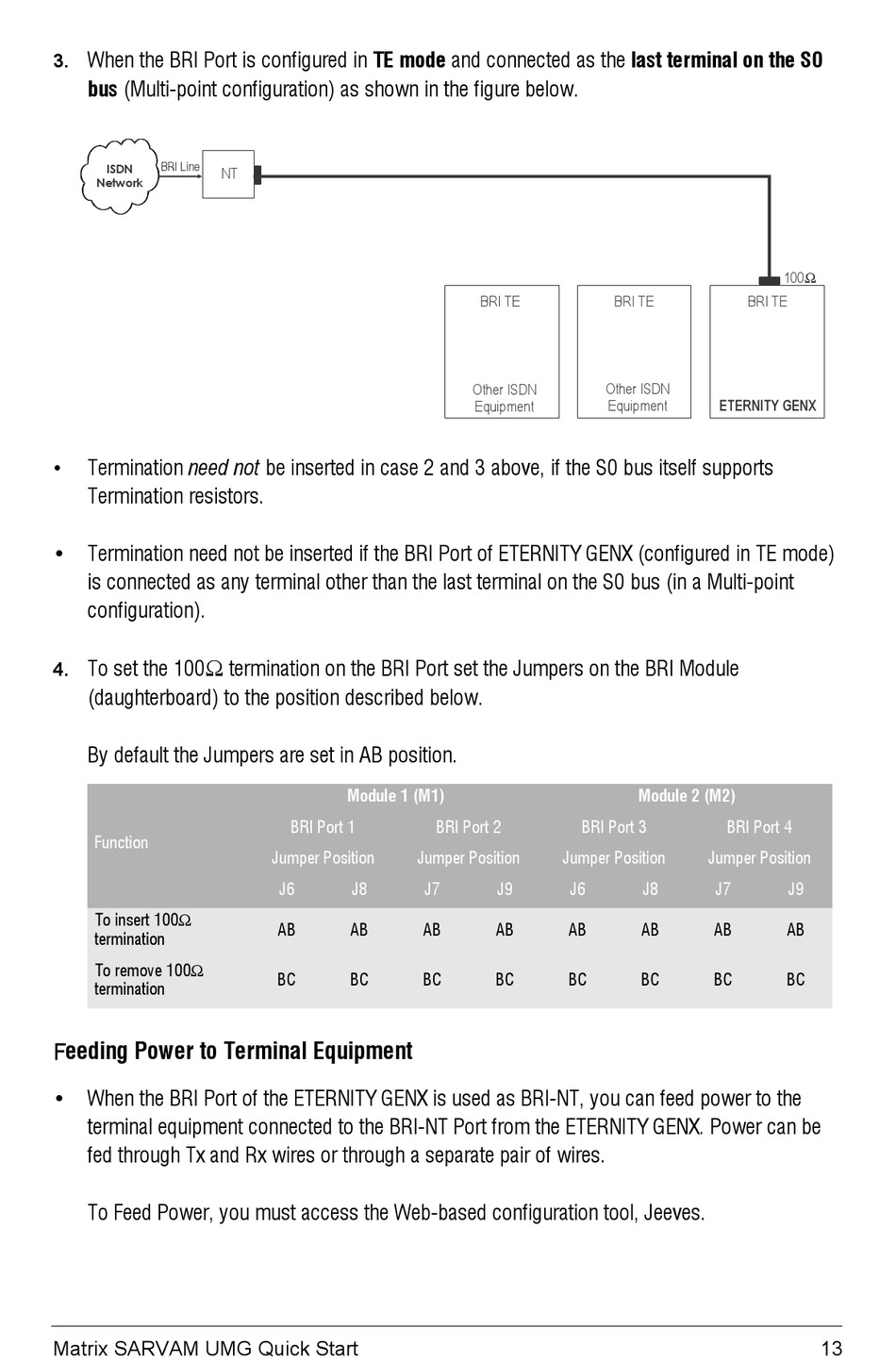

When the BRI Port is configured in TE mode and connected as the last terminal on the S0
3.
bus (Multi-point configuration) as shown in the figure below.
BRI Line
ISDN
NT
Network
Termination need not be inserted in case 2 and 3 above, if the S0 bus itself supports
•
Termination resistors.
• Termination need not be inserted if the BRI Port of ETERNITY GENX (configured in TE mode)
is connected as any terminal other than the last terminal on the S0 bus (in a Multi-point
configuration).

To set the 100
4.
(daughterboard) to the position described below.
By default the Jumpers are set in AB position.
Function
To insert 100
termination
To remove 100
termination
Feeding Power to Terminal Equipment
• When the BRI Port of the ETERNITY GENX is used as BRI-NT, you can feed power to the
terminal equipment connected to the BRI-NT Port from the ETERNITY GENX. Power can be
fed through Tx and Rx wires or through a separate pair of wires.
To Feed Power, you must access the Web-based configuration tool, Jeeves.
Matrix SARVAM UMG Quick Start
termination on the BRI Port set the Jumpers on the BRI Module
Module 1 (M1)
BRI Port 1
Jumper Position
J6 J8
AB AB
BC BC
BRI TE
Other ISDN
Equipment
BRI Port 2 BRI Port 3
Jumper Position Jumper Position
J7 J9 J6
AB AB AB
BC BC BC
BRI TE BRI TE
Other ISDN
Equipment
ETERNITY GENX
Module 2 (M2)
BRI Port 4
Jumper Position
J8 J7
AB AB
BC BC
100
J9
AB
BC
13
