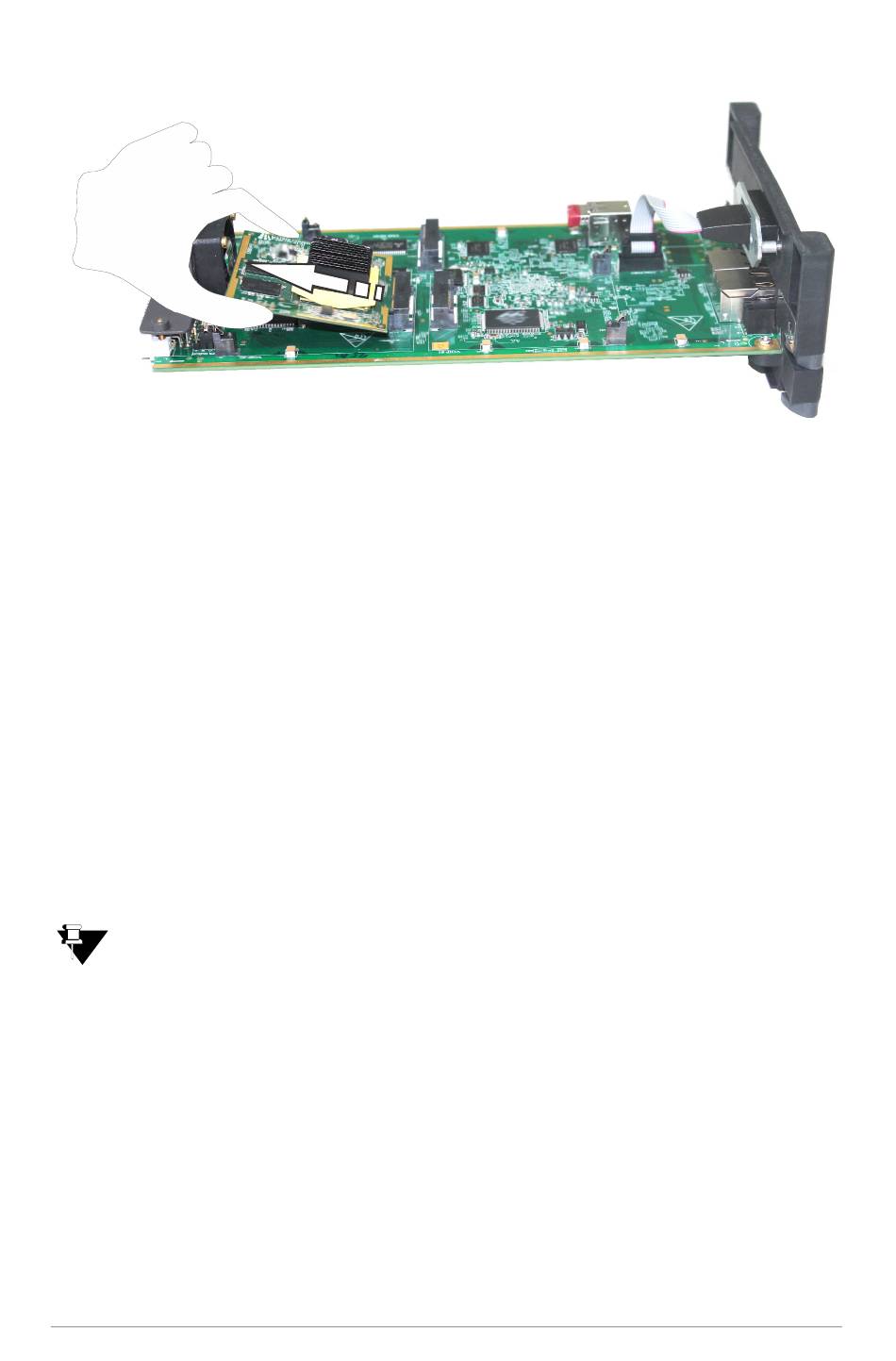

• Firmly hold the module and ease it out of the PCI connector carefully.

Installing SLT and CO Cards

• Unpack the SLT and/or CO cards. Remove the filler brackets of the universal slots and insert
the cards.
• Plug the MDF cables provided with each card into the connectors of the cards.
• Terminate the free ends of the MDF cables from the card connectors into the Krone modules
of the Main Distribution Frame. Refer the cable connections given in the
terminating the cables into the Main Distribution Frame.
• Connect Single Line Analog Telephone instruments to the SLT ports over the MDF.
• Connect Two Wire Trunk (Analog Trunk) lines to the CO ports over the MDF.
The CO Card supports Power Fail Transfer (PFT). Refer to the topic Power Fail Transfer in the SARVAM
UMG System Manual for details.
