Installing the Device
2.4.2 Mounting the Device to a Panel
Removing the Device
To remove the device from a DIN rail, do the following:
1.
2.
3.
2.4.2

Mounting the Device to a Panel

For panel installations, the RUGGEDCOM RX1400 can be equipped with panel
adapters pre-installed on each side of the chassis. The adapters allow the device to
be attached to a panel using screws.
14
Insert a flathead screwdriver into the slot of the sliding release and move it
down.
1
DIN Rail
1
DIN Rail Adapter
2

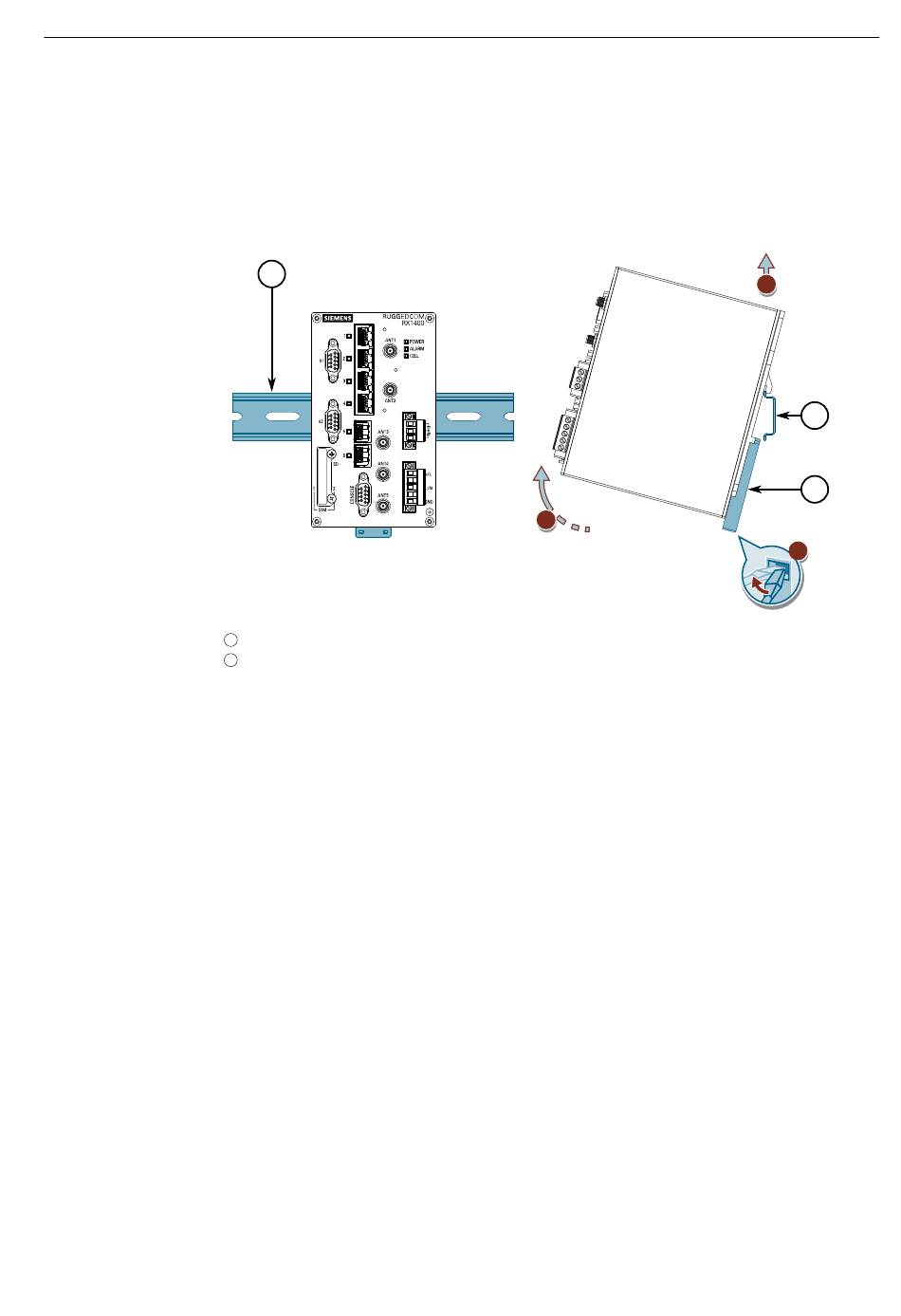

Figure 2.3 Removing the Device from a DIN Rail
Swing the bottom of the device away from the DIN rail.
Lift the device off the DIN rail.
2
Installation Manual, 01/2021, C79000-G8976-1103-17
3
1
2
1
RUGGEDCOM RX1400
