To mount the device to a panel, do the following:
1.
2.
2.4.3
Mounting the Device to a Rack
For rack mount installations, the RUGGEDCOM RX1400 can be equipped with rack
mount adapters pre-installed on the chassis.
Electrical/mechanical hazard – risk of damage to the device
Before installing the device in a rack, make sure of the following:
•
•
•
RUGGEDCOM RX1400
Installation Manual, 01/2021, C79000-G8976-1103-17
Place the device against the panel and align the adapters with the mounting
holes.
1
2
Screw
1
Panel Adapter
2

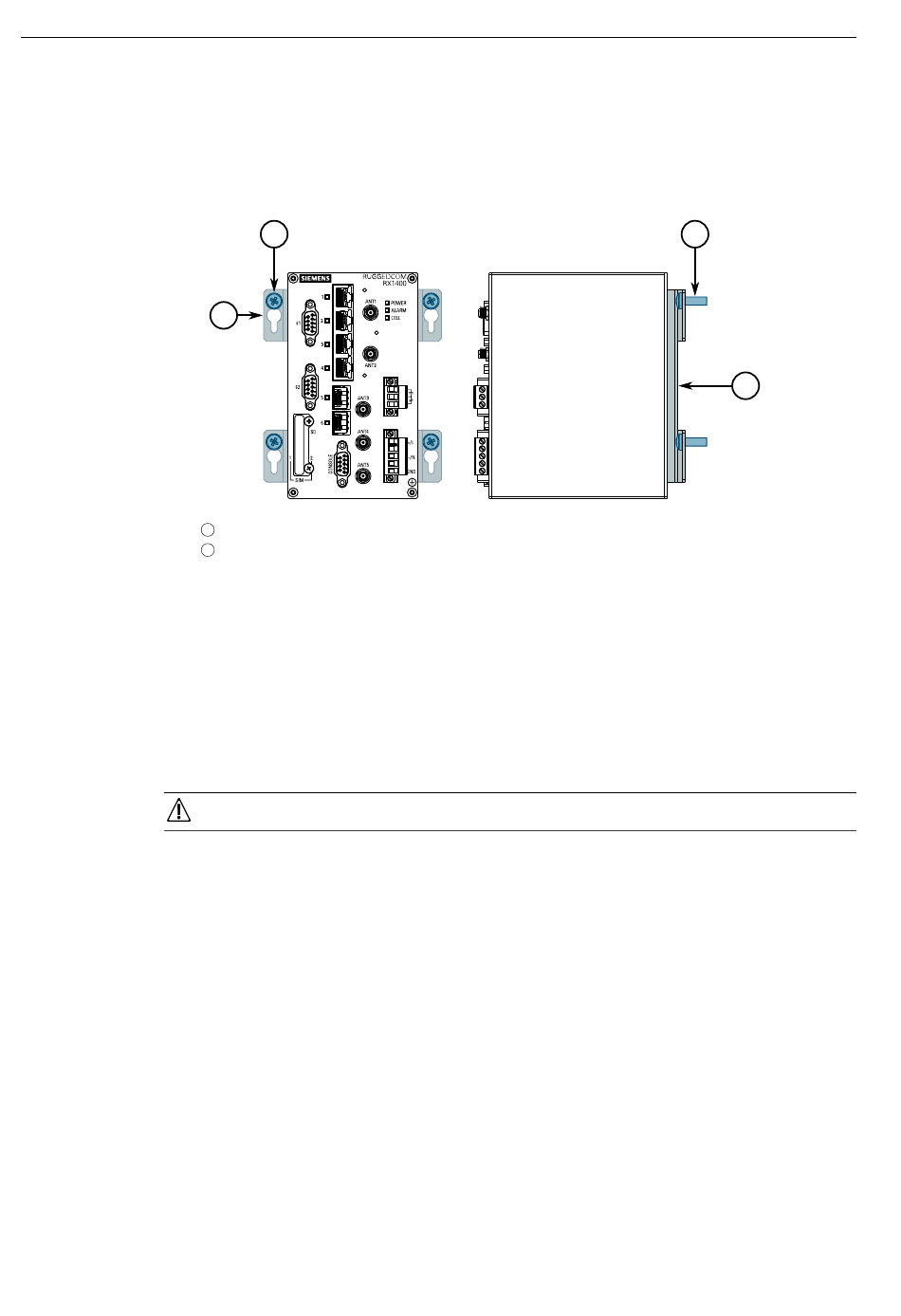

Figure 2.4
Panel Mounting
Install the supplied screws to secure the adapters to the panel.
NOTICE
When installing the device in a closed or multi-device rack, be aware the
operating ambient temperature of the rack may be higher than the ambient
temperature of the room. Make sure the rack is installed in a suitable
environment that can withstand the maximum ambient temperature generated
by the rack.
Make sure each device in the rack is separated by at least one rack-unit of space,
or 44 mm (1.75 in), to promote convectional airflow. Forced airflow is not
required. However, any increase in airflow will result in a reduction of ambient
temperature and improve the long-term reliability of all equipment mounted in
the rack space.
Do not exceed the maximum number of devices or weight restrictions specified
by the rack manufacturer.
Installing the Device
2.4.3 Mounting the Device to a Rack
1
2
15
