Chapter 2
Installing the Device
The following sections describe the various methods of mounting the device:
•
Section 2.1.1, "Mounting the Device on a DIN Rail"
•
Section 2.1.2, "Mounting the Device to a Panel"
Section 2.1.1
Mounting the Device on a DIN Rail
For DIN rail installations, the RUGGEDCOM RS940G can be equipped with a DIN rail bracket pre-installed on the
back of the chassis. The bracket allows the device to be slid onto a standard 35 mm (1.4 in) DIN rail.
To mount the device to a DIN rail, do the following:
1.
Align the slot in the bracket with the DIN rail.
1

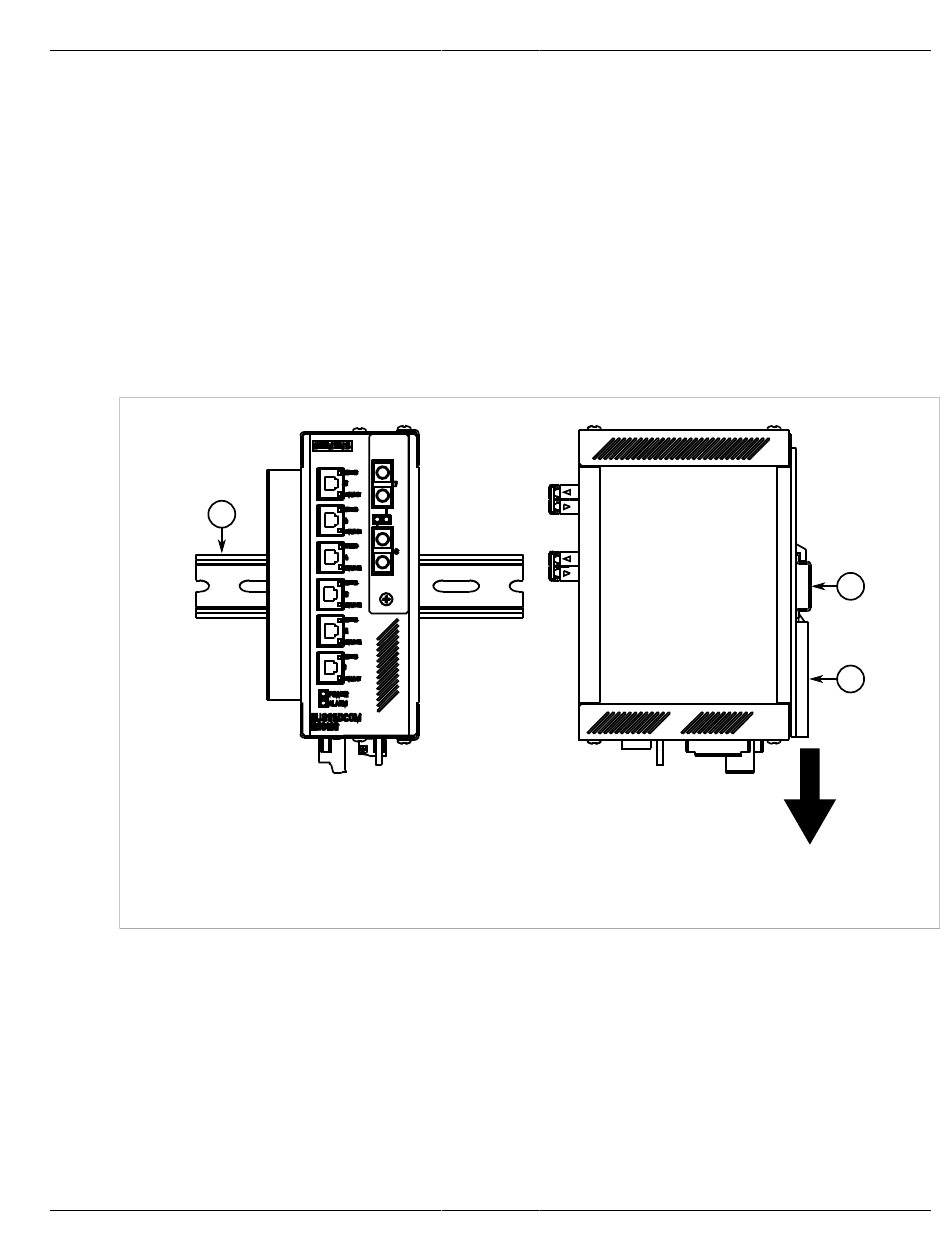

Figure 2: DIN Rail Mounting
1. DIN Rail
2. DIN Rail Bracket
2.
Pull the release on the bracket down and slide the device onto the DIN rail. Let go of the release to lock the
device in position.
Section 2.1.2
Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RS940G can be equipped with panel adapters pre-installed on the top
and bottom of the chassis. The adapters allow the device to be attached to a panel using screws.
To mount the device to a panel, do the following:
6
RUGGEDCOM RUGGEDCOM RS940G
Installation Guide
1
2
Mounting the Device on a DIN Rail
