Device Management
This section describes how to connect to and manage the device.
3.1
Connecting to the Device
The following describes the various methods for accessing the RUGGEDCOM RX1400
console and Web interfaces on the device. For more detailed instructions, refer to the
RUGGEDCOM ROX-II Configuration Manual for the RUGGEDCOM RX1400.
Serial Console Port
Connect a PC or terminal directly to the serial console port to access the boot-time
control and RUGGEDCOM ROX-II console interface.
Note
The serial console port is intended to be used only as temporary connections during
initial configuration or troubleshooting.
The serial console port implements RS-232 on a female DB9 connector. The following
is the pin-out for the port:

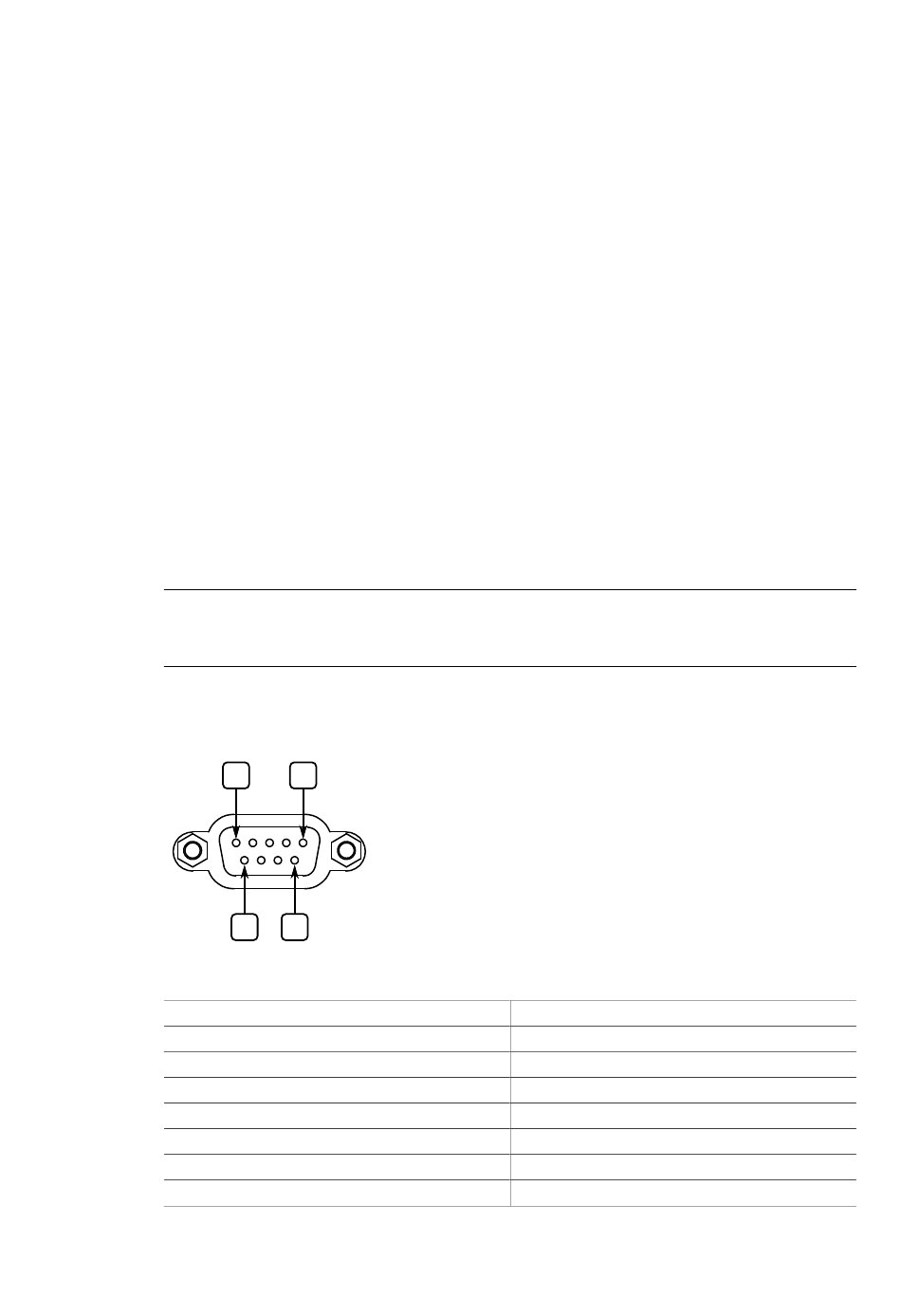

Figure 3.1
RUGGEDCOM RX1400
Installation Manual, 01/2021, C79000-G8976-1103-17
5
1
9
6
Serial DB9 Console Port
Pin
1
2
3
4
5
6
7
Name
Reserved (Do Not Connect)
Output Signal
Input Signal
Reserved (Do Not Connect)
Ground
Reserved (Do Not Connect)
Reserved (Do Not Connect)
3
29
