6. Configuration via Web Page

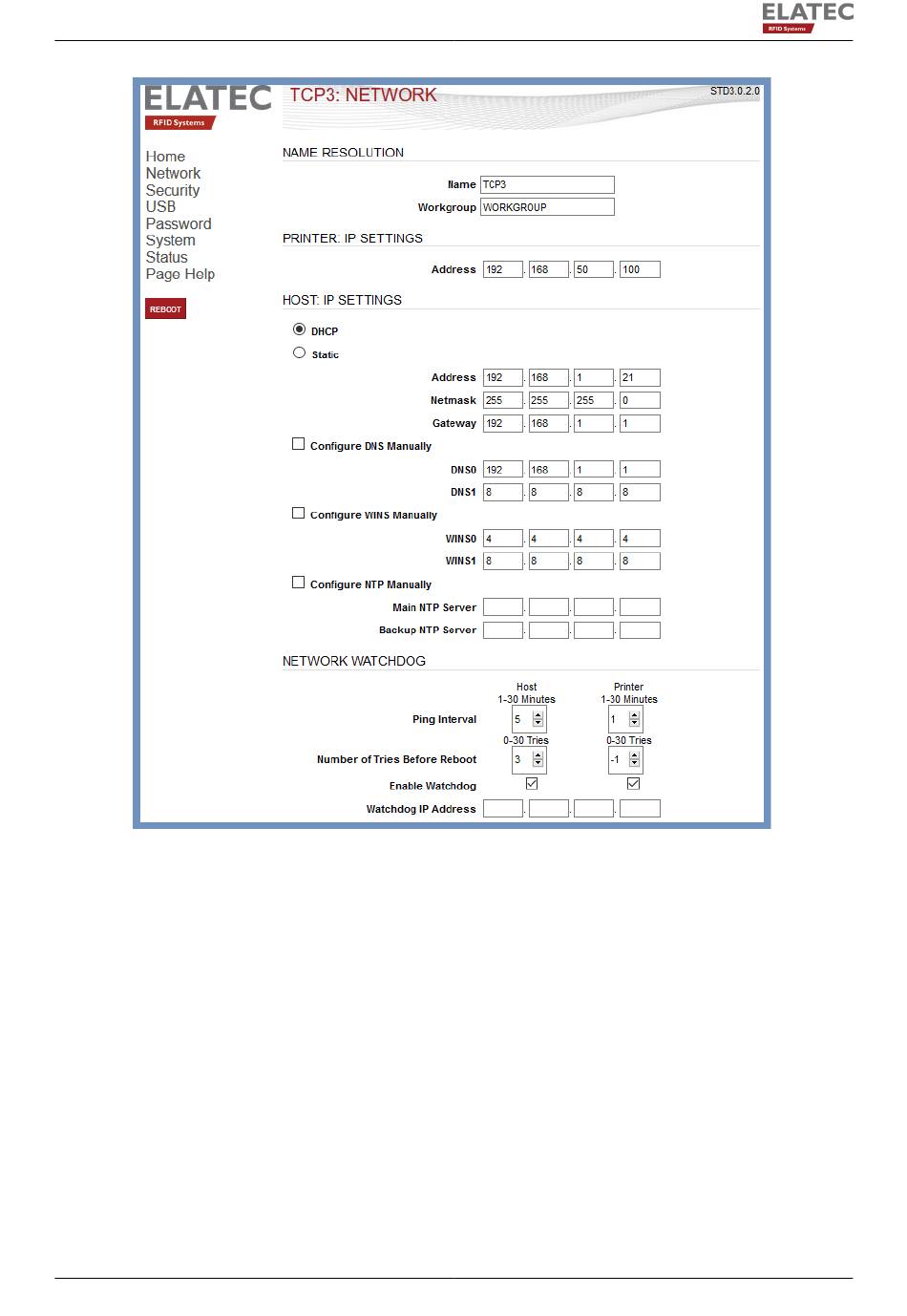

Figure 6.3.: Network Configuration of TCP3
Configure WINS Manually If this is selected, the user is responsible to manually enter the IP addresses
for the primary and secondary WINS server. If DHCP is selected, this field will be greyed out and the
converter will use the WINS information provided by the DHCP server.
Configure NTP Manually Normally the converter will reach out to the DHCP server for Network Time
(NTP). If the DHCP server does not support NTP or if the converter is configured for a static IP address
NTP will need to be configured manually. In this case the user is responsible to select the check box then
manually enter the IP addresses for the primary and secondary NTP servers. If this box is not checked,
the converter will use the DHCP server for NTP. If the IP address is entered incorrectly or if that address
does not actually support NTP, status logging will not operate without a valid time source.
Network Watchdog TCP3 can be configured to monitor the health of both the Host and Printer ports. If
either port is connected and active, the converter will ping that port as often as selected by the customer.
Page 34 of 61
