5. Configuration via TCP3 Config

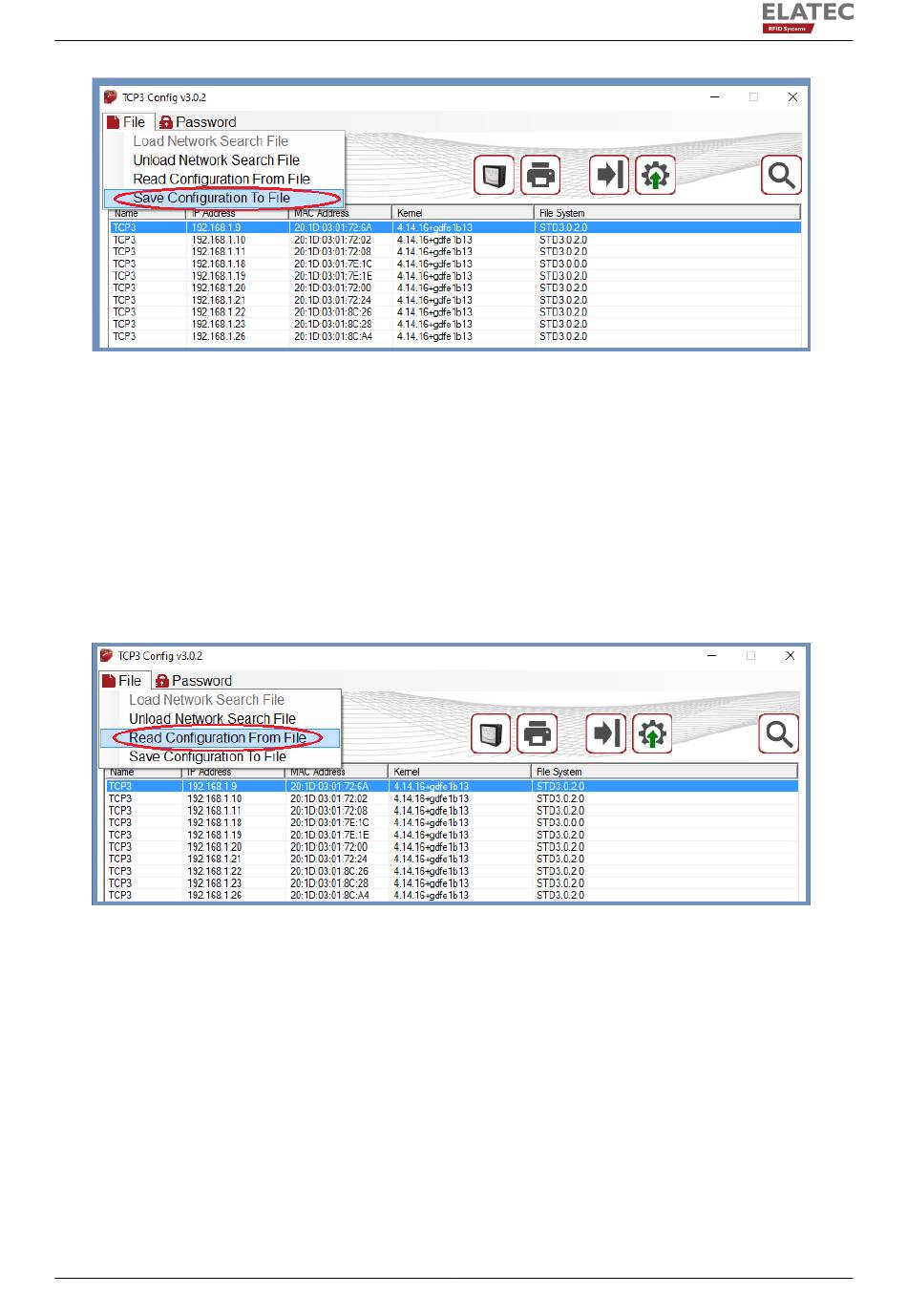

Figure 5.10.: Save Configuration to a File
Once the configuration has been saved to the internal memory used by TCP3 Config, the option to "Save
Configuration to a File" will no longer be greyed out and the configuration can be saved to a file on the
computer. Select "File" and then select "Save Configuration to File" from the drop down menu. When the
standard Windows file save menu appears, navigate to a storage folder, name the file appropriately then
select Save.
5.10. Read Configuration from a File
Figure 5.11.: Read Configuration from a File
TCP3 Config offers the ability to load a configuration previously saved in a file on the computer. This
enables the configuration to be sent to one or many converters which have been discovered by TCP3
Config.
To retrieve a previously saved file, refer to the following figure then select "File" and then select "Read
Configuration From File" from the drop down menu. When the standard Windows file menu appears,
navigate to a storage folder where previously saved configurations have been stored. Select the file then
select Open.
