4. Discovering TCP3 Devices on the network

4.4. TCP3 Display List Sort

The contents of the display window can be sorted by each of the table headings. Selecting a column
heading once will sort in ascending order. Selecting the heading a second time will reverse the sort
order.
Once the converter or converters are discovered, one at a time they can be selected and configured. If the
printer attached to the selected TCP3 has a web front-end on port 80, it can be accessed by clicking the
button "Open the Homepage of the Printer" as shown in Figure 4.8.
The web page view of the converter can be reached by selecting the converter followed by selecting "Open
the Homepage of the Converter". This will open the homepage of the selected TCP3 using the default web
browser.

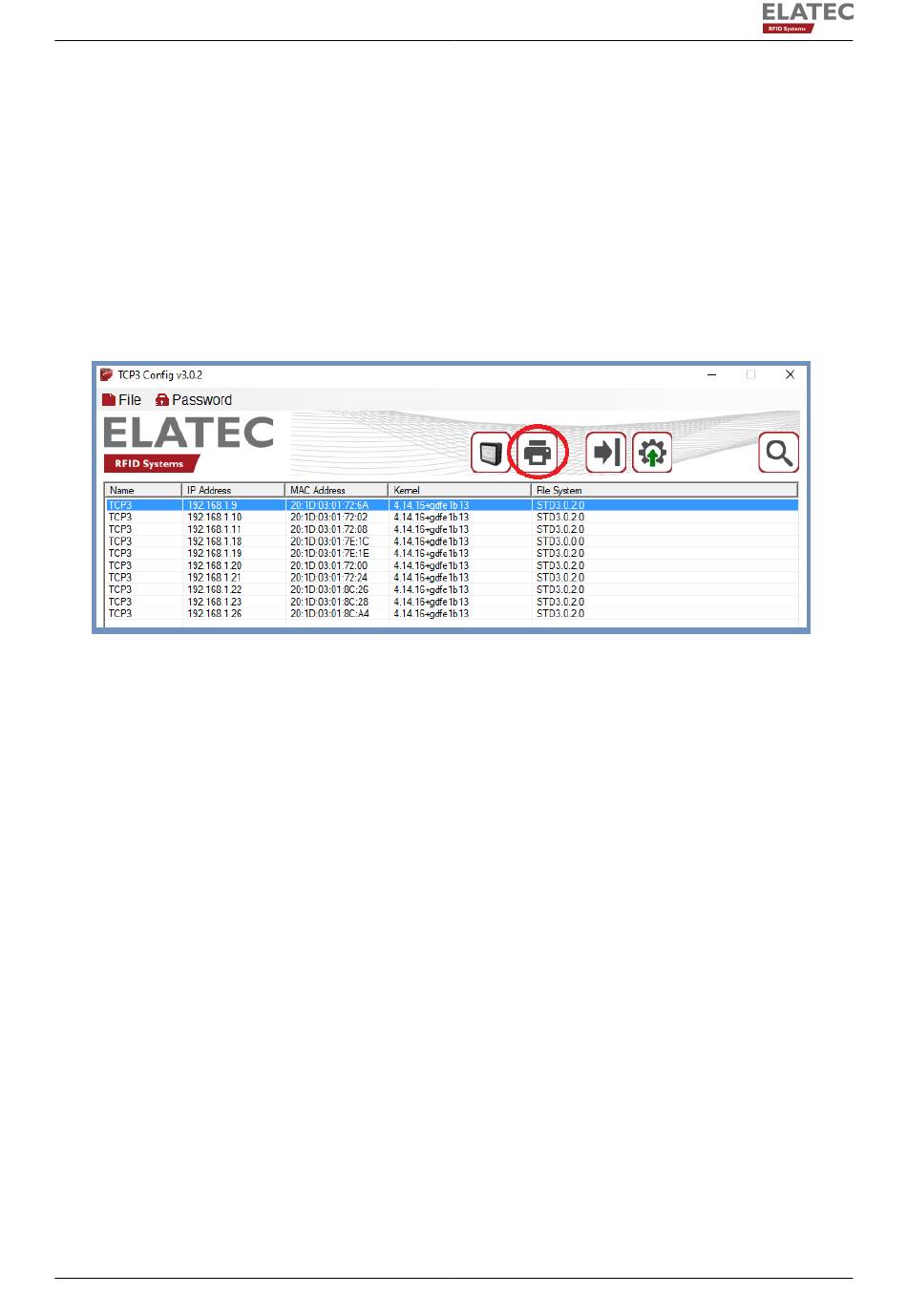

Figure 4.8.: Opening the Homepage of the printer
