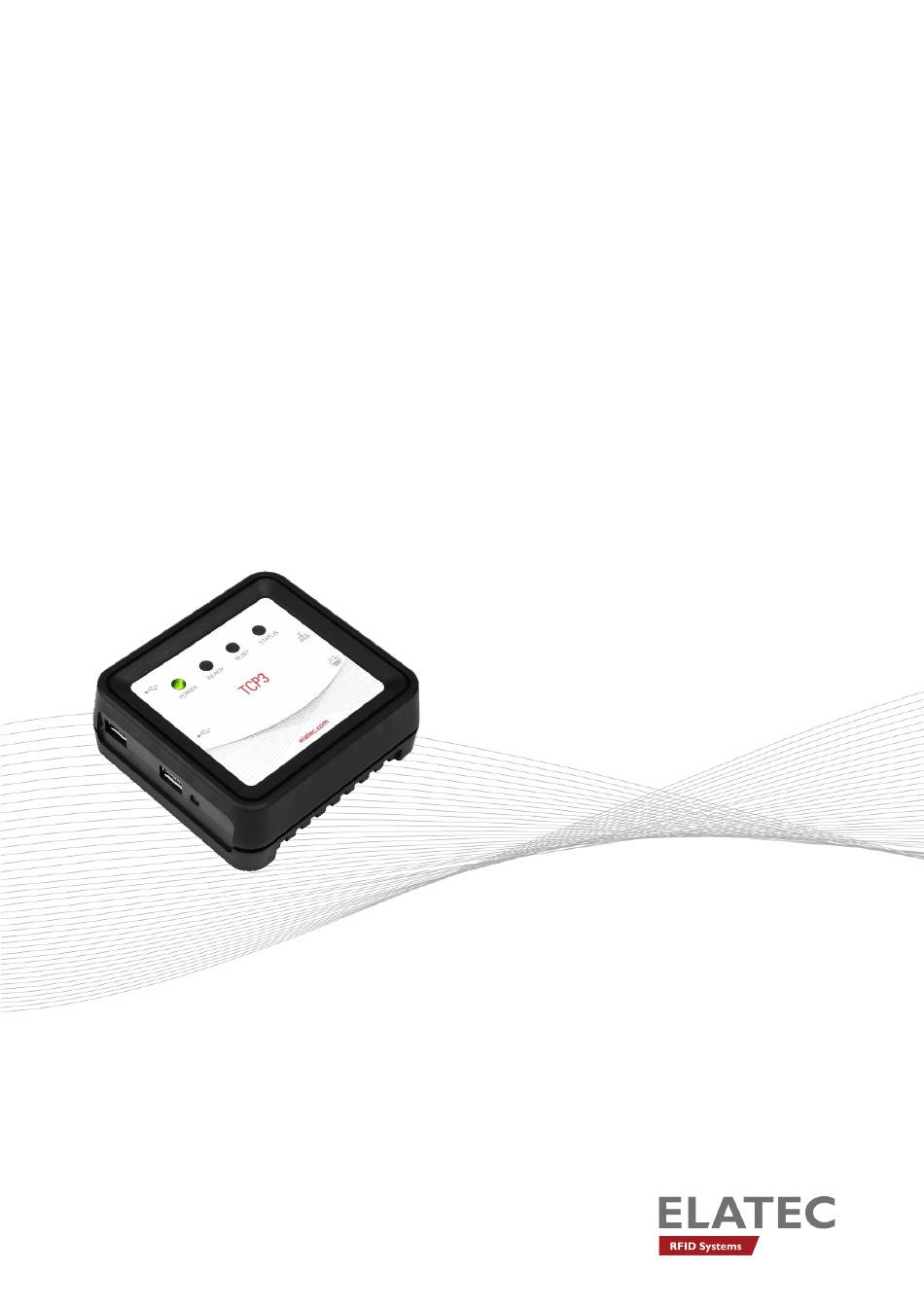

- Page 1 TCP3 Authentication / Release Station USER MANUAL...
-
Page 2: Table Of Contents
POWER UP ..................................8 CONFIGURATION ................................9 REQUIREMENTS ................................9 TCP3 CONFIG ................................9 CONFIGURATION VIA WEB PAGE ..........................9 REFRESH THE FIRMWARE ON TCP3 ........................10 FIRMWARE HISTORY ..............................10 COMPLIANCE STATEMENTS ............................11 EU ....................................11 FCC ....................................11 IC .................................... -
Page 3: Introduction
Depending on your product configuration, the product is delivered with different components and accessories, such as cables, as part of a kit. For more information about the delivered components and accessories, refer to your delivery note, consult the ELATEC website or contact ELATEC. -
Page 4: Intended Use
Pull Printing feature. TCP3 can be configured as a two-port network router that is designed to be connected between a network printer and a print server. TCP3 is equipped with two USB 3.0 ports. A card reader or keypad can be connected to either or both of these two ports and can be used to send data to the authentication server. -
Page 5: Safety Information
The user is liable for the use of spare parts or accessories other than the ones sold or recommended by ELATEC. ELATEC excludes any liability for damages or injuries resulting from the use of spare parts or accessories other than the ones sold or recommended by ELATEC. -
Page 6: Technical Data
Power supply External power supply 5 V or internal Power over Ethernet Current consumption Max. 3 A depending on external load Hardware The following LEDs and connectors are located on the TCP3 converter: “POWER” LED “Ready” LED “Busy” LED “Status” LED... - Page 7 Table 1 - supported USB devices Ethernet ports There are also two Ethernet ports on TCP3: the Host port is used to connect TCP3 to the local network and the Printer port is used to connect a printer to TCP3.
-
Page 8: Mode Of Operation
POWER UP TCP3 is offered with either a 5-volt wall power supply or Power over Ethernet (PoE). As TCP3 powers up, its operating status can be determined through the LED panel located on the face of the unit. The converter typically takes 45 seconds to boot up. This time will be extended by up to two additional minutes if there is no host network connection as the converter continually attempts to connect. -
Page 9: Configuration
TCP3 CONFIG TCP3 Config is a tool that can be used to discover all of the TCP3 devices connected to the network. It can also read the configuration of the selected converter, enable editing of that configuration and can send that updated configuration back to the same converter to multiple converters. -
Page 10: Refresh The Firmware On Tcp3
REFRESH THE FIRMWARE ON TCP3 As a customer of ELATEC, each user can receive a link for the TCP3 AdminPack. The compressed AdminPack for TCP3 contains the following files: • Technical Manual • Zipped Firmware Image • TCP3 Config Tool •... -
Page 11: Compliance Statements
7 COMPLIANCE STATEMENTS TCP3 is in compliance with the EU directives and regulations as listed in the respective EU declarations of conformity (cf. TCP3 EU Declaration of Conformity and TCP3 POE EU Declaration of Conformity). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 12: United Kingdom
UNITED KINGDOM TCP3 complies with the requirements of the UK legislations and other regulations as listed in the respective UK declarations of conformity (cf. TCP3 UK Declaration of Conformity and TCP3 POE UK Declaration of Conformity). The importer is responsible for applying the following information to the packaging of the product: •... -
Page 13: Appendix
Refers to Directive 2012/19/EU of the European Parliament and of the Council of the European Union B – RELEVANT DOCUMENTATION ELATEC documentation • TCP3 data sheet • TCP3 Technical Description • TCP3 Technical Manual • TCP3 Quick Start Guide © 2022 ELATEC GmbH – TCP3 user manual DocRev3 – 03/2022 Page 13 of 14... - Page 14 Elatec reserves the right to change any information or data in this document without prior notice. Elatec declines all responsibility for the use of this product with any other specification but the one mentioned above. Any additional requirement for a specific customer application has to be validated by the customer himself at his own responsibility. Where application information is given, it is only advisory and does not form part of the specification.
