Elatec TCP3 User Manual
Hide thumbs
Also See for TCP3:
- Technical manual (61 pages) ,
- User manual (14 pages) ,
- Quick start manual (5 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Elatec TCP3
Summary of Contents for Elatec TCP3
- Page 1 TCP3 User Manual DocRev 2...
- Page 2 TCP3 is equipped with two USB 3.0 ports. A card reader or keypad can be connected to either or both of these two ports and can be used to send data to the authentication server.

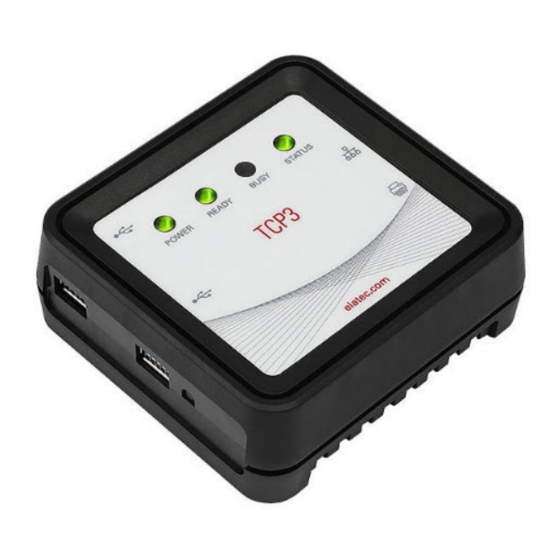

- Page 3 ELATEC GmbH 2. Hardware 2.1 Overview The following LEDs and connectors are located on the TCP3 converter: Page 3 of 12...
-
Page 4: Usb Ports
TCP3. Up to two readers can be connected simultaneously. Currently USB Human Interface Device also known as keyboard mode is supported. TCP3 can provide up to 1.5 A current shared between the two USB ports. This means if the peripheral connected to one port is drawing 1.0 A, the second peripheral can draw up to 0.5 A before both ports will be turned off... -
Page 5: Ethernet Ports
Supported USB devices 2.3 Ethernet ports There are also two Ethernet ports on TCP3: the Host port is used to connect TCP3 to the local network and the Printer port is used to connect a printer to TCP3. Page 5 of 12... -
Page 6: Typical Application
3.2 Power up TCP3 TCP3 is offered with either a 5-volt wall power supply or Power over Ethernet (PoE). As TCP3 powers up, its operating status can be determined through the LED panel located on the face of the unit. - Page 7 Technical Manual. 4.2 TCP3 Config TCP3 Config is a tool that can be used to discover all of the TCP3 devices connected to the network. It can also read the configuration of the selected converter, enable editing of that configuration and can send that updated configuration back to the same converter to multiple converters.
- Page 8 Once a TCP3 has been selected from the list, clicking on “Open the Homepage of the TCP3” or typing the <ip of a TCP3>:81 in the web browser will launch the homepage of the TCP3. If prompted, enter the user name and password.
-
Page 9: Firmware History
ELATEC GmbH TCP3 is equipped with the ability to upgrade its firmware using 3 different methods: 1. Remotely using the TCP3 Config tool 2. Remotely from the TCP3 System web page 3. Locally via a USB flash drive Please refer to the Technical Manual for more information about the firmware upgrade. -
Page 10: Technical Data
ELATEC GmbH 6. Technical data Please refer to the TCP3 data sheet for technical data. 7. Compliance statements A. FCC Notice NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. - Page 11 8. Disclaimer ELATEC reserves the right to change any information or data in this document without prior notice. The distribution and the update of this document is not controlled. ELATEC declines all responsibility for the use of product with any other specifications but the ones mentioned above.
-
Page 12: Service Address
ELATEC GmbH 9. Service address In case of any technical questions, please contact: ELATEC GmbH Zeppelinstr. 1 82178 Puchheim Germany Phone: +49 (0) 89 5529961 0 Fax: +49 (0) 89 5529961 129 E-mail: info-rfid@elatec.com Page 12 of 12...
