5. Configuration via TCP3 Config

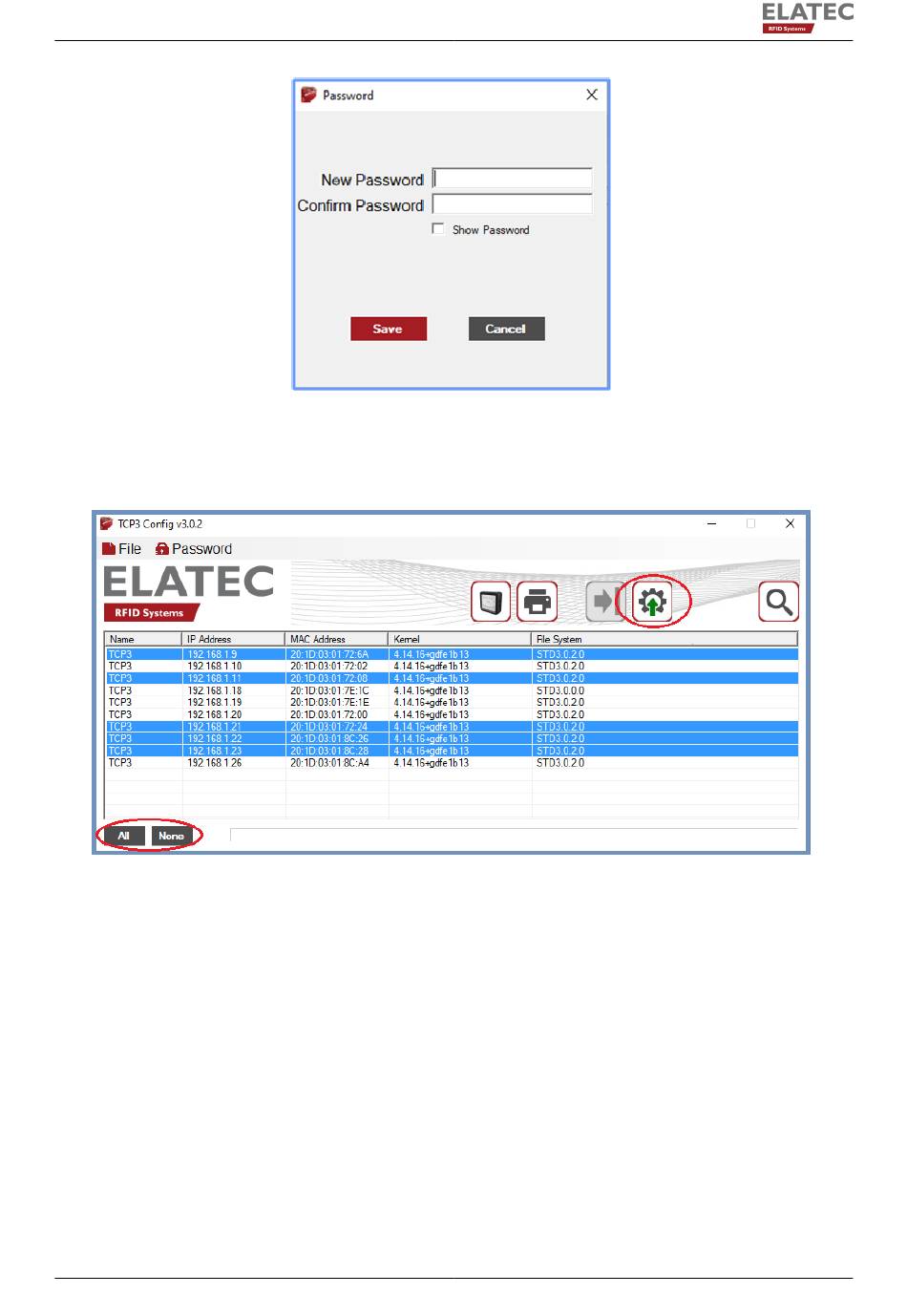

Figure 5.8.: Enter Custom Password Screen
address to a number of converters could disrupt the network so these are locked out.
Figure 5.9.: Select and Load Converter Screen

5.8. Status Window

The TCP3 response to each of these commands will be presented in the Log window. This window can be
cleared at any time by selecting the Clear button.
5.9. Saving Configuration to a File
TCP3 Config offers the ability to save a particular configuration to a file on the computer. This enables
the configuration to be archived and later retrieved for installation as new equipment is rolled out. It also
enables the configuration to be consistent across multiple facilities which might be managed by multiple
individuals.
Page 28 of 61
