6. Configuration via Web Page
6. Configuration via Web Page

6.1. Open the Homepage of a selected TCP3

Returning to the TCP3 Config screen from section 3 we once again select "Open the Homepage of the
selected TCP3". This will take us to the home screen shown in figure 6.2.

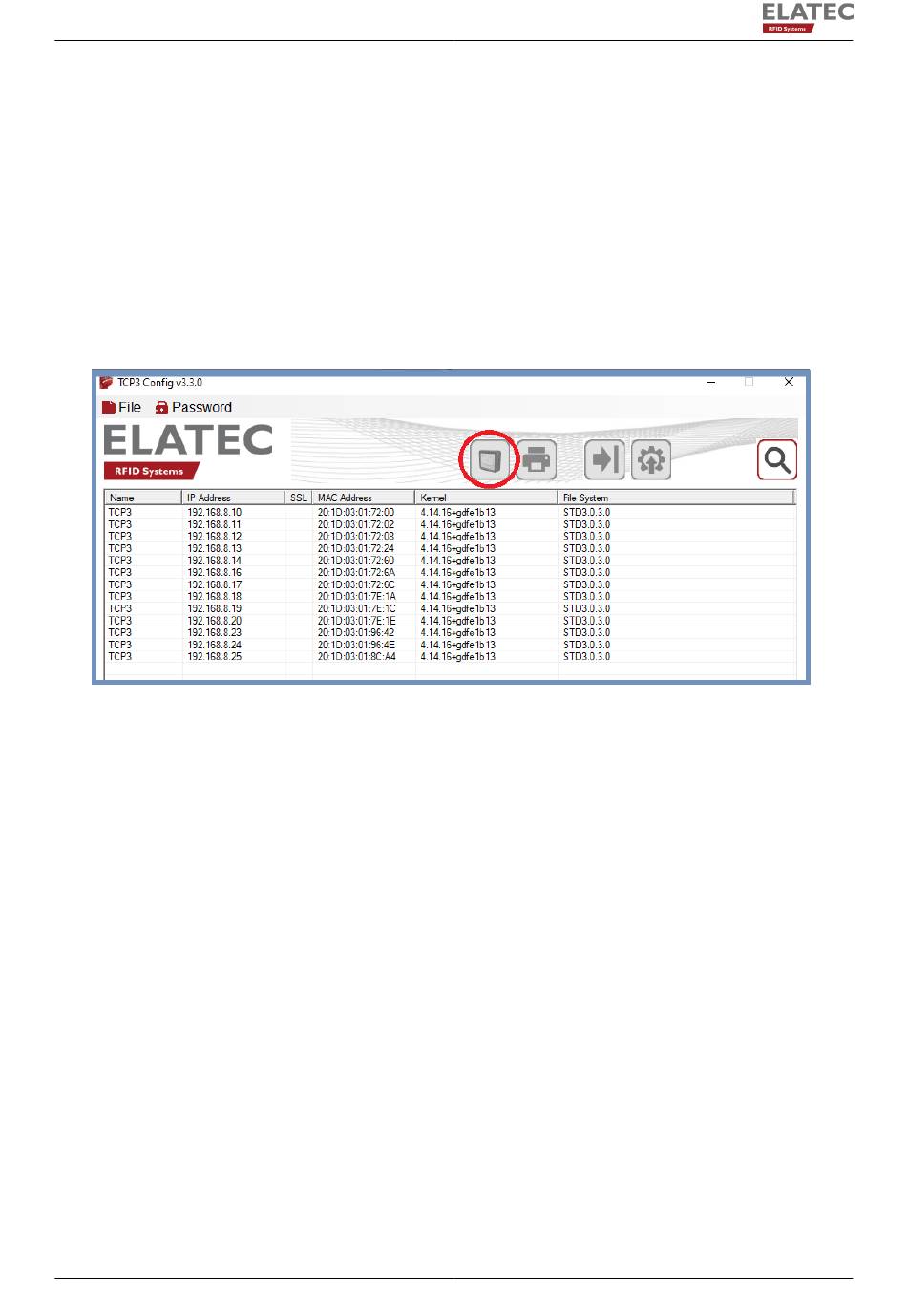

Figure 6.1.: Visit the homepage of the selected TCP3
Once a TCP3 has been selected from the list clicking on "Open the Homepage of the TCP3" or typing the
<ip of a TCP3>:81 in the web browser, will launch the homepage of the TCP3. Note if HTTPS is enabled
instead of using port 81 the port now changes to 442.
If prompted, enter the user name and password. The default user name is "admin" (lower-case, without
quotation marks). The default password is the last 8 numbers in the Host MAC address which is printed on
the back of TCP3. For example if the Host MAC address is 20:1D:03:01:7E:1C, you would enter 03017E1C
as the password. Note that the password is case sensitive and must be entered as upper case.
Once the password has been entered a user may change the factory password to something easier to
remember. There are currently no constraints on minimum password length or password complexity
Once the user finishes configuring TCP3, they need to select "Reboot" which is visible from any web
page.
When the Homepage page opens one can navigate to the set-up pages for Network, USB, Password,
System or Status. Context sensitive Help is also available for each screen.
The web page view into the converter addresses many of the same configuration items addressed in
section 5. As a result the descriptions for these settings will be almost identical to the descriptions in
section 5.
