4. Discovering TCP3 Devices on the network

4. Discovering TCP3 Devices on the network

4.1. Prerequirements

1. Download the TCP3 AdminPack from the Elatec website Download Center. The contents of the
AdminPack are shown in Figure 4.1. It contains the TCP3 firmware, this Technical Manual, the
installer for the TC3 Configuration application and several sample subnet search files.
http://www.elatec.com/support-center/downloads/.
2. Unzip the AdminPack then run the TCP3 Config installer by double clicking on Setup.exe. This will
install the TCP3 Config tool on a PC.
3. Devices must be on the same subnet as the PC operating the TCP3 Config discovery tool. Devices
on a different subnet can be discovered with additional steps addressed in section 4.3 which follows.
4.2. Start TCP3 Config
TCP3 Config is a tool which can be utilized to discover all of the TCP3 devices connected to the network.
It can also read the configuration of the selected converter, enable editing of that configuration and can

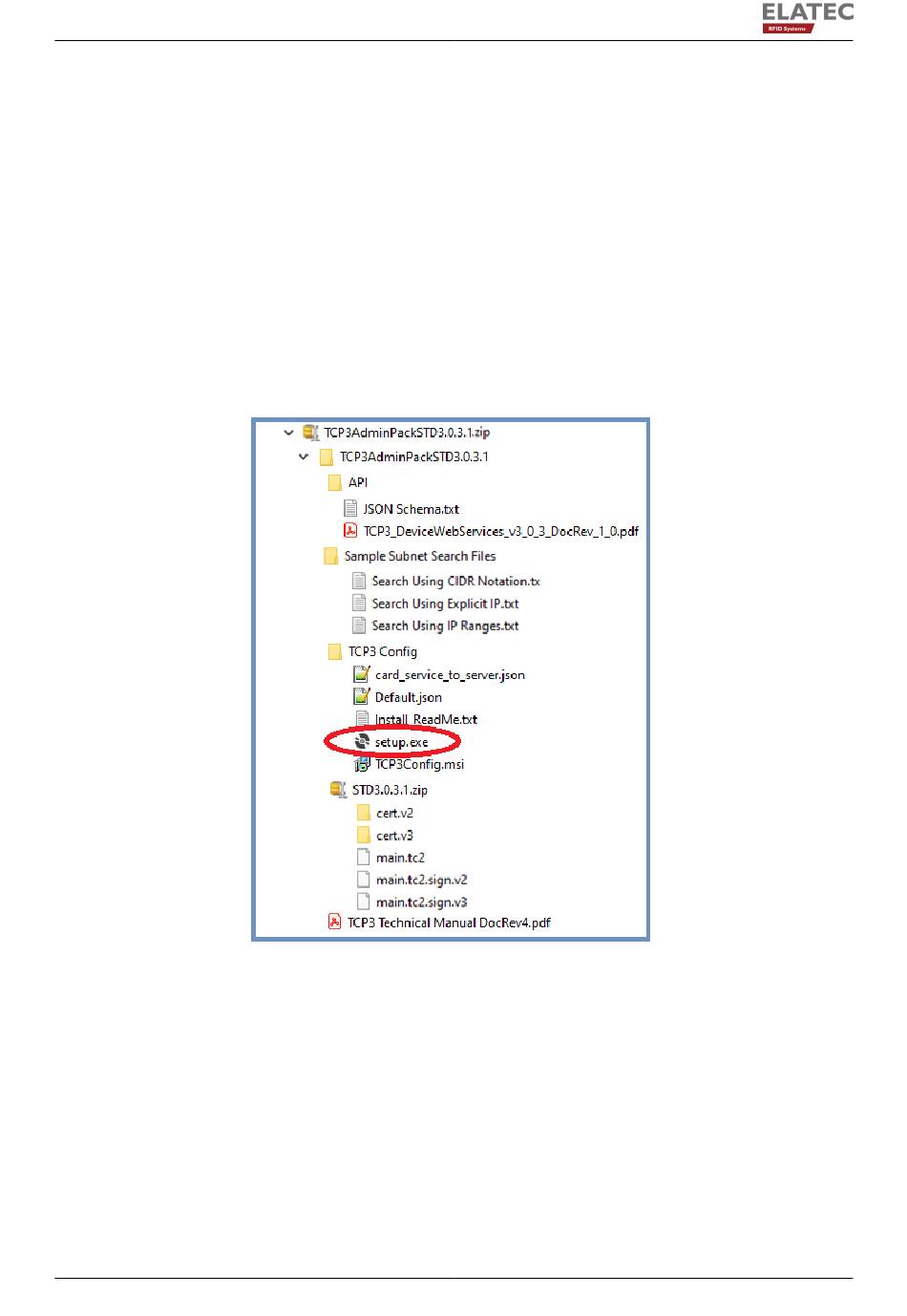

Figure 4.1.: Admin Pack Contents
Page 13 of 61
