3. Hardware Setup

3.7. Input Button

TCP3 is equipped with an input button which is located next to the USB ports. This button can be used
to activate additional functions. When the input button is held, the Busy LED will blink at a rate of once
per second. Hold the button and release it after a particular number of blinks to activate the associated
function
• 3 blinks will print a TCP3 configuration page to the attached printer.
• 8 blinks will reset the TCP3 configuration to factory defaults and will force a reboot. Note this will not
reset the password. That can only be done by reloading firmware.

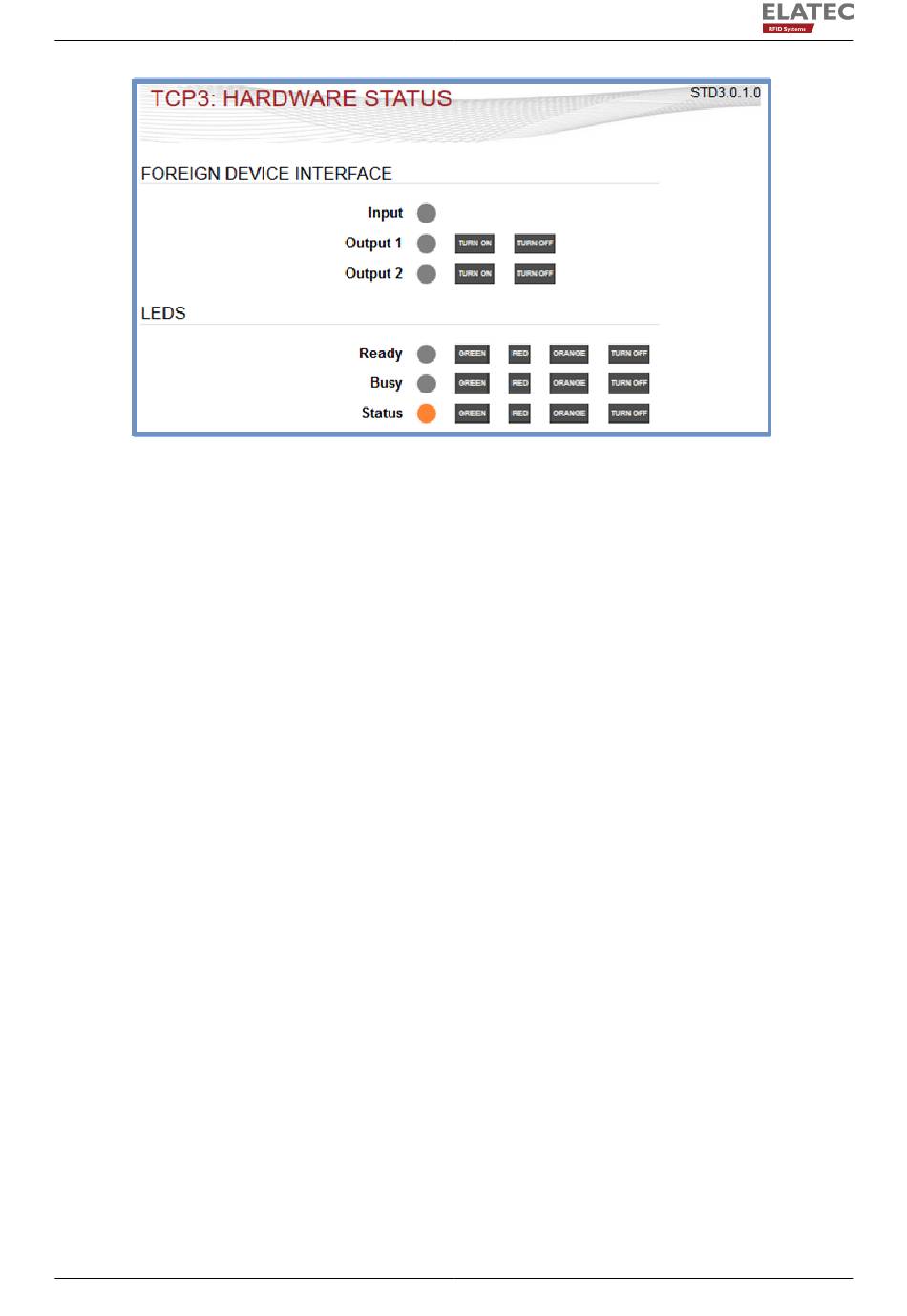

Figure 3.3.: Hardware Status
