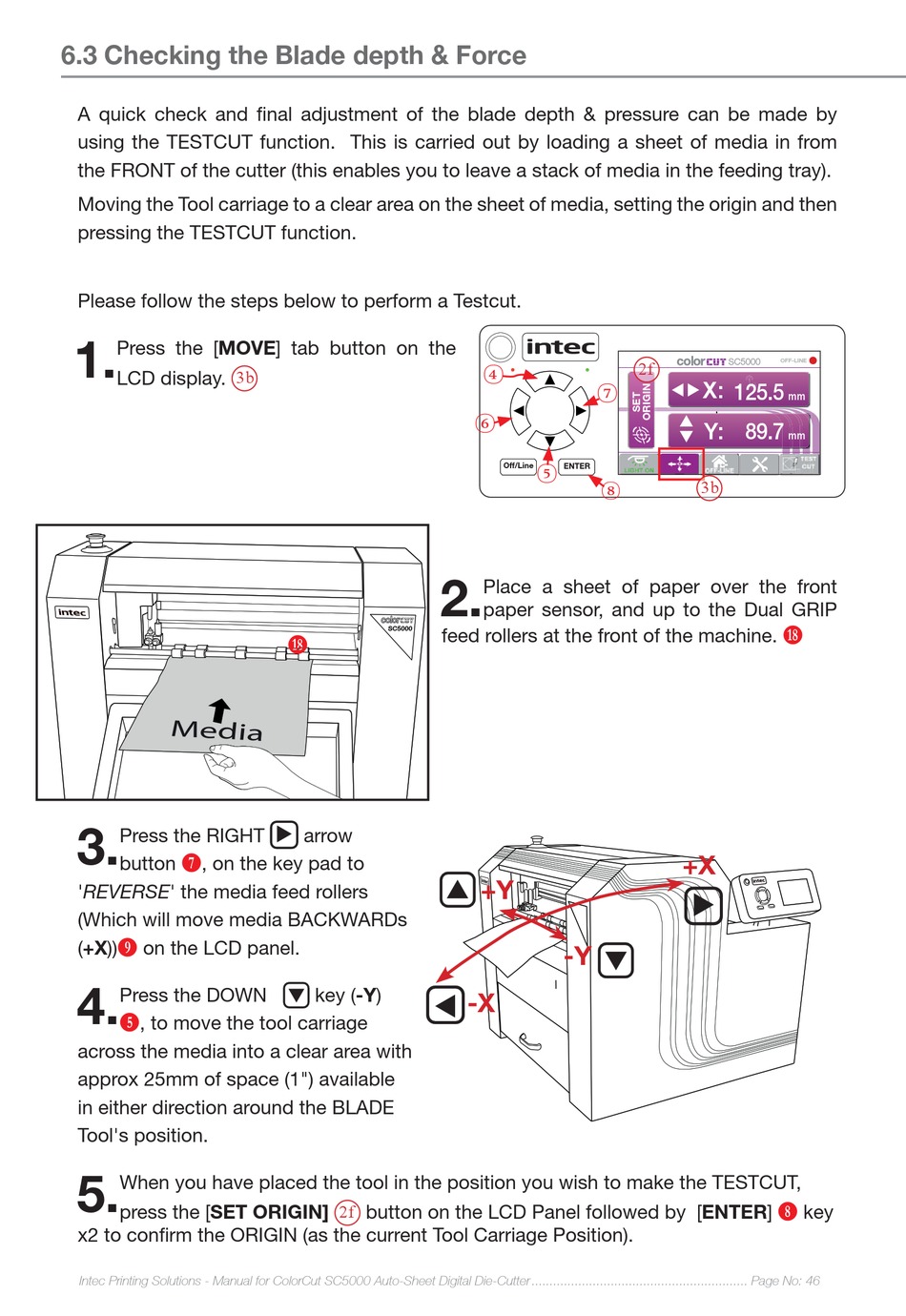

6.3 Checking the Blade depth & Force
A quick check and fi nal adjustment of the blade depth & pressure can be made by
using the TESTCUT function. This is carried out by loading a sheet of media in from
the FRONT of the cutter (this enables you to leave a stack of media in the feeding tray).
Moving the Tool carriage to a clear area on the sheet of media, setting the origin and then
pressing the TESTCUT function.
Please follow the steps below to perform a Testcut.
1. Press the [MOVE] tab button on the
LCD display.
3. Press the RIGHT
H
button , on the key pad to
'REVERSE' the media feed rollers
(Which will move media BACKWARDs
J
(+X)) on the LCD panel.
4. Press the DOWN
F
, to move the tool carriage
across the media into a clear area with
approx 25mm of space (1") available
in either direction around the BLADE
Tool's position.
5. When you have placed the tool in the position you wish to make the TESTCUT,
press the [SET ORIGIN]
x2 to confi rm the ORIGIN (as the current Tool Carriage Position).
Intec Printing Solutions - Manual for ColorCut SC5000 Auto-Sheet Digital Die-Cutter ............................................................ Page No: 46
3b
S
arrow
key (-Y)
2f
button on the LCD Panel followed by [ENTER]
④
⑦
⑥
Off/Line
ENTER
⑤
⑧
2.
Place a sheet of paper over the front
paper sensor, and up to the Dual GRIP
feed rollers at the front of the machine.
+Y
-Y
-X
2f SC5000 OFF-LINE
X: 125.5
mm
B
Y:
89.7
mm
3b
S
+X
I
key
