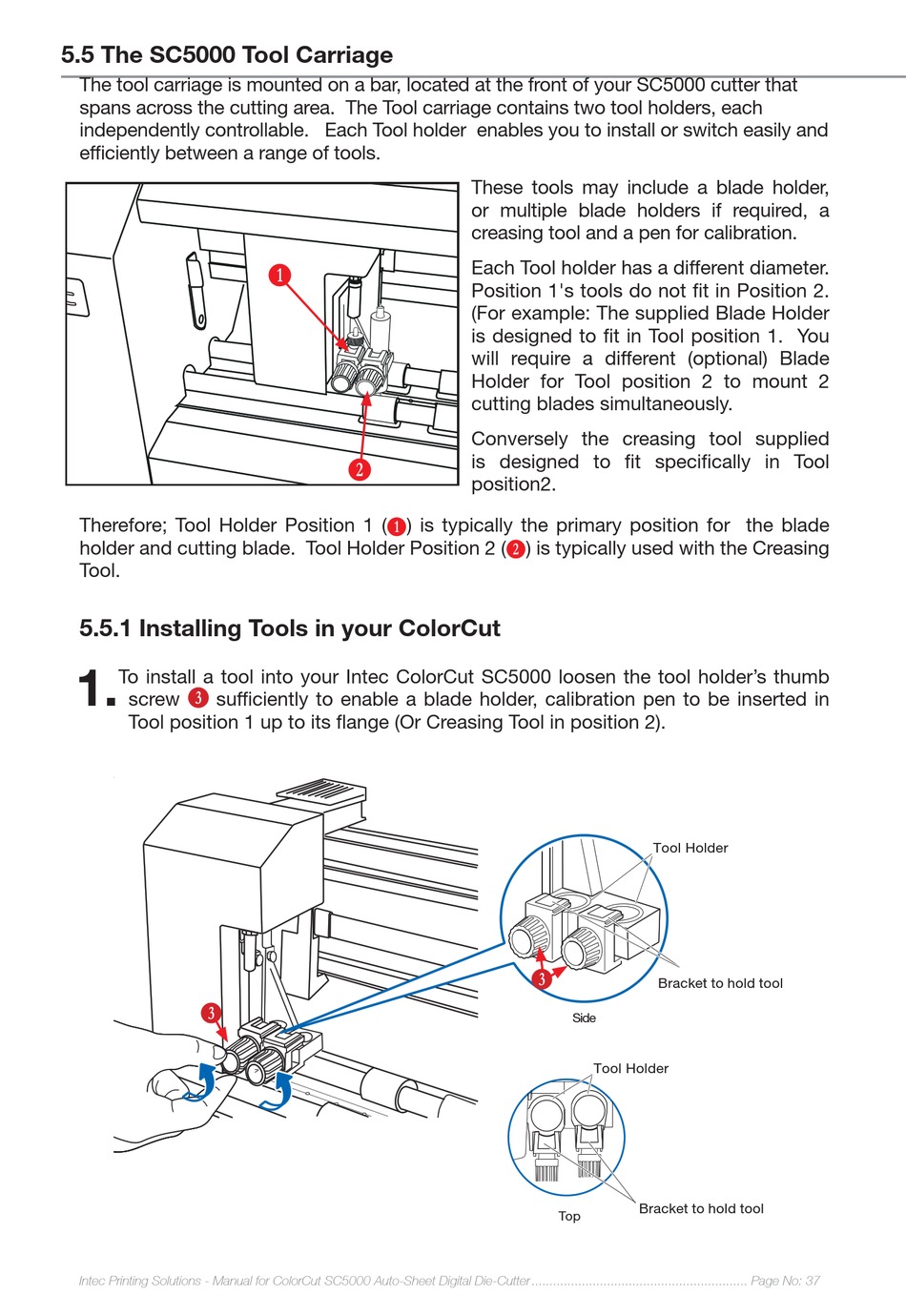

5.5 The SC5000 Tool Carriage

The tool carriage is mounted on a bar, located at the front of your SC5000 cutter that
spans across the cutting area. The Tool carriage contains two tool holders, each
independently controllable. Each Tool holder enables you to install or switch easily and
effi ciently between a range of tools.
Therefore; Tool Holder Position 1 (
holder and cutting blade. Tool Holder Position 2 (
Tool.

5.5.1 Installing Tools in your ColorCut

1.
To install a tool into your Intec ColorCut SC5000 loosen the tool holder's thumb
D
screw
suffi ciently to enable a blade holder, calibration pen to be inserted in
Tool position 1 up to its fl ange (Or Creasing Tool in position 2).
D
Intec Printing Solutions - Manual for ColorCut SC5000 Auto-Sheet Digital Die-Cutter ............................................................ Page No: 37
B
C
B
) is typically the primary position for the blade
These tools may include a blade holder,
or multiple blade holders if required, a
creasing tool and a pen for calibration.
Each Tool holder has a different diameter.
Position 1's tools do not fi t in Position 2.
(For example: The supplied Blade Holder
is designed to fi t in Tool position 1. You
will require a different (optional) Blade
Holder for Tool position 2 to mount 2
cutting blades simultaneously.
Conversely the creasing tool supplied
is designed to fi t specifi cally in Tool
position2.
C
) is typically used with the Creasing
D
Side
Tool Holder
Bracket to hold tool
Top
Tool Holder
Bracket to hold tool
