M1 – M3 Display units

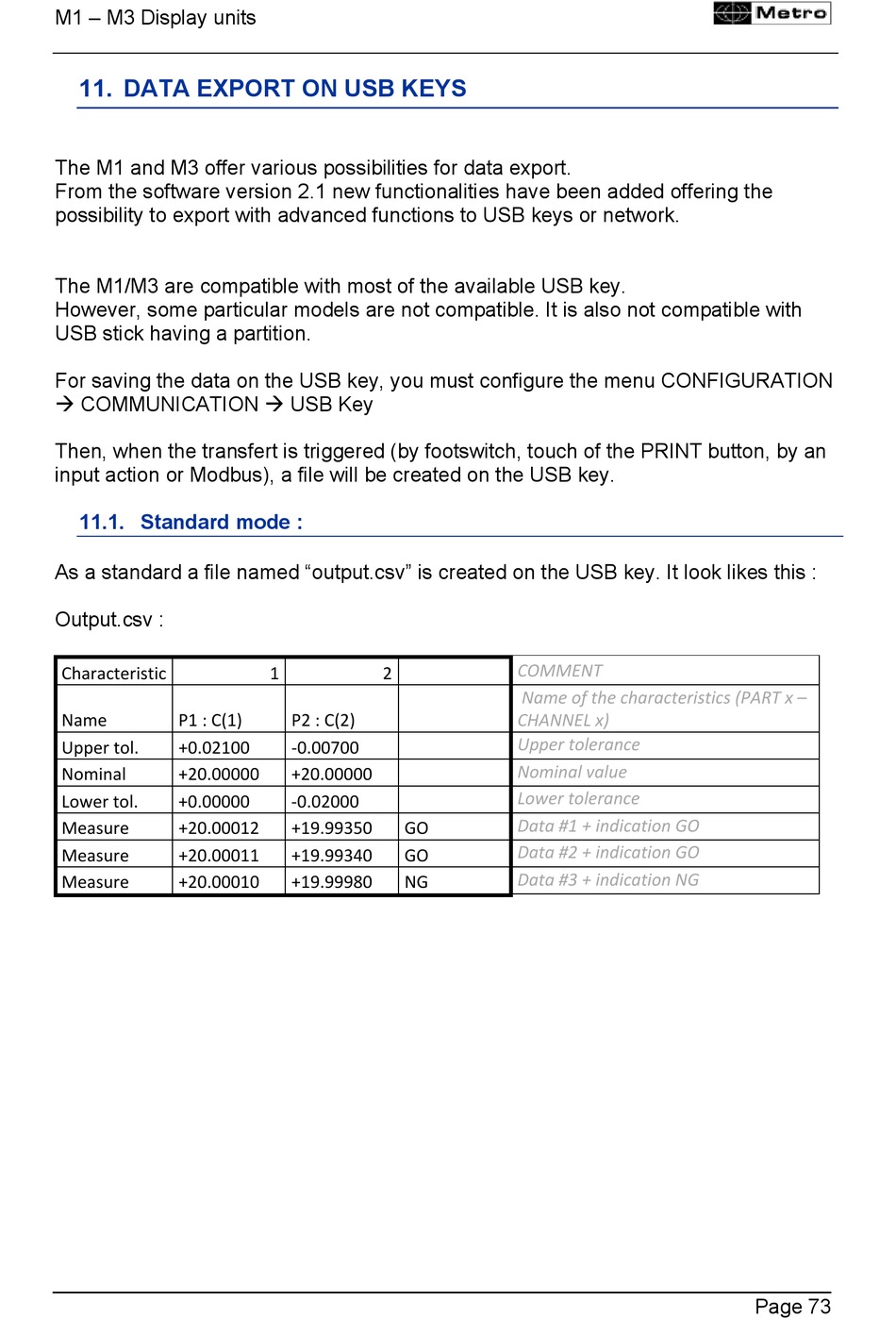

11. DATA EXPORT ON USB KEYS

The M1 and M3 offer various possibilities for data export.
From the software version 2.1 new functionalities have been added offering the
possibility to export with advanced functions to USB keys or network.
The M1/M3 are compatible with most of the available USB key.
However, some particular models are not compatible. It is also not compatible with
USB stick having a partition.
For saving the data on the USB key, you must configure the menu CONFIGURATION
 COMMUNICATION  USB Key
Then, when the transfert is triggered (by footswitch, touch of the PRINT button, by an
input action or Modbus), a file will be created on the USB key.

11.1. Standard mode :

As a standard a file named "output.csv" is created on the USB key. It look likes this :
Output.csv :
Characteristic
Name P1 : C(1)
Upper tol. +0.02100
Nominal +20.00000
Lower tol. +0.00000
Measure +20.00012
Measure +20.00011
Measure +20.00010
1 2
P2 : C(2)
‐0.00700
+20.00000
‐0.02000
+19.99350 GO
+19.99340 GO
+19.99980 NG
COMMENT
Name of the characteristics (PART x –
CHANNEL x)
Upper tolerance
Nominal value
Lower tolerance
Data #1 + indication GO
Data #2 + indication GO
Data #3 + indication NG
Page 73
