8.
The M3 starts on this screen.

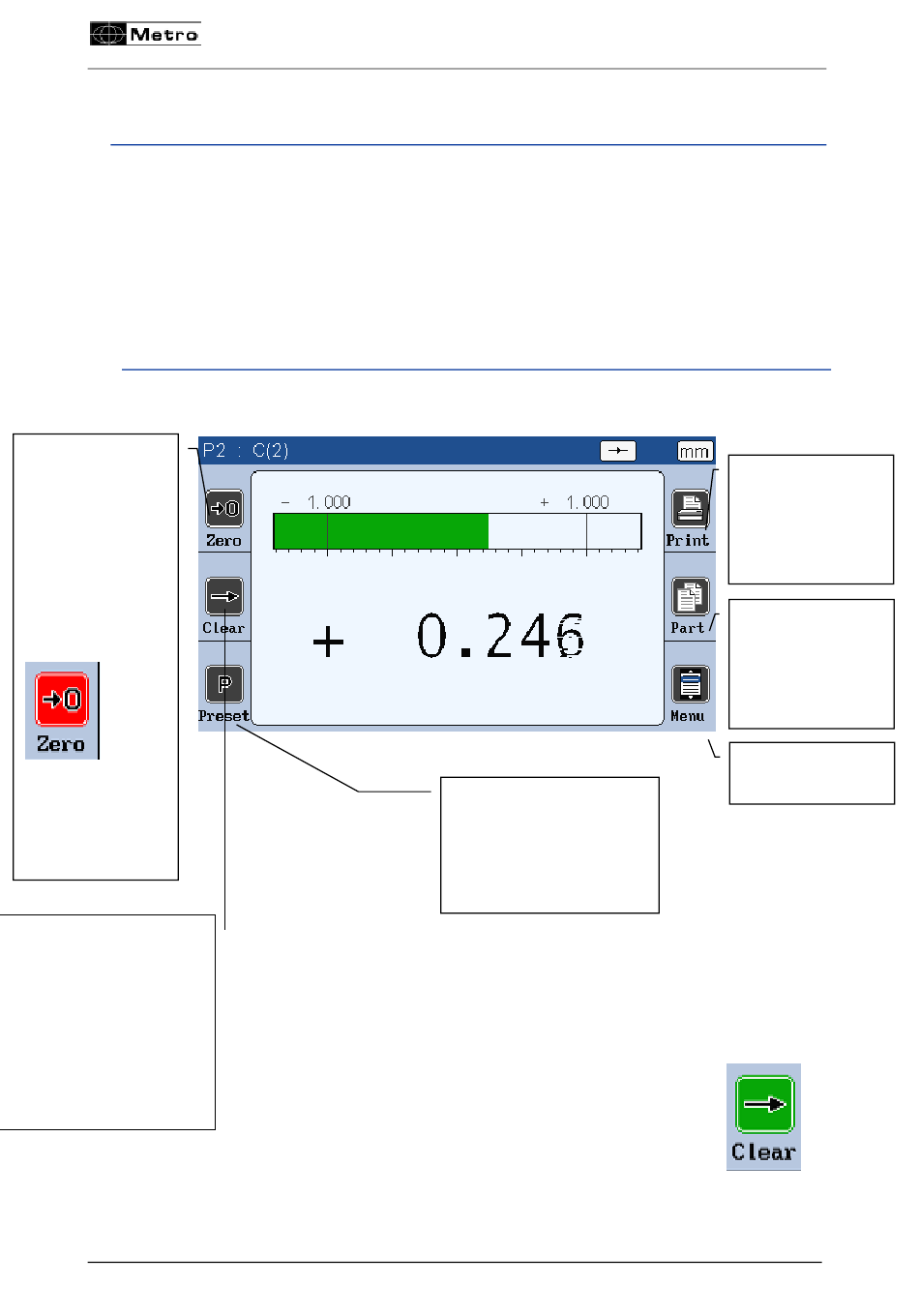

The measuring screen allows seeing the characteristics of the part that has to be
controlled. A needle/bargraph indicator allows seeing the characteristic in function of
the tolerance of the part (see chap. 4.1 for tolerances modification).
8.1.

LATERAL BUTTON FUNCTIONS

Absolute or
relative mode
(allows to make
a « zéro » at a
defined position.
If the relative
mode is
selected, the
button become
red
To come back
to the absolute
mode, press on
the « clear »
button
Start dynamic
measurement (Min,
Max...) clear the zero
function
This icon can become
yellow in case of a
hold function (refer to
3.3.9, the footswitch
connector)
When they are pushed, the button becomes green for one second:
Page 60

MEASURING SCREEN

M1 – M3 Display units
Calibration/Preset.
After pressing this
button, the displayed
value will take the
master value.
Measurement
transfert
(RS232 or USB
or USB stick)
Change
manually the
active part (part
1 or part 2)
Go to the icon
desktop
