7.4.

CONFIGURATION

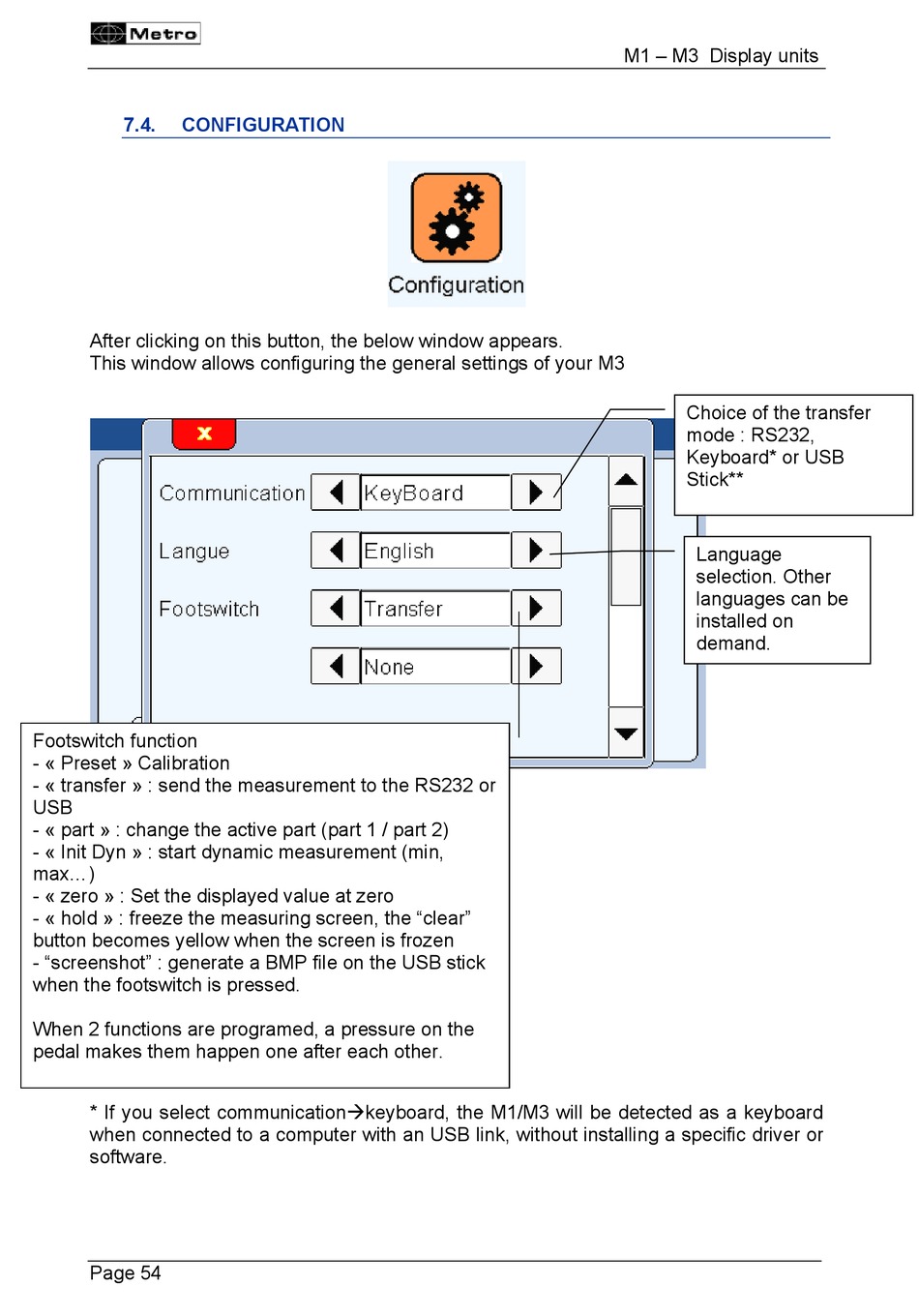

After clicking on this button, the below window appears.
This window allows configuring the general settings of your M3
Footswitch function
- « Preset » Calibration
- « transfer » : send the measurement to the RS232 or
USB
- « part » : change the active part (part 1 / part 2)
- « Init Dyn » : start dynamic measurement (min,
max...)
- « zero » : Set the displayed value at zero
- « hold » : freeze the measuring screen, the "clear"
button becomes yellow when the screen is frozen
- "screenshot" : generate a BMP file on the USB stick
when the footswitch is pressed.
When 2 functions are programed, a pressure on the
pedal makes them happen one after each other.
* If you select communicationkeyboard, the M1/M3 will be detected as a keyboard
when connected to a computer with an USB link, without installing a specific driver or
software.
Page 54
M1 – M3 Display units
Choice of the transfer
mode : RS232,
Keyboard* or USB
Stick**
Language
selection. Other
languages can be
installed on
demand.
