M3
Reset the M3
Factory reset
Gives a
manufacturing order
number

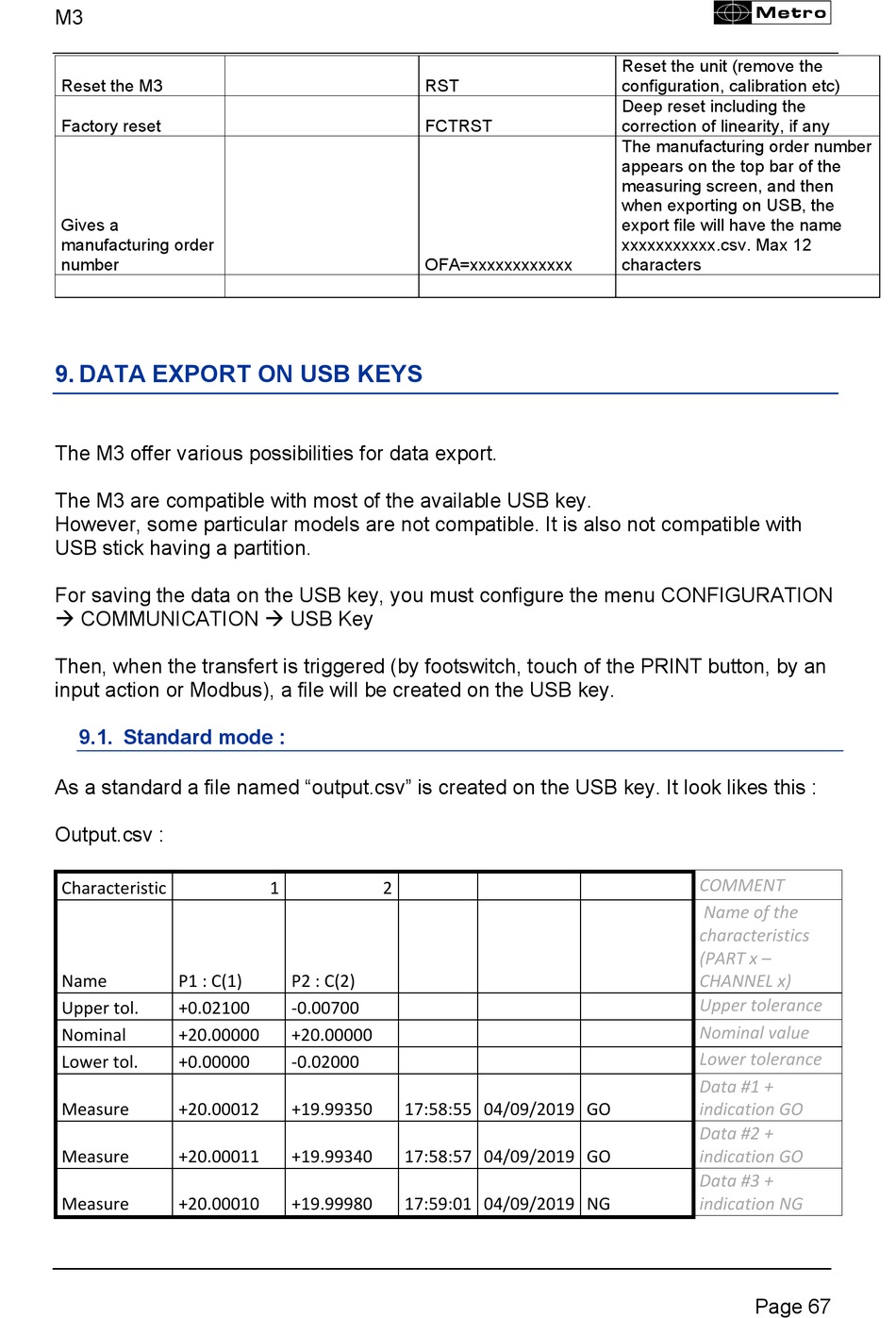

9. DATA EXPORT ON USB KEYS

The M3 offer various possibilities for data export.
The M3 are compatible with most of the available USB key.
However, some particular models are not compatible. It is also not compatible with
USB stick having a partition.
For saving the data on the USB key, you must configure the menu CONFIGURATION
 COMMUNICATION  USB Key
Then, when the transfert is triggered (by footswitch, touch of the PRINT button, by an
input action or Modbus), a file will be created on the USB key.

9.1. Standard mode :

As a standard a file named "output.csv" is created on the USB key. It look likes this :
Output.csv :
Characteristic
Name P1 : C(1)
Upper tol. +0.02100
Nominal +20.00000
Lower tol. +0.00000
Measure +20.00012
Measure +20.00011
Measure +20.00010
RST
FCTRST
OFA=xxxxxxxxxxxx
2
1
P2 : C(2)
‐0.00700
+20.00000
‐0.02000
+19.99350 17:58:55 04/09/2019 GO
+19.99340 17:58:57 04/09/2019 GO
+19.99980 17:59:01 04/09/2019 NG
Reset the unit (remove the
configuration, calibration etc)
Deep reset including the
correction of linearity, if any
The manufacturing order number
appears on the top bar of the
measuring screen, and then
when exporting on USB, the
export file will have the name
xxxxxxxxxxx.csv. Max 12
characters
COMMENT
Name of the
characteristics
(PART x –
CHANNEL x)
Upper tolerance
Nominal value
Lower tolerance
Data #1 +
indication GO
Data #2 +
indication GO
Data #3 +
indication NG
