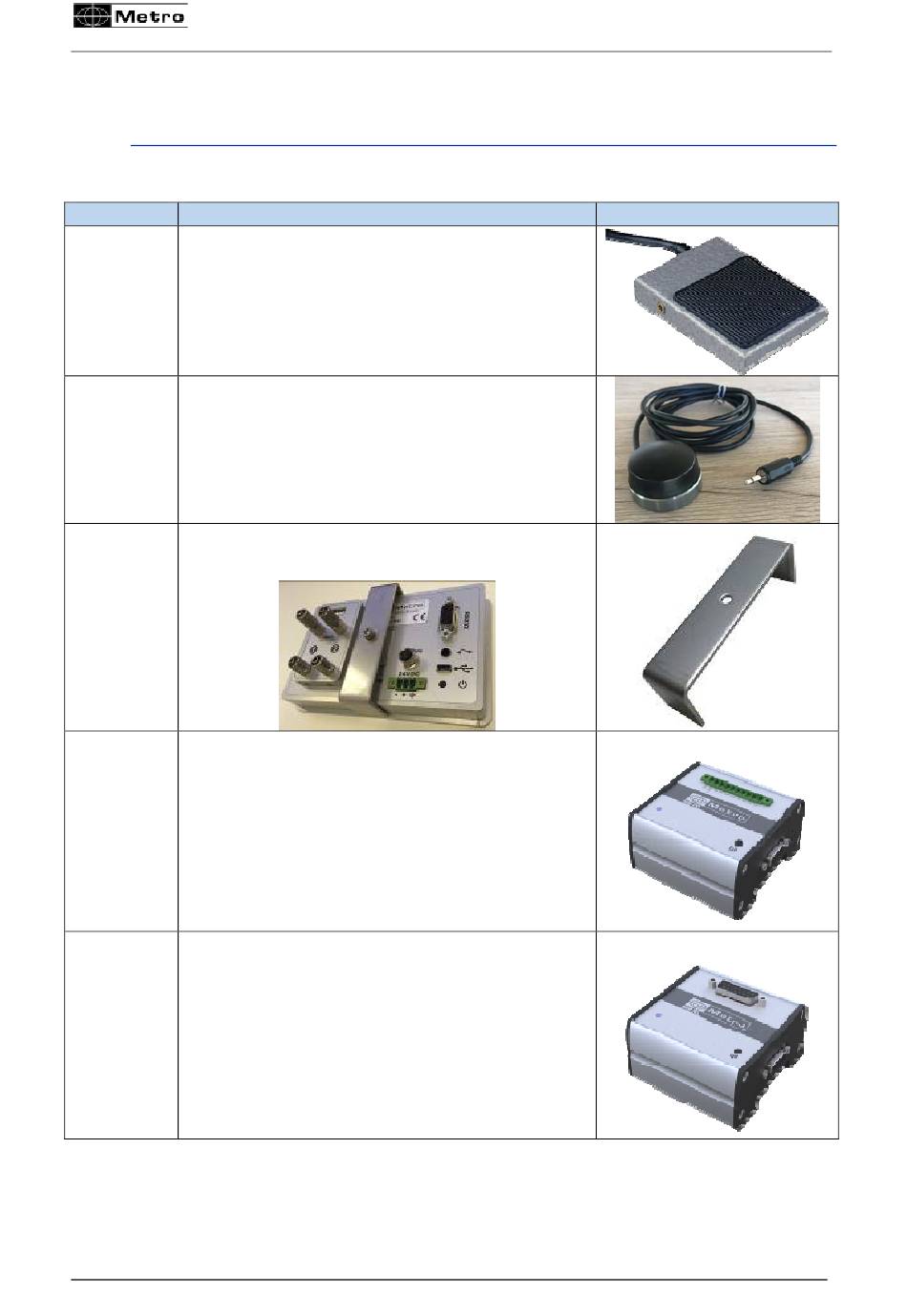

3.3.5. Options / cables

Reference Description
18020 Footswitch :
This footswitch with a robust construction can be
configured in different ways: preset, measurement
transmission, start dynamic measurement etc...
Handswitch
18022
This footswitch with a robust construction can be
configured in different ways: preset, measurement
transmission, start dynamic measurement etc...
ACS-AFF- Accessory for panel mounting.
To be installed instead of the stand.
001
MB-IO This M-Bus module is fitted with 8 input/outputs
isolated with optocouplers allowing to get additional
functionalities, for example: output for Go/noGo, input
for preset or start dynamic measurement... The M-Bus
modules are mounted on an aluminum profile allowing
to mount them on a standard DIN rail.
Up to 4 modules can be mounted
MB-RL The optional MB-RL module is fitted with 2
independent relays min and max, free of potential that
indicate the position of the measure according to the
part tolerances. The module is also fitted with 6 inputs
allowing
To remote control the display.
This MB-RL module is wired exactly like the #24136
optional board for Monocote displays. It allows then to
replace a Monocote by a M3 without changing the
machine wiring.
