7.1.3. Part 3 - class

This screen allows to set up a sorting of the part according to their size. Up to 16
class can be programed
The class has an important utility, because it allows the user to sort the parts
according to their position in the tolerance interval. The top bar of the display, which is
normally blue is grey on the picture bellow, because grey is the color which was
defined for this interval of measurement.

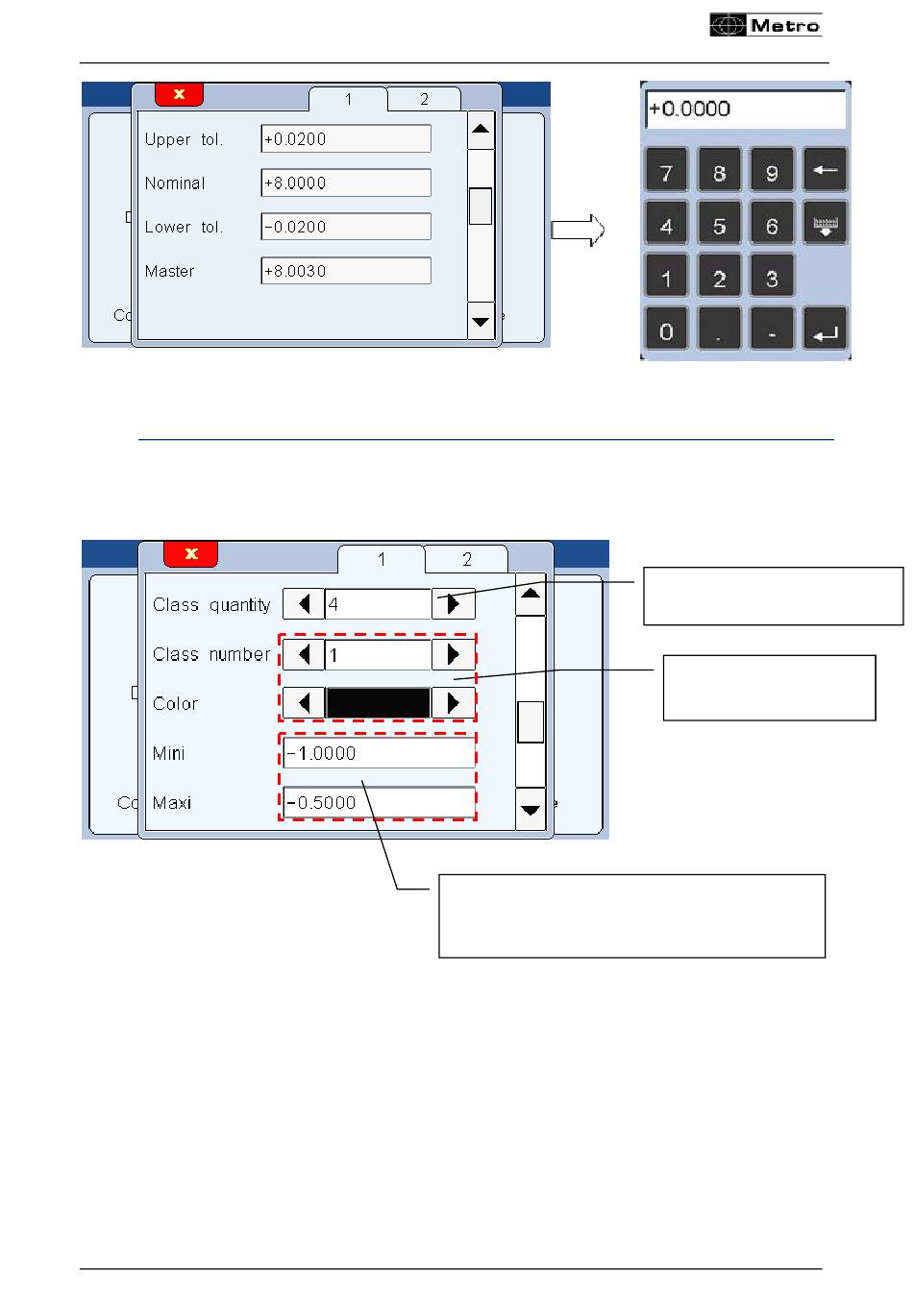

The limit defined for each class are
selected by default but they can be
changed by the user
Choice of the number of
class
Choice of the color
for each class
