Resolution
000.000 = micron
00.0000 = 0.1 micron
Unit
mm : millimeters
In : inches
Um = Microns
Deg = decimal degrees (automatic choice when the formula is set as Taper)
DMS = Degrees / Minutes / Seconds
Mode
Static = direct reading: The display is refreshed together with the probe is moving.
Dynamic : The following mode starts after pressing on the "clear" button of the
measuring screen. (or through a I/O or footswitch command )
Max
Min
Max-Min
Average
Median = (max+min)/2

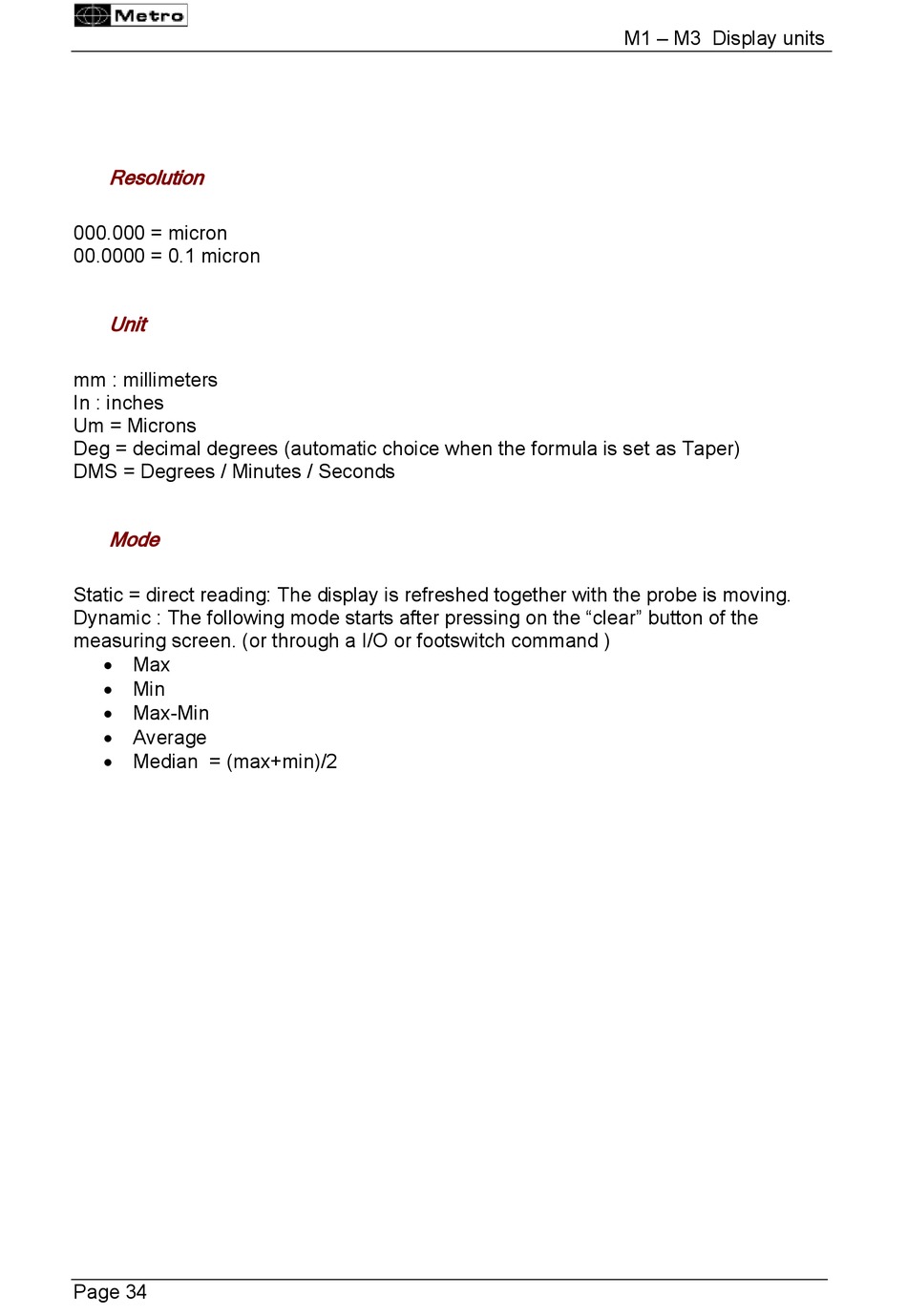

Page 34
M1 – M3 Display units
