M1 – M3 Display units

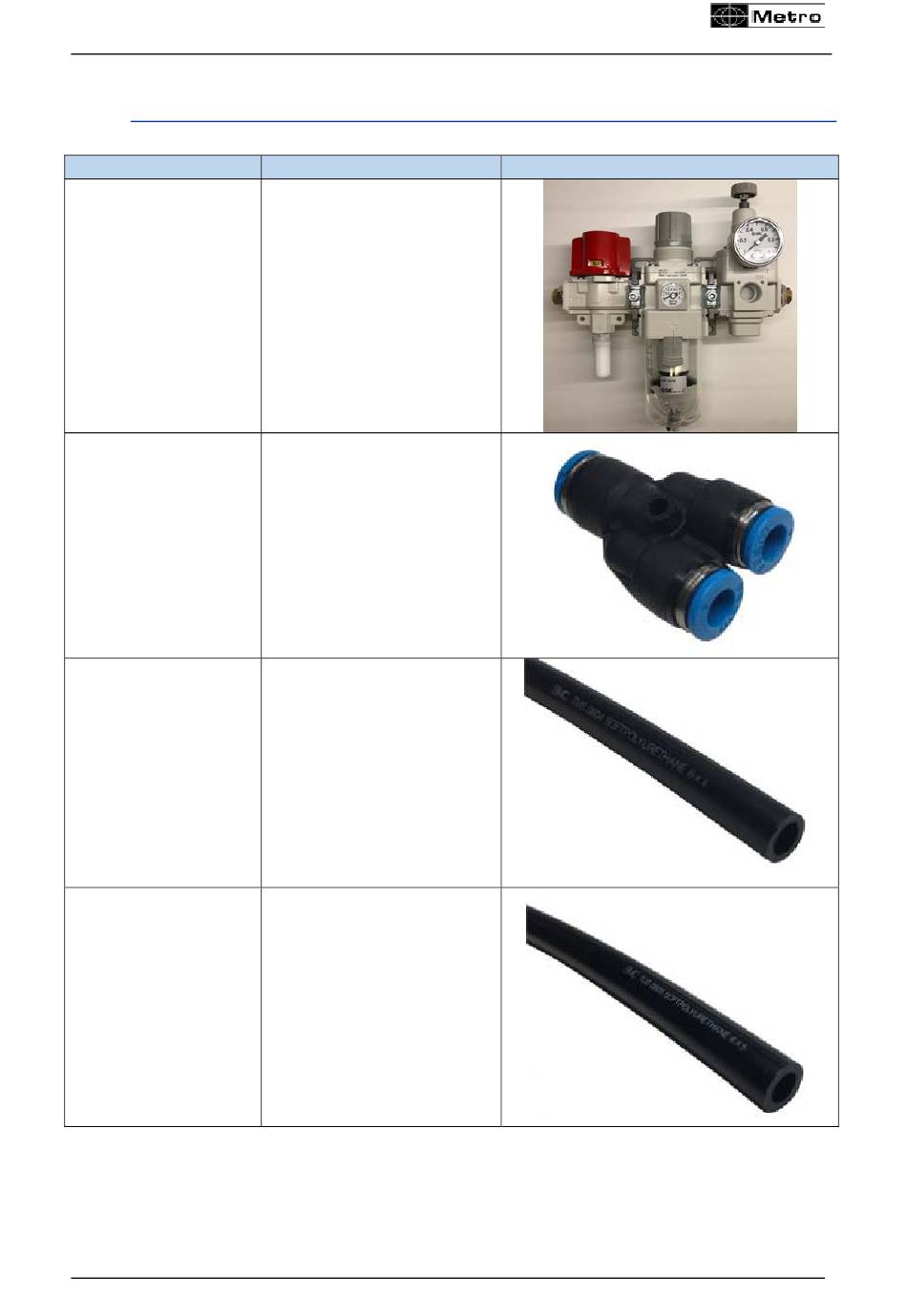

3.3.4. Accessories

Reference
ACS-PNE-003
ACS-PNE-008
ACS-PNE-006
ACS-PNE-007
Description
Air preparation unit :
It is mandatory to use a
precision regulation system,
otherwise the measurements
will not be stable.
We can supply the adapted
air preparation unit from SMC,
including stop valve, filter and
regulator + precision
regulator.
The precision regulator must
be adjusted at 3 BARS
(0.3MPa)
For M3 displays.
It allows to divide the 8mm
tube at the output of the air
preparation unit into 2 tubes
of 6 mm adapted for the
connection on the M3 input.
Soft polyurethane tubes
6*4mm :
The M1 / M3 are fitted with 2
connectors for air tube with
6mm external diameter and
4mm internal diameter.
We advise to use soft
polyurethane tubes from
SMC, because their flexibility
prevent the display to knock
over due to the pressure of
the tubes on the table.
Soft polyurethane tubes
8*5mm :
The air preparation unit is
fitted with a connexion for
8mm tubes (external
diameter)
Page 11
