1) PWM trigger mode also needs to set threshold time T, range 0<T
<20ms ,PWM signal frequency range: 50 Hz-400Hz;
2) Confirm and save;
3) The external trigger function of the camera can be checked by
setting the external trigger source.

3.3.5 Cascade trigger

Cascade trigger is mainly used for synchronous shooting of 2 or
more multispectral cameras. The camera is divided into two parts,
master camera and slave cameras, The PWM_OUT pin of the main camera
is connected to the PWM_IN pin of the slave camera, See 6.2.1 camera
interface for details; The main camera sets the shooting mode

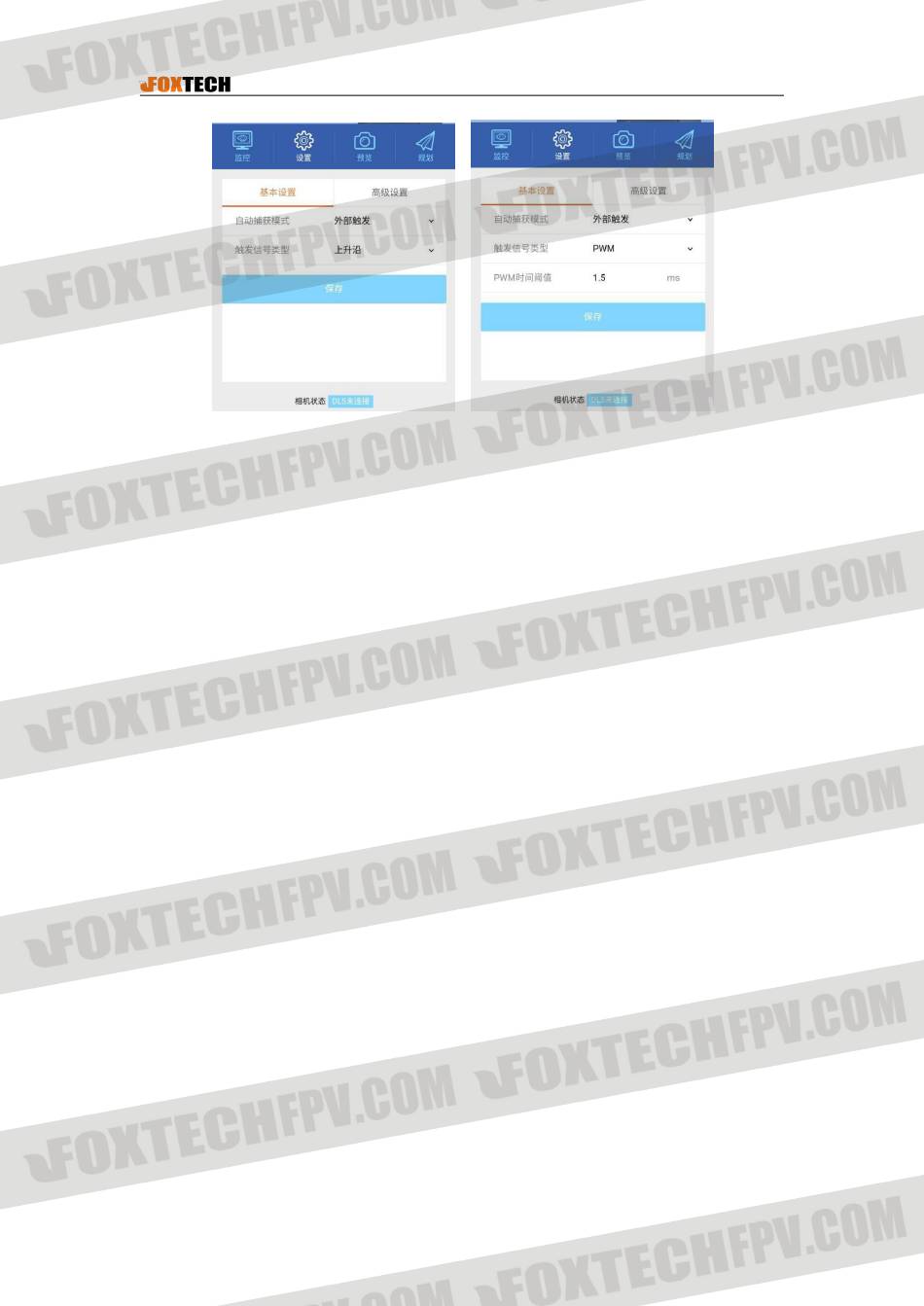

according to the normal process, slave cameras set to external
trigger mode (signal type: PWM, temporal threshold:1.5 ms).After the
setting is completed, the flight mission will be executed. The master
camera will trigger
synchronously when shooting. The event interval between the master
and slave cameras is less than 1ms.

3.3.6 Manual exposure

Check the manual exposure option in each trigger mode, you can adjust the
exposure time and gain corresponding to each channel uniformly or
independently on the preview page. See 3.4.3 for details.

3.3.7 Advanced settings

The advanced settings menu includes image storage format, channel
MS600V2 Universal Multi-Spectral
Camera User's Manual
all the slave cameras
11
to take pictures
