- Page 1 U s e r m a n u a l Seeker-10 360TR...
-
Page 2: Table Of Contents
Content High Precision Gimbal 1、Introduction…………………………………………………………………………2 2、Target Tracking…………………………………………………………………2 3、 G i m b a l D i a g r a m … … … … … … … … … … … … … … … … … … … … … … …3 4、Packing List…………………………………………………………………………4 5、Dimensional Drawing………………………………………………………4 6、Installation………………………………………………………………………5... -
Page 3: 1、Introduction

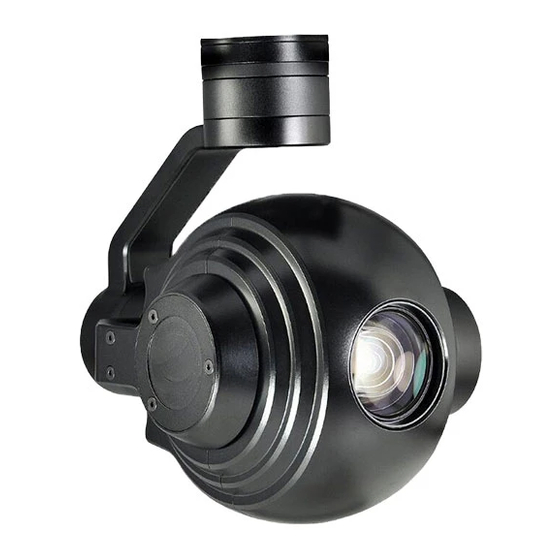

Gimbal Camera Introduction FOXTECH Seeker-10 360TR is a 3-axis gimbal camera featuring 10X optical zoom, 360 degrees infinite rotation and object tracking.It supports Ethernet output, the video output resolution is 1080p/30fps,the effective pixels is 2.12MP. SEEKER-10 360TR 3-axis gimbal developed based on FOC technology, features excellent stability, accuracy and sensitivity.It has fast speed and... -
Page 4: 3、 G I M B A L D I A G R A M
Gimbal Diagram [1]Yaw axis motor [3]Pitch axis motor [2]Roll axis motor [4]HD Zoom Camera Please ensure that the motor is not blocked by anything during rotation. If the gimbal is blocked during rotation, please clear the obstruction immediately. -
Page 5: 4、Packing List
Packing List gimbal camera*1 pack of screw*1 M3*5mm*12 copper pillar*4 Damper*12 Dimensional Drawing... -
Page 6: 6、Installation
Installation M e c h a n i c a l & e l e c t r o n i c c h a r a c t e r i s t i c s Voltage 330mA@12v IDDQ 450mA@12V temperature -20~+80... -
Page 7: 9、Tracking Gimbal Signal Wiring Diagram
Tracking Gimbal Signal Wiring Diagram SD card: max 128G ,class10 FAT32 or exFAT format SD card: 最大支持128G 卡，class10 高速 卡 格式化为FAT32 or exFAT 格式 PWM in 5V output USER BOARD TTL 15200/8/1/N... - Page 8 S . b u s / R x : c o n n e c t t o R x 2 f o r t r a c k f u n c t i o n . ( S . b u s / R x Roll/ Tx:connect to Tx2 for track function.
- Page 9 Mode:change the speed / home position (调整云台控制速度/一键回中） 低位 高位 Position 3: Low speed mode,control Yaw and Pitch in this mode and then the gimbal will move at the lowest speed; Turn the knob to any position above position 3: change speed; at this time control Yaw and Pitch, gimbal control speed will be increased (The speed will change depending on the position of the switch)
- Page 10 Pic/Rec picture / start record stop record （ ， 拍照，开始录像，停止录像 ） Switch 2 to 1: start record / stop record.(从2 切到 1 ,开始录像，再切一次， 停 止录像） start record, the OSD display rec hh:mm:ss ; (录像开始后，会显 示录像时间） Stop record, the OSD display STBY. (录像停止后，显示STBY) Switch 2 to 3: take a picture .
-
Page 12: Gps Information Overlay&Serial Port Control Diagram
GPS information overlay&serial port control diagram TTL 3.3v UART baud: 115200/9600, 8/1/N, HEX RX1/ RX2 and TX1 / TX2 must be connected with jumper caps before connecting UART/FTDI devices. Please connect your RX to RX3, and TX to TX3 as shown in the figures. CAUTION!! 1) the signals inside red frame are all TTL signals, DO NOT connect PWM in...
